General Introduction

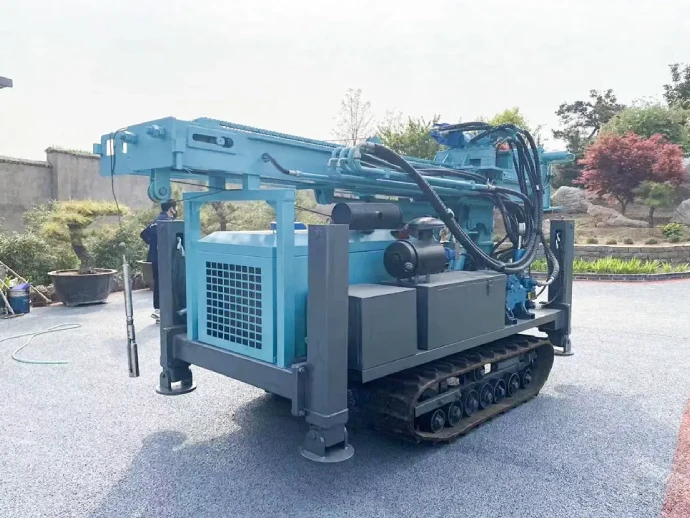

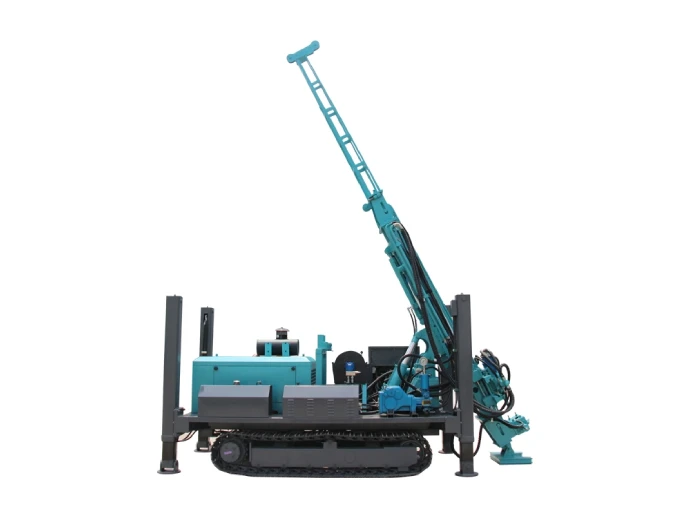

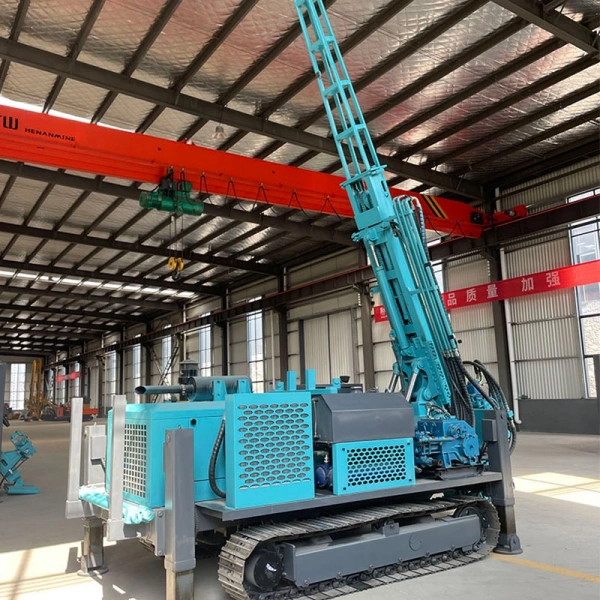

The HY-1000X full-hydraulic core drilling rig is our factory’s newly upgraded, high-performance geological drilling equipment with independent R&D and manufacturing. Firstly, it integrates mature advanced drilling technologies from domestic and international markets to deliver comprehensive structural and performance optimization for professional core drilling tasks. In particular, it uses a full-hydraulic driving system as the core power configuration; an axial plunger pump and inclined-axis plunger motor drive the drilling power head. Furthermore, dual mechanical gear sets and stepless speed regulation work together to build an advanced, scientific and reasonable overall structure for deep core drilling operations.

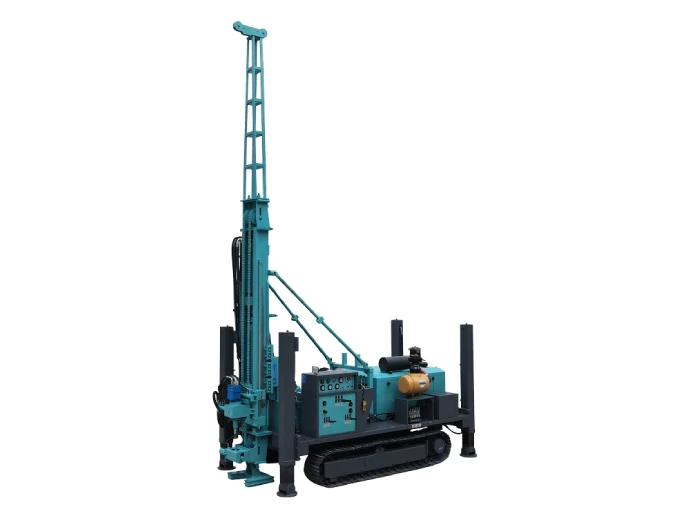

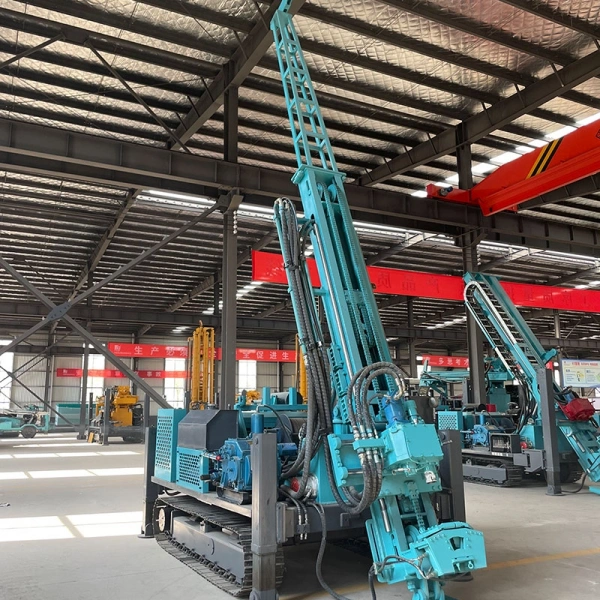

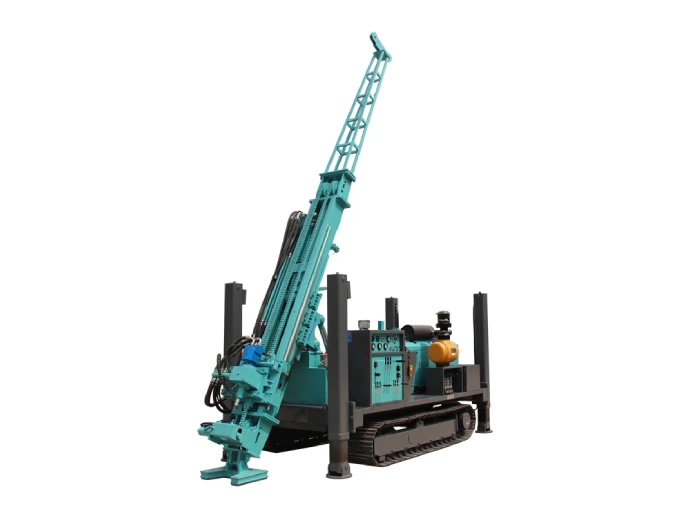

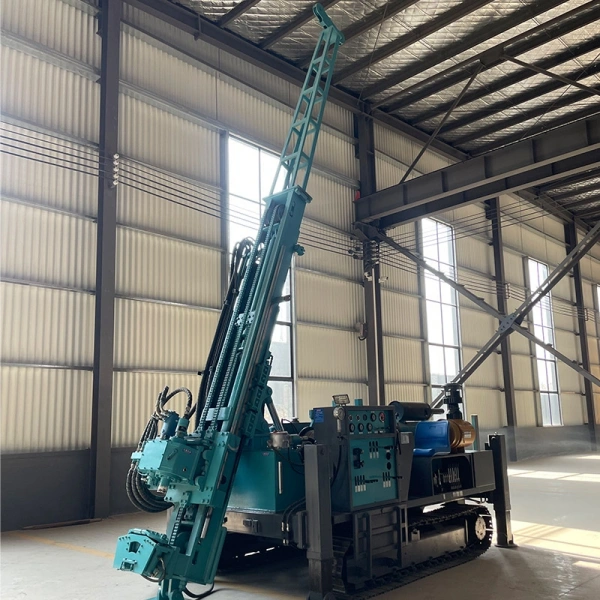

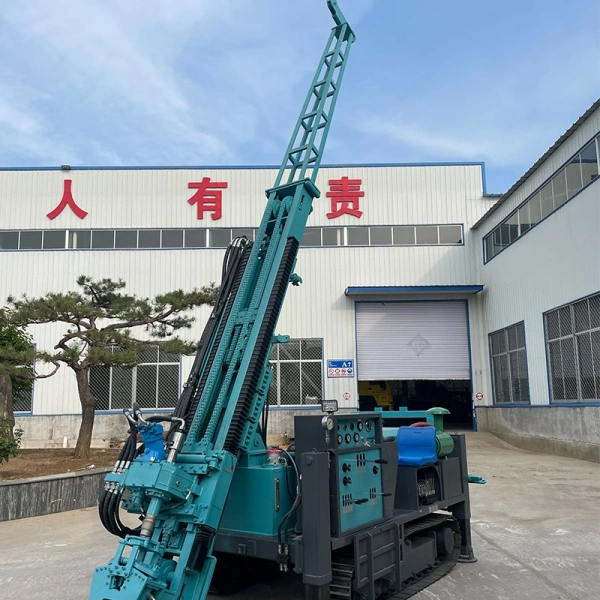

This HY-1000X core drilling rig carries a professional cylinder and chain double-speed feeding mechanism, thus maintaining ultra-stable and reliable feeding performance during long-distance core drilling operations. Additionally, it features a unique power head lateral translation device that greatly boosts construction flexibility and fits diverse complex drilling conditions. Besides that, the integrated drilling mast adopts an integral cylinder lifting and sliding structure, which supports adjustable multi-angle drilling from 0° to 90° and meets various geological exploration and rock core sampling needs.

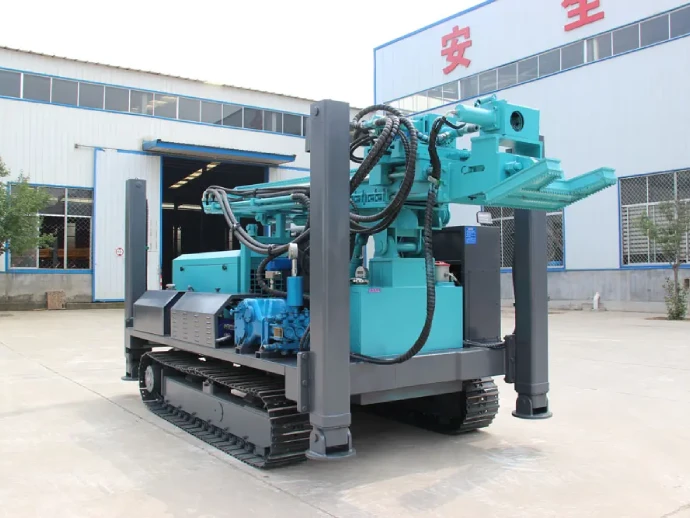

Meanwhile, intelligent load-sensing control technology empowers the entire hydraulic system of this full-hydraulic core drilling equipment to deliver high working efficiency, super-large rotary torque and stable power output. Notably, it comes standard with hydraulic chuck grippers, hydraulic leveling outriggers and a retractable drilling mast, so operators can complete fast on-site positioning, quick layout and high-efficiency drilling construction. Most importantly, it adopts a wireless remote control crawler walking system that adapts perfectly to various rugged and complex terrains. As a result, operators can control crawler movement remotely within a safe scope, effectively avoiding on-site hazards, lowering operational risks and maximizing overall drilling safety.
Application Scope
This core drilling rig is primarily applied to solid mineral core exploration. It also supports multiple construction scenarios, including engineering geological survey, shallow oil and natural gas exploration, and groundwater well drilling. In addition, it is suitable for tunnel ventilation hole drilling, drainage hole construction and dam grouting hole drilling projects.
Technical Parameters
| HY-1000X full hydraulic core drilling rig | |||||
| Working stratum | Loose soil layer and bed rock(hardness:F6~20) | ||||
| Drilling capacity | BTW (m) | 1400 | |||
| NTW (m) | 1200 | ||||
| HTW (m) | 1000 | ||||
| PQ(m) | 800 | ||||
| Hydraulic system | Rated pressure Mpa | 32+16 | |||
| Cooling way | secondary air cooling plus primary water cooling | ||||
| Power | Diesel engine model | Yuchai engine 6 cylinders 118KW | |||
| Rated power | 118KW | ||||
| Rated speed | 2300rpm | ||||
| Rotary head | Max torque | 2600N.m | |||
| Max rotary speed | 1400rpm | ||||
| Feeding stroke | 3.5m | ||||
| Through-hole diameter | 95mm | ||||
| Lifting force | 360KN | ||||
| Feeding force | 180KN | ||||
| Wireline hydraulic Winch capacity | Rope capacity | 1200m | |||
| Lifting force | 24KN | ||||
| Lifting speed | 110m/min | ||||
| Rope diameter | 8mm | ||||
| Mast | Full height | 7.9m | |||
| Drilling angle | 0-90° | ||||
| Slip Stroke | 1200mm | ||||
| Clamp (hydraulic) | through-hole 130mm | ||||
| Mud pump (hydraulic ) | Model | BW160/10 | |||
| type | Horizontal three cylinder reciprocating single acting piston pump | ||||
| Cylinder diameter | 70mm | ||||
| stroke | 70mm | ||||
| Pump speed (times/min) | 200 | 132 | 83 | 55 | |
| Flow (L/min) | 160 | 107 | 67 | 44 | |
| Pressure (Mpa | 2.5 | 4 | 6.5 | 10 | |
| Outlet pipe diameter | 32mm | ||||
| Inlet pipe diameter | 51mm | ||||
| Crawler chassis | Walking speed | 0~2km/h | |||
| Climbing angle | 25°-30° | ||||
| Dimension | Transport | 5600*2000*2400mm | |||
| Weight | 7300kg | ||||
key features:
1. Superb Drilling Capability & Hard Formation Adaptability
Equipped with an upgraded high-power hydraulic system, the HY-1000X core drilling rig supports a maximum drilling depth of 1000 meters and a peak working fluid pressure of 30MPa. Matched with a high-torque rotary drive system, the equipment outputs sustained and powerful drilling force, enabling efficient penetration and stable core sampling in hard rock layers, complex stratums, and harsh geological conditions. It effectively solves the problems of slow drilling speed and core breaking of traditional core drilling rigs, ensuring complete and accurate rock core acquisition for deep exploration projects.
2. Superior Structural Stability & Intelligent Safety Performance
Built with an integrated reinforced robust chassis, the HY-1000X geological core drilling rig delivers excellent overall stability during high-depth drilling operations, effectively reducing equipment shaking and deviation, and greatly improving drilling precision and core sampling quality. Equipped with a standardized automatic hydraulic control system, the rig realizes intelligent and precise drilling operation, effectively avoids operational errors and on-site safety hazards, minimizes construction risks, and ensures continuous, safe, and efficient long-term drilling work.
3. Humanized & User-Friendly Operation System
Designed focusing on on-site operator experience, the HY-1000X deep core drilling rig adopts a simplified human-machine interaction control system. All functional buttons and operating handles are reasonably laid out with intuitive logic, allowing operators to master drilling parameter adjustment, equipment operation, and status monitoring quickly. The optimized operating structure reduces manual labor intensity, improves overall construction efficiency, and adapts to long-hour continuous exploration operations.
4. High Reliability & Low Long-Term Maintenance Cost
The whole machine adopts high-strength wear-resistant materials and standardized international premium accessories, with rigorous industrial processing and anti-fatigue treatment. It features stable mechanical performance, strong durability, and low failure rate, greatly reducing equipment downtime caused by malfunctions. Meanwhile, the modular structural design simplifies daily inspection, maintenance, and parts replacement work, effectively cutting long-term operation and maintenance costs for engineering teams and improving project economic benefits.
