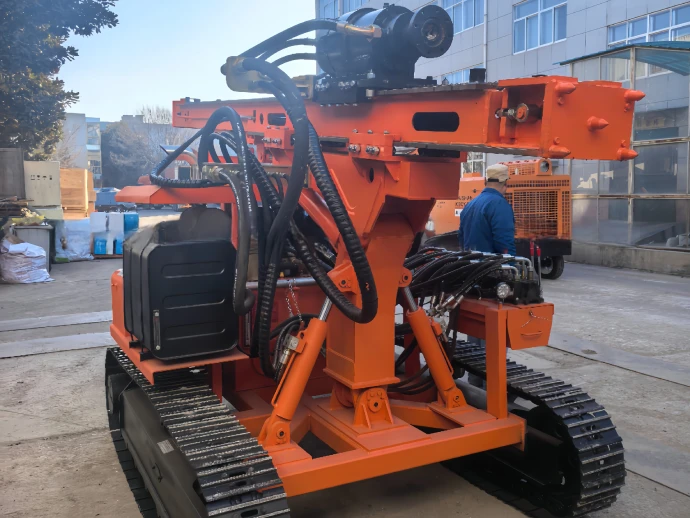

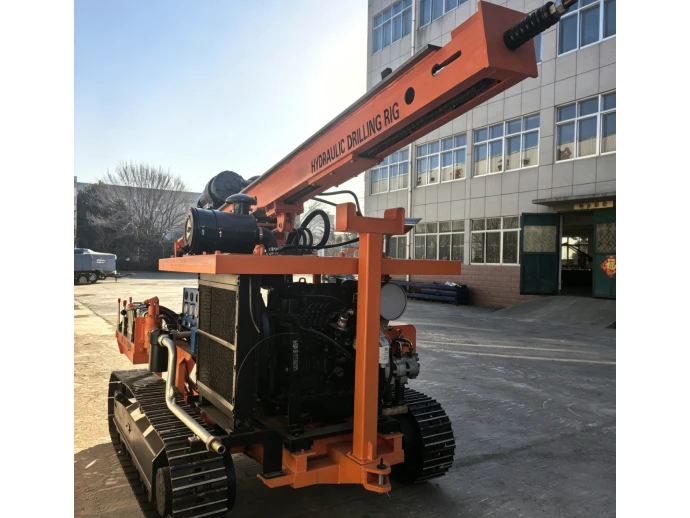

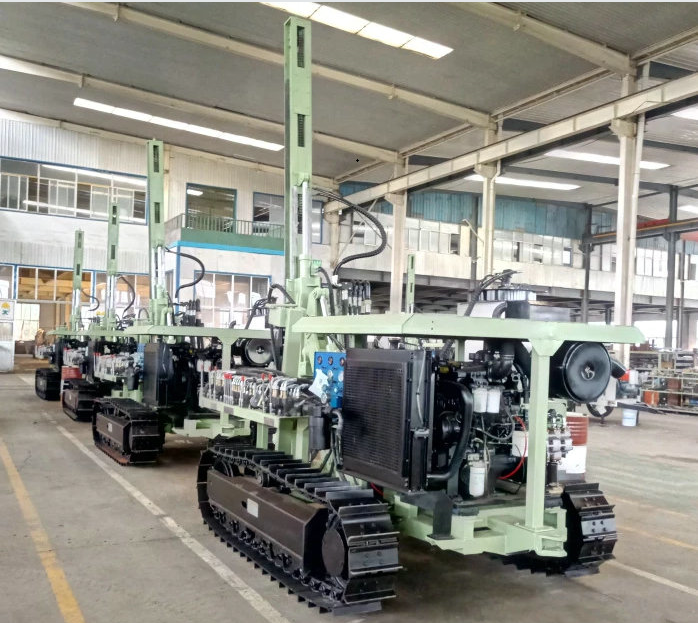

General Introduction
The HY130D is a multifunctional top-drive hydraulic drilling and piling rig with integrated working modes. It supports mud rotary drilling, air DTH drilling, auger piling, solar pile driving and PV ground screw installation. With strong versatility, the equipment is widely used for photovoltaic power station foundation piling, water well drilling, geotechnical engineering construction and blasting hole drilling projects.
Adopting upgraded hydraulic technology, the HY130D delivers high rotary torque with low energy consumption and stable operating performance. It effectively minimizes borehole deviation, ensuring straight and standardized hole forming even in complex working conditions.
Application Scope

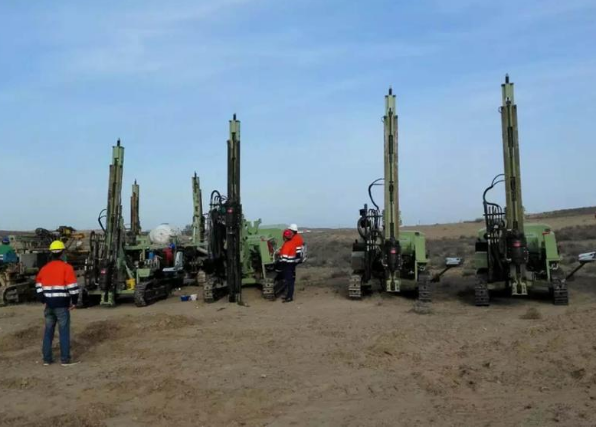

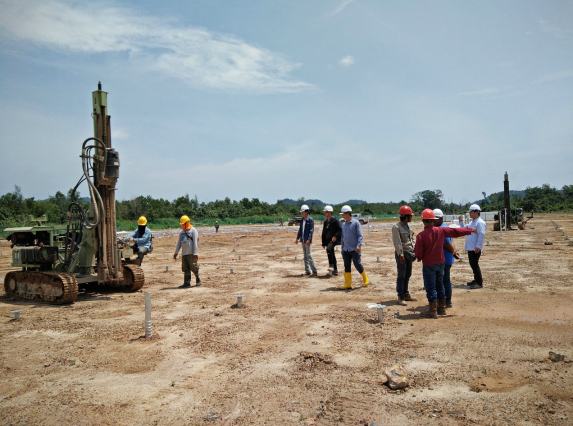

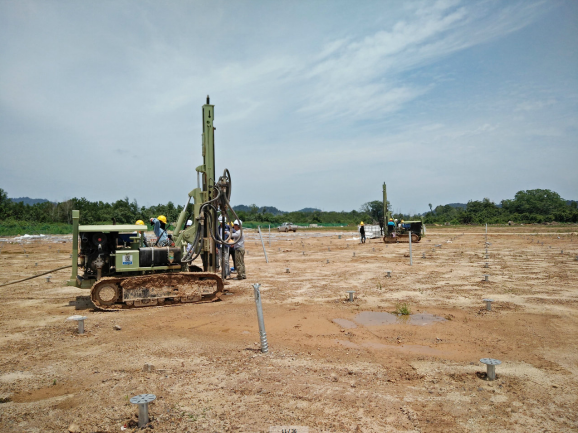

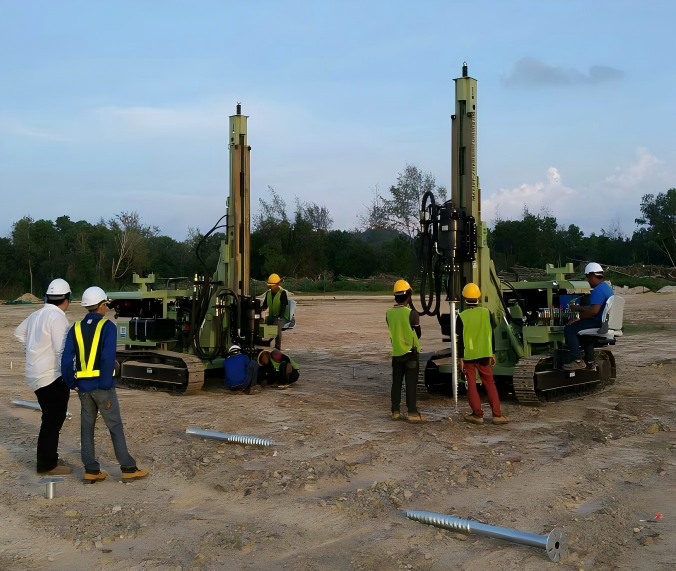

This crawler-type hydraulic rig is tailor-made for solar power station construction and various engineering drilling tasks. Its main application scenarios include PV solar pile installation, ground screw piling, foundation auger piling, civilian water well drilling, geotechnical foundation treatment and blasting hole drilling operations.

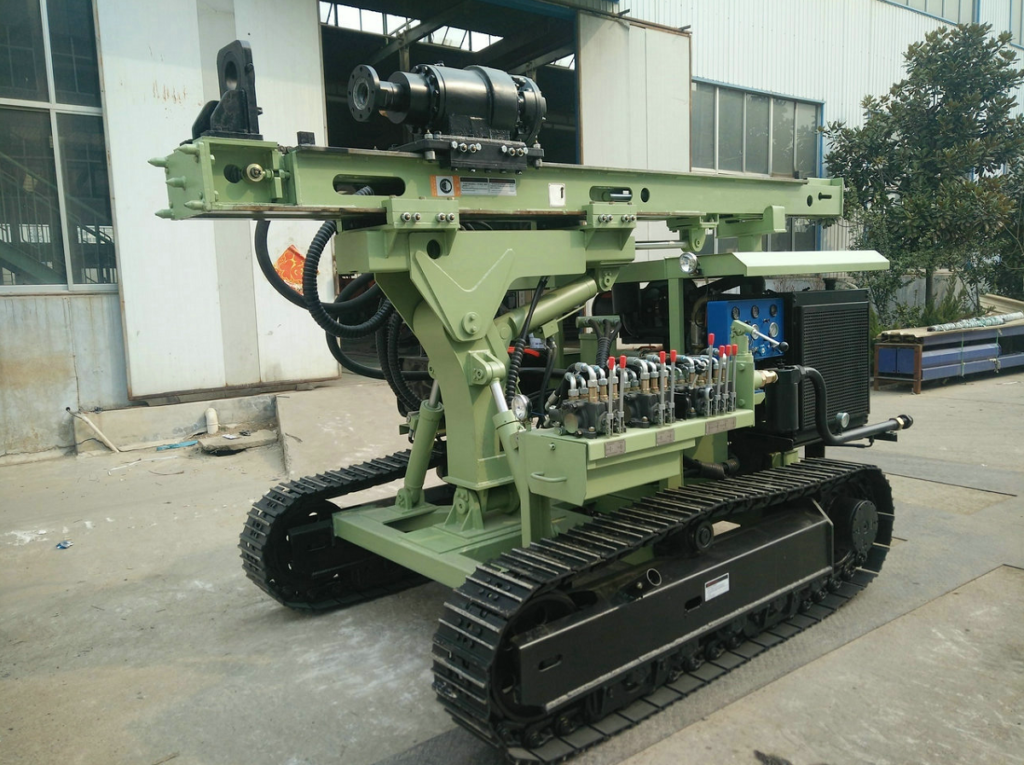

Main Advantages
Fitted with a new-generation optimized hydraulic system, the rig outputs powerful and steady rotary torque while lowering fuel consumption. It maintains stable drilling and piling power, effectively controlling borehole deviation and guaranteeing high-precision hole forming quality.
The whole machine features a compact and rational structural layout. The drilling mast is equipped with an adjustable compensation function and ground support structure during operation, greatly improving overall equipment stability and ensuring excellent borehole verticality.
Featuring reliable mechanical performance and fast construction speed, the HY130D adapts to various harsh field environments. It effectively reduces overall construction costs and significantly improves project progress and working efficiency.
The rig supports flexible switching of multiple working modes, fully meeting the construction requirements of photovoltaic solar spiral piling, foundation anchoring, civilian water well drilling and DTH blasting hole drilling, delivering strong practicability and wide adaptability.
Technical Data
| Bore diameter(hammer) | 90-300mm |
| Bore depth | 20-120m |
| Air consumption | 10-26m3/min |
| Air pressure | 0.7-1.6Mpa(medium) 1.6-2.46Mpa(high) |
| Pipe diameter | 76mm/89mm |
| For rock | F=6-20 |
| Bore diameter(screw) | Max 400mm |
| Bore depth | 0-30m |
| Screw pipe diameter | 130-410mm |
| Once promotion | 2000mm |
| Skid pitch | 100degree |
| Swinging angle of skid | Left and right total 40degree |
| Rotation speed | 0-70r/min |
| Host power | 56Kw |
| Climb ability | 35degree |
| Dimension(L*W*H) | 4460*1950*2460(mm) |
| weight | 4360Kg |
| Walk speed | 0-2.5km/h |
