Product Introdction

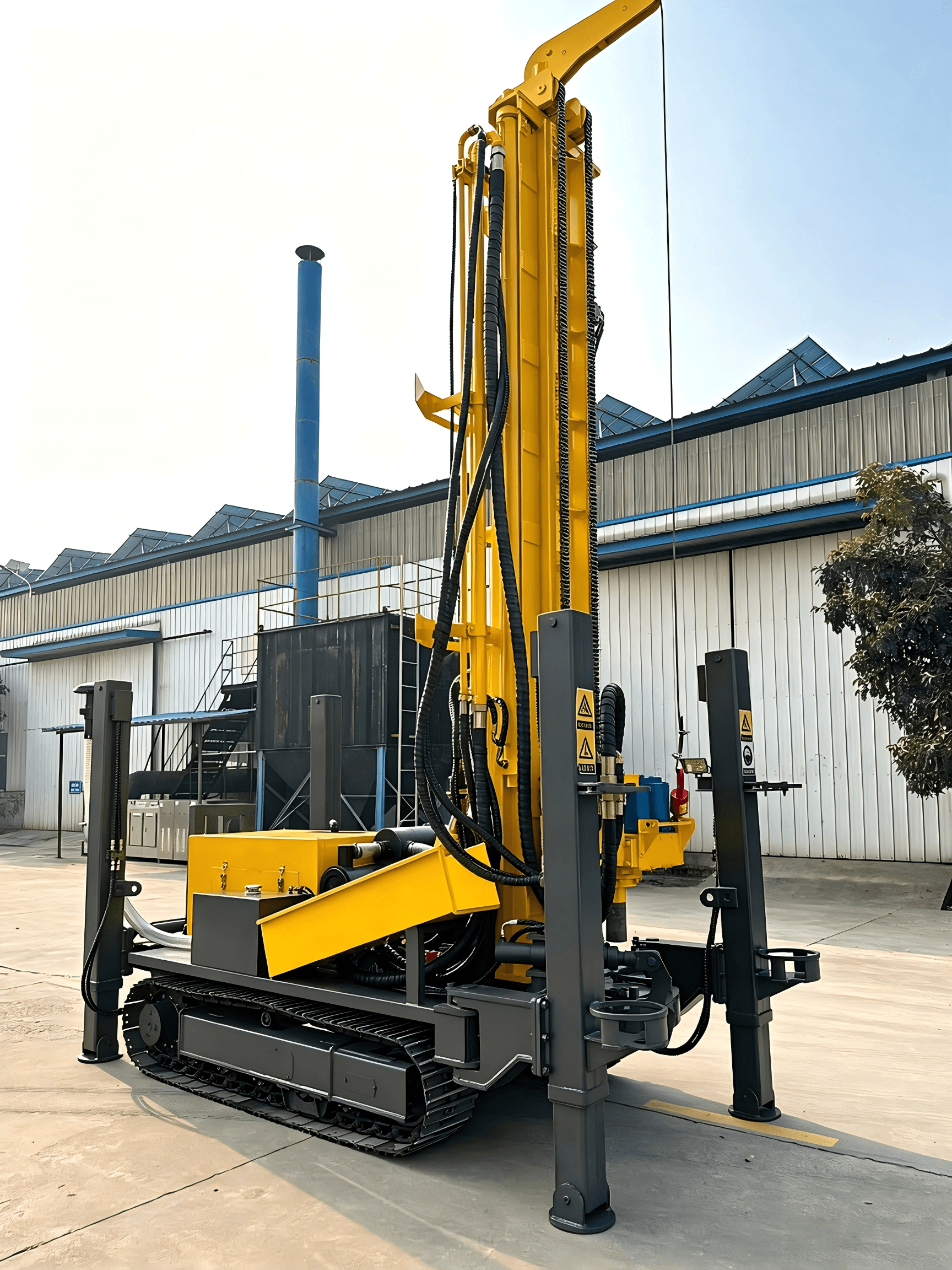

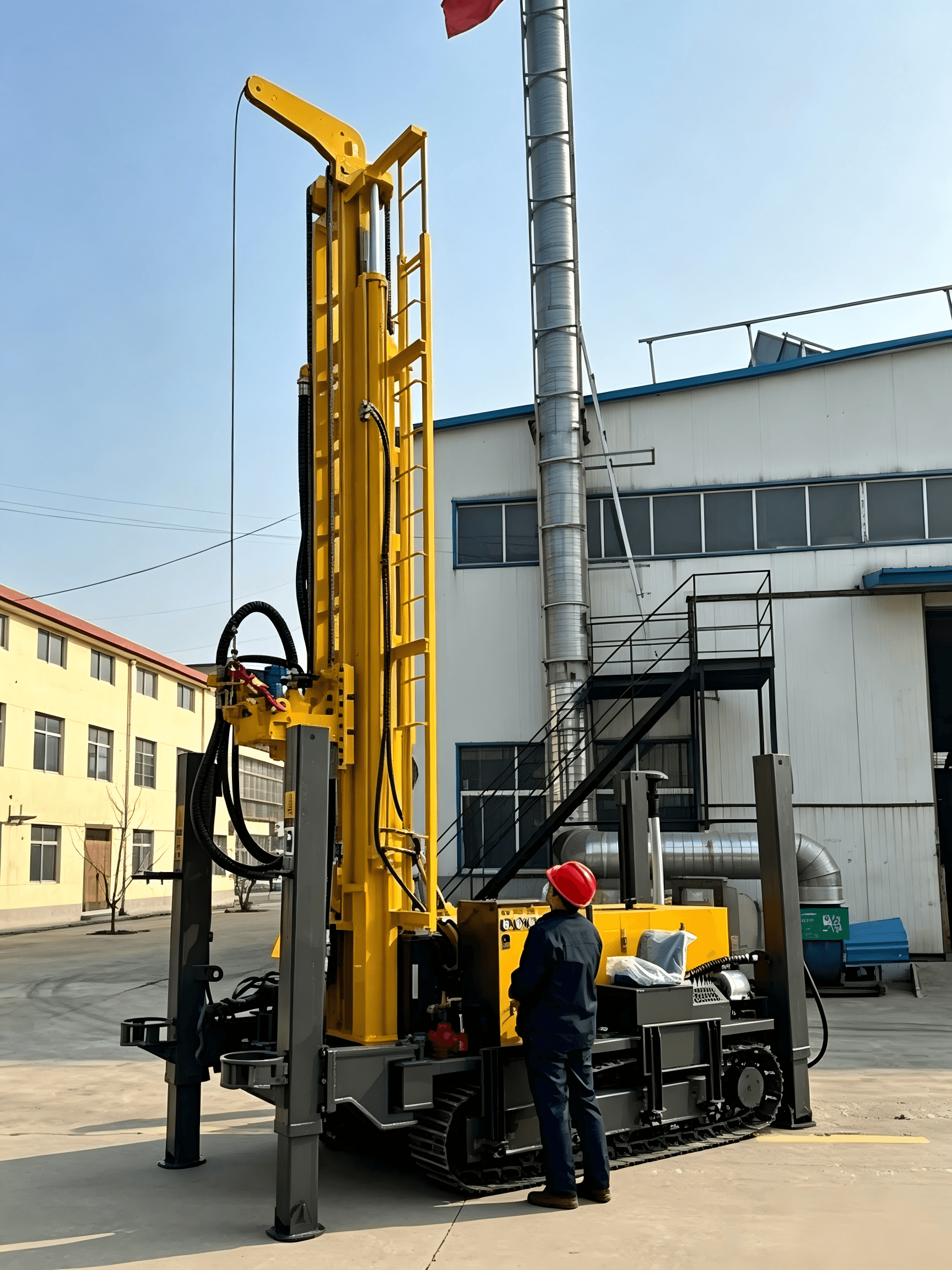

The HY350 350m crawler water well drilling rig is a heavy‑duty deep‑well drill rig built for complex terrain and demanding deep borehole projects. In addition to robust mechanical structure, it is fitted with a high‑torque top‑head rotary drive and dual‑purpose drilling system. This versatile hydraulic rig performs reliably for deep water wells, geothermal heat pump installations and geological survey drilling.
It achieves a maximum drilling depth of 350 m and bore diameter up to 350 mm. Meanwhile, supporting both mud pump and air compressor dual‑mode drilling, the HY350 handles soil, sand and hard‑rock formations under challenging geological conditions.
Furthermore, its heavy‑duty crawler chassis enables smooth travel across uneven and muddy job sites. The advanced full‑hydraulic control system delivers precise operation and stable rotary output for extended field work.
Complete safety features include emergency stop buttons, automatic locking systems and high‑pressure safety pipelines to protect operators and work sites. Besides, it boasts a user‑friendly control interface; the HY350 is simple to operate even for less‑experienced personnel, cutting complex procedures and lowering on‑site labor costs.
Apart from reliable performance, thanks to outstanding durability, strong terrain adaptability, dependable hydraulics and full safety design, the HY350 350m crawler water well drilling rig is a trusted choice for global drilling contractors and geothermal engineering teams. This heavy‑duty well‑drilling equipment works efficiently for rock water well projects across diverse field environments.
Main Features of HY350 Crawler Water Well Drilling Rig
Supports real‑time stepless adjustment of rotary speed, torque, feed pressure and lifting speed for easy and flexible operation.

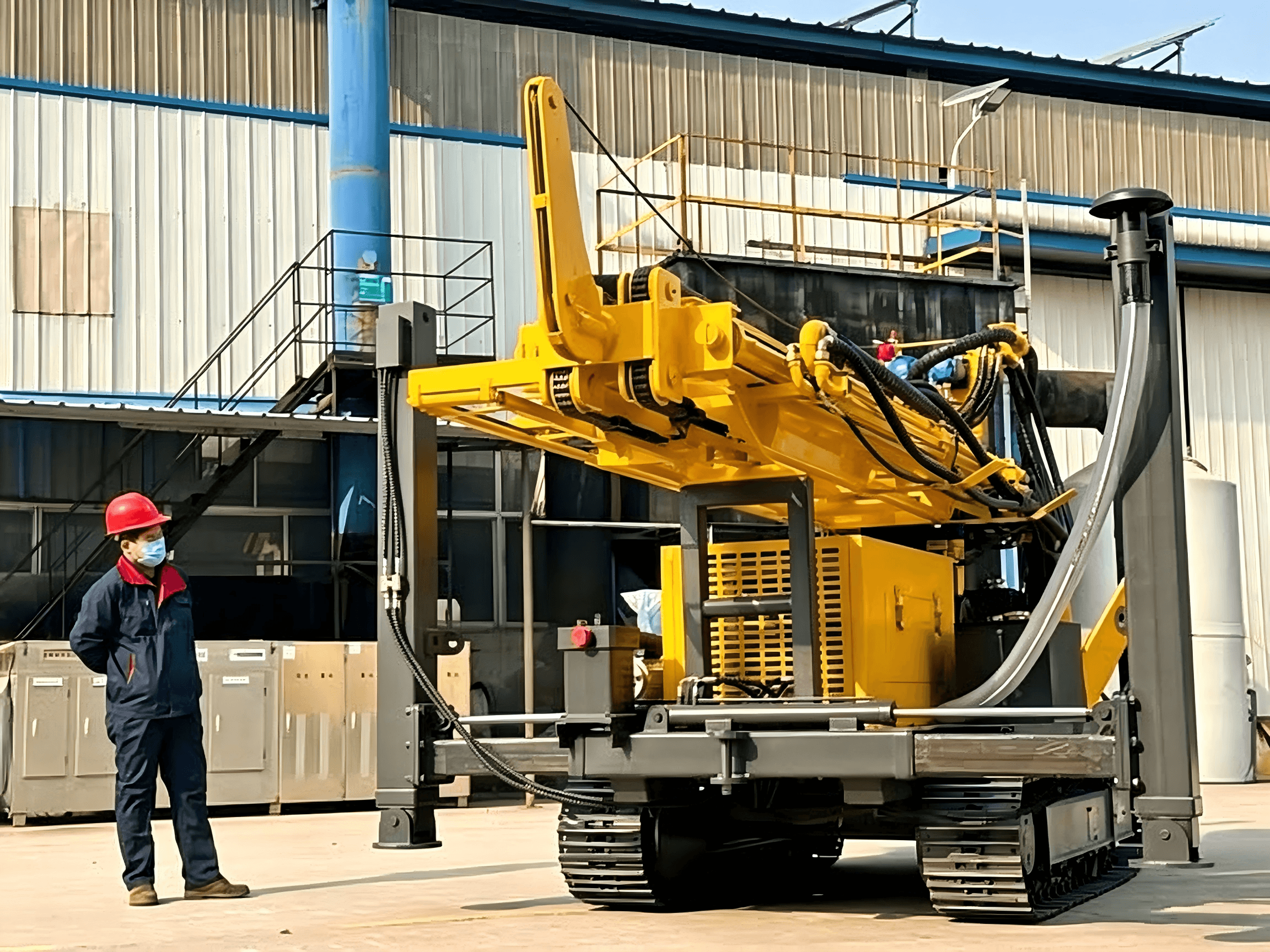

Optimized top‑drive enables fast drill pipe loading & unloading, cuts auxiliary working time and supports casing drilling.
Supports pneumatic DTH drilling and mud pump circulation drilling. Reserved space for optional auxiliary accessories.
Compatible with various drilling technologies and tools. Adopts professional DTH rock‑drilling technology for high rock‑breaking performance and lower per‑meter drilling cost.

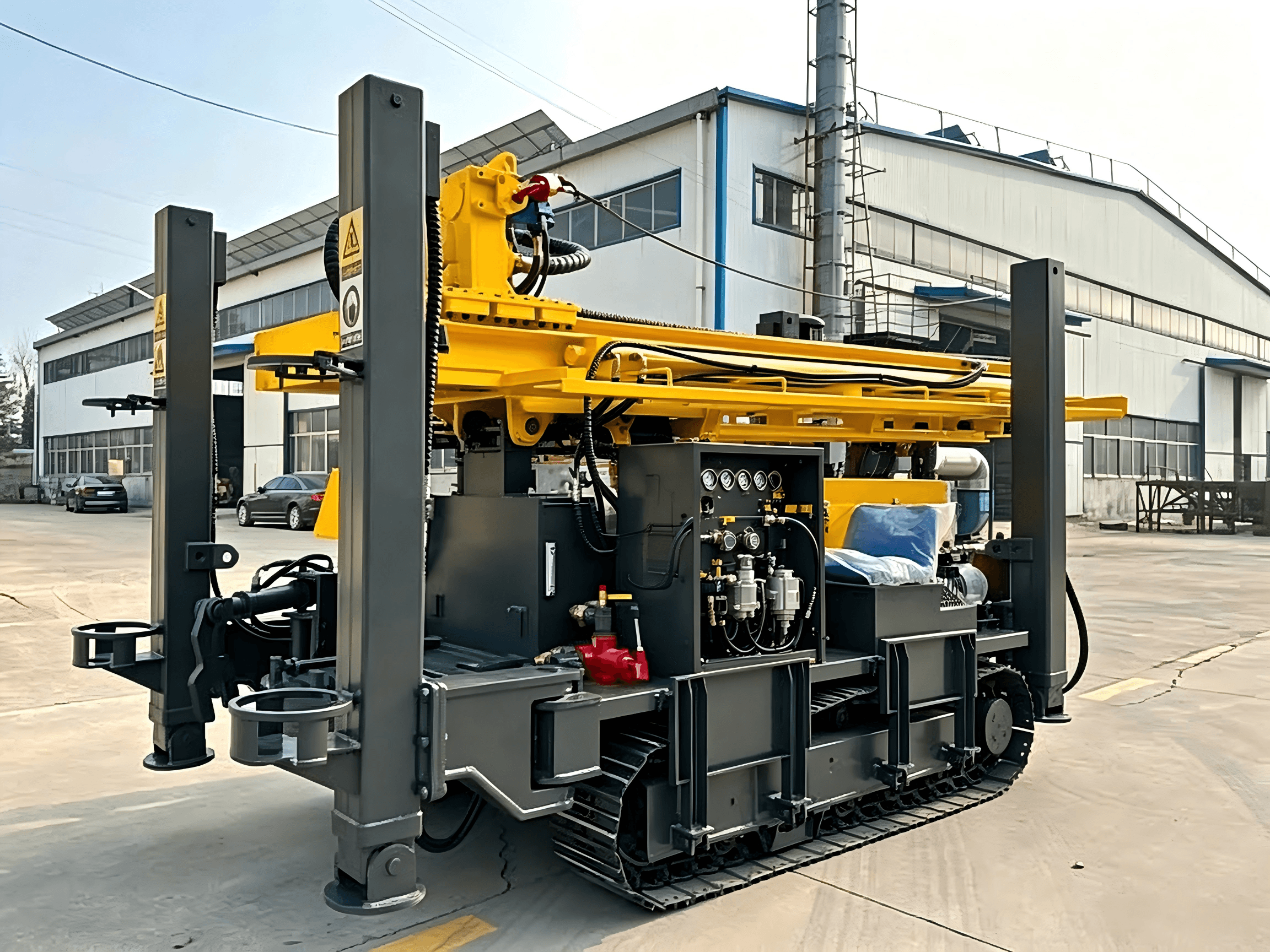

High‑clearance outriggers allow direct truck‑loading without cranes. Robust excavator‑style crawler chassis features high load capacity and great durability with wide track pads.
Matches optimal axial pressure and rotary speed for different drilling conditions, maintaining peak working efficiency as drill pipes increase.
Application Scenarios for Crawler Drill Rig
This deep well drilling rig is widely applicable for irrigation wells, residential domestic water wells, geothermal boreholes, hydrological exploration wells and industrial water supply projects.
Technical Parameters
| Bore diameter（hammer） | 100-350mm |
| Bore depth | 350m |
| Air consumption | 17-36m³/min |
| Air pressure | 1.7-3.5Mpa |
| Pipe diameter | 89mm/102mm |
| Pipe length | 1m/2m/3m/6m |
| Lifting force | 22T |
| Lifting speed | 3m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 30m/min |
| Fast feeding speed | 50m/min |
| Max torque of rotary | 6200-8500Nm |
| Rotary speed | 55-115r/min |
| Hoist lifting capacity | 2T |
| Mud Pump flow | 450L/min (option) |
| High hydraulic leg | 1.5m |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension（L*W*H) | 6000×2000×2600mm |
| weight | 8600Kg |
| Diesel engine | 91KW Yuchai engine |
