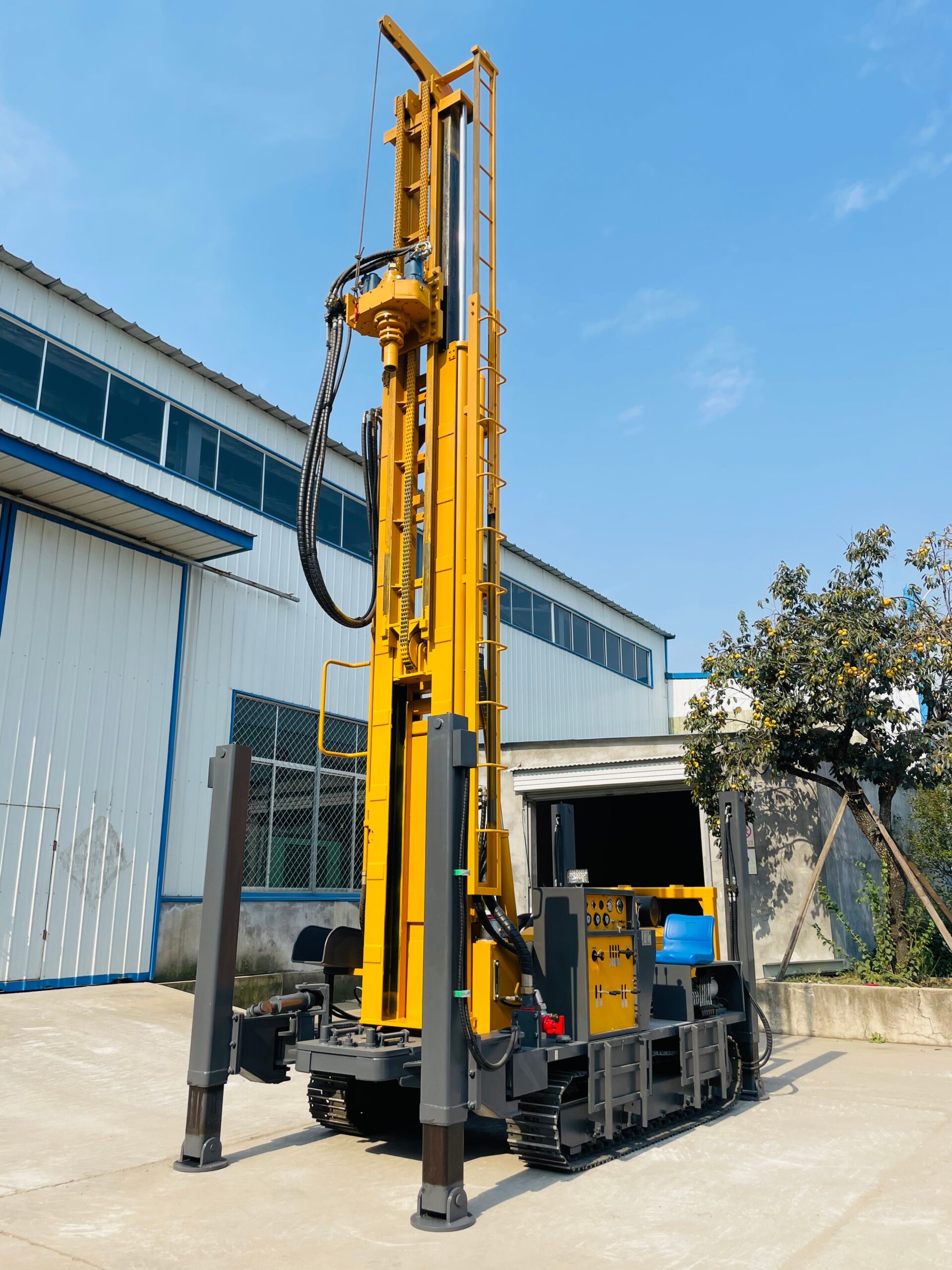

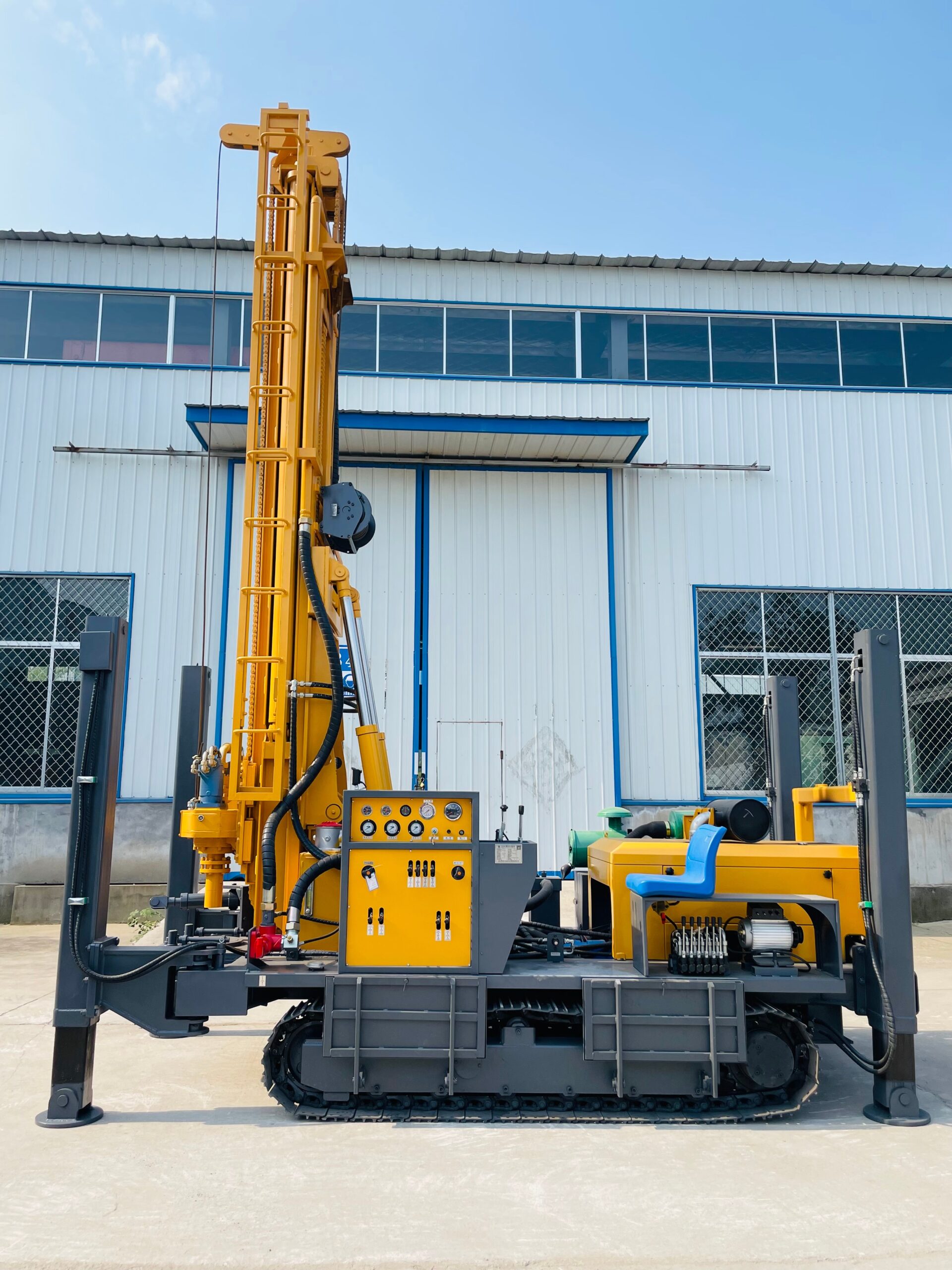

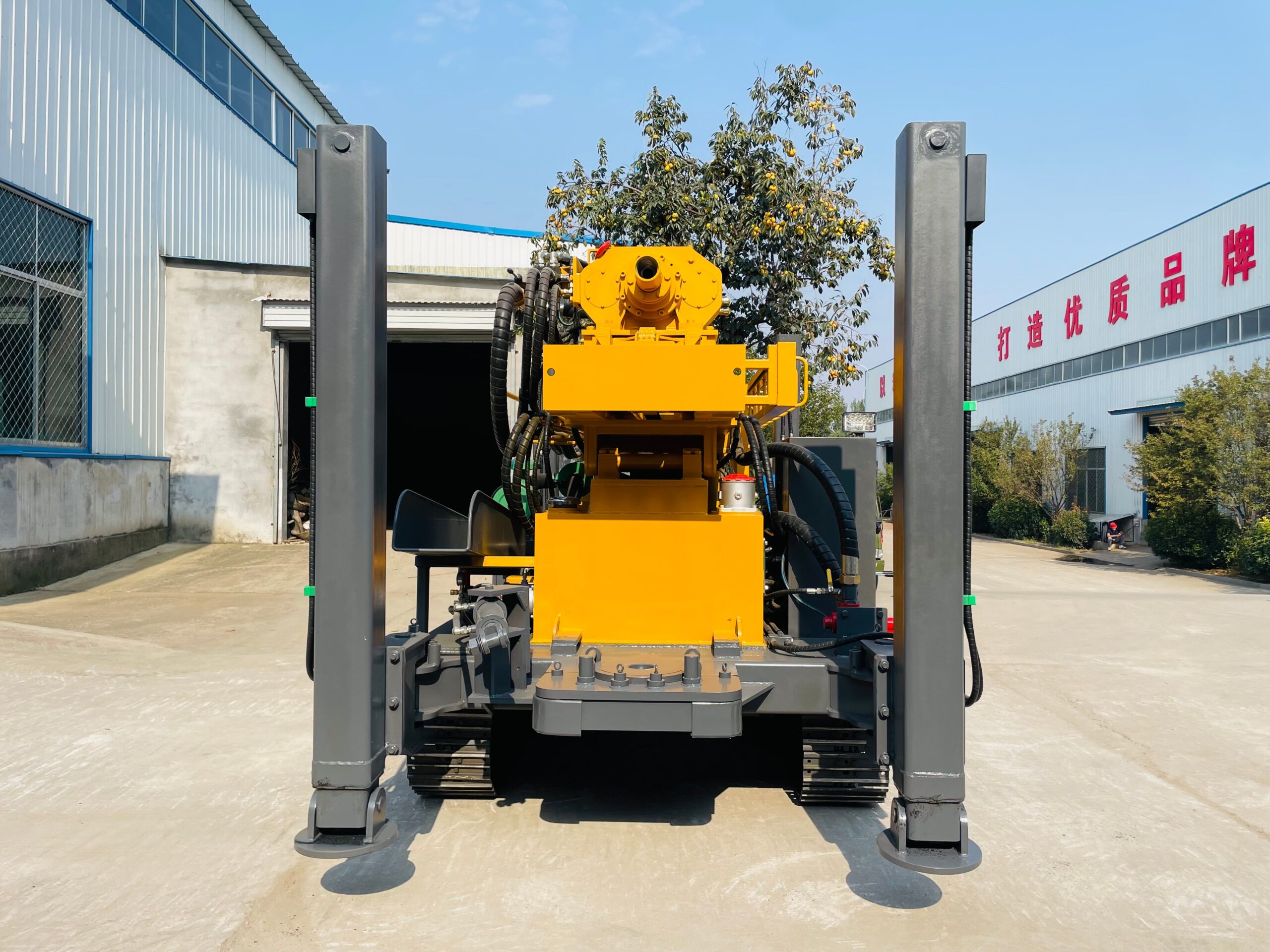

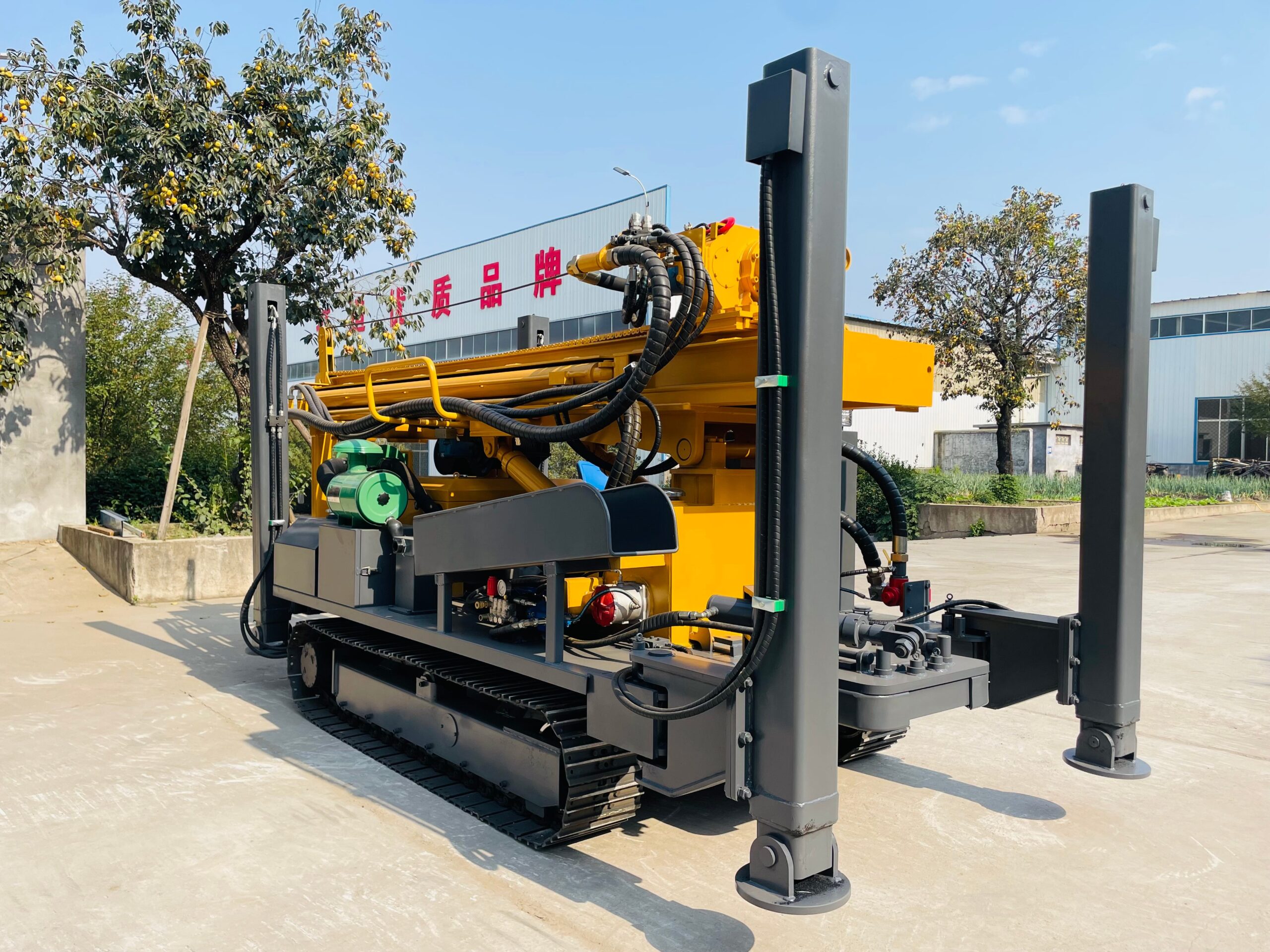

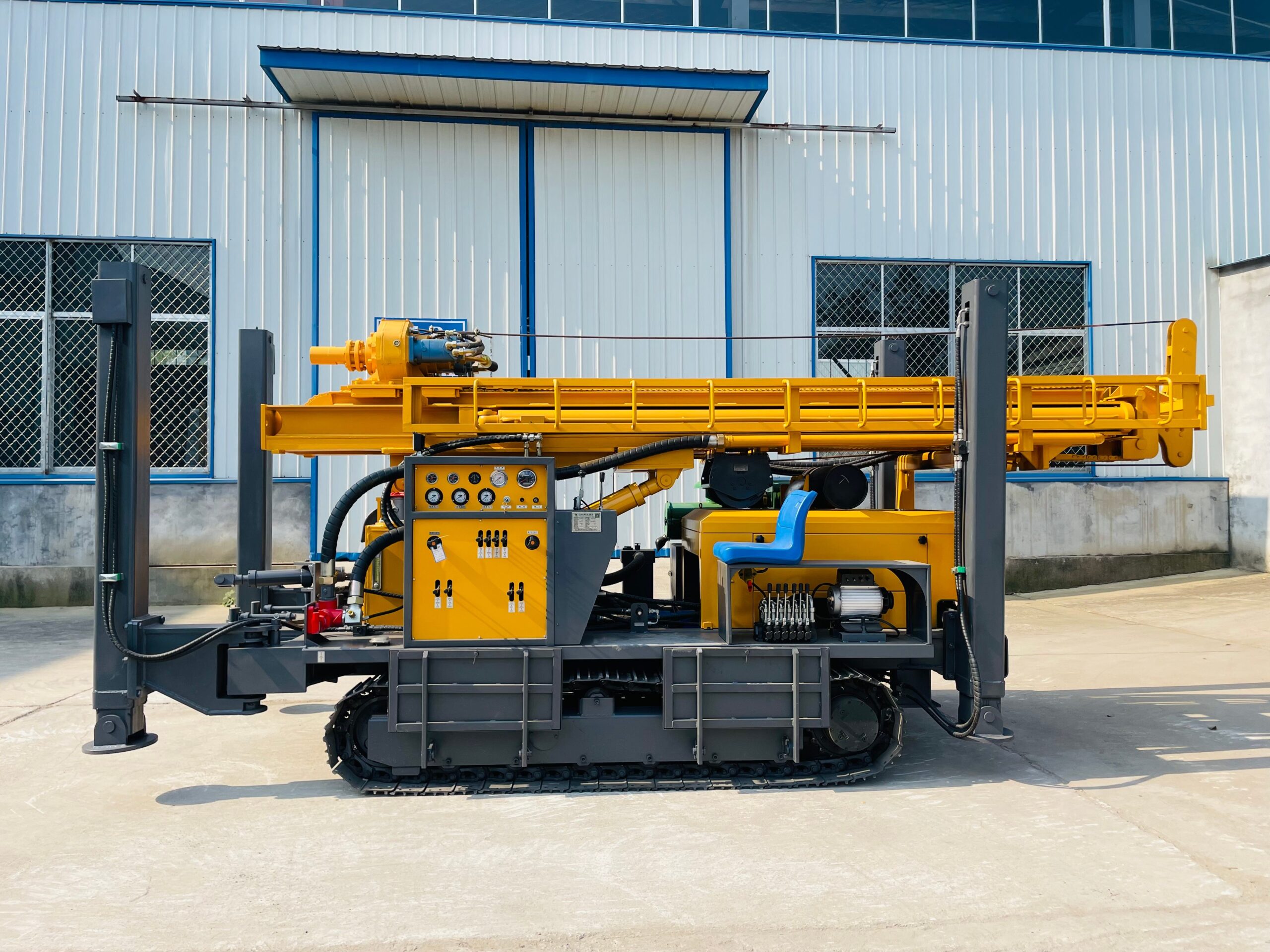

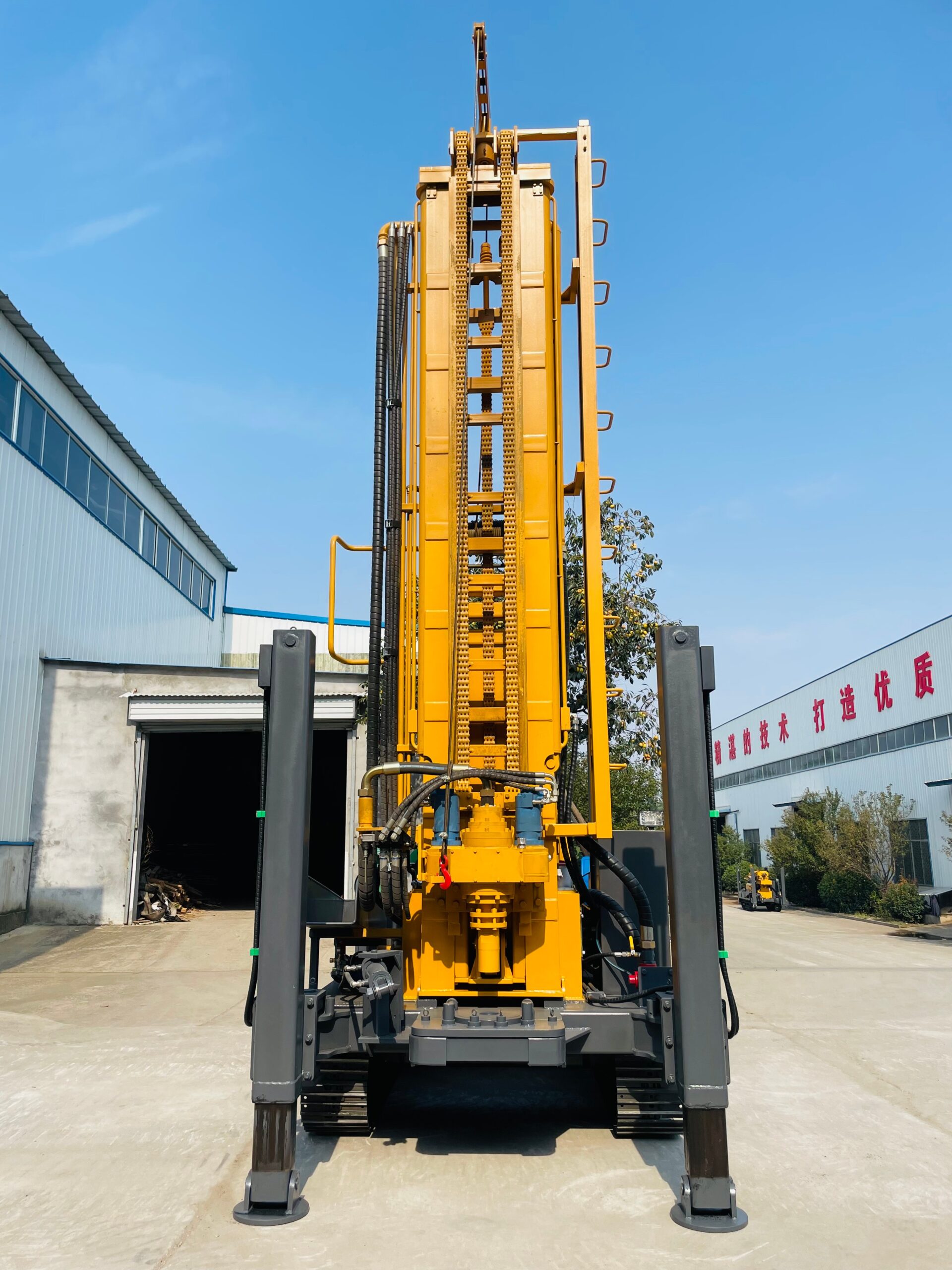

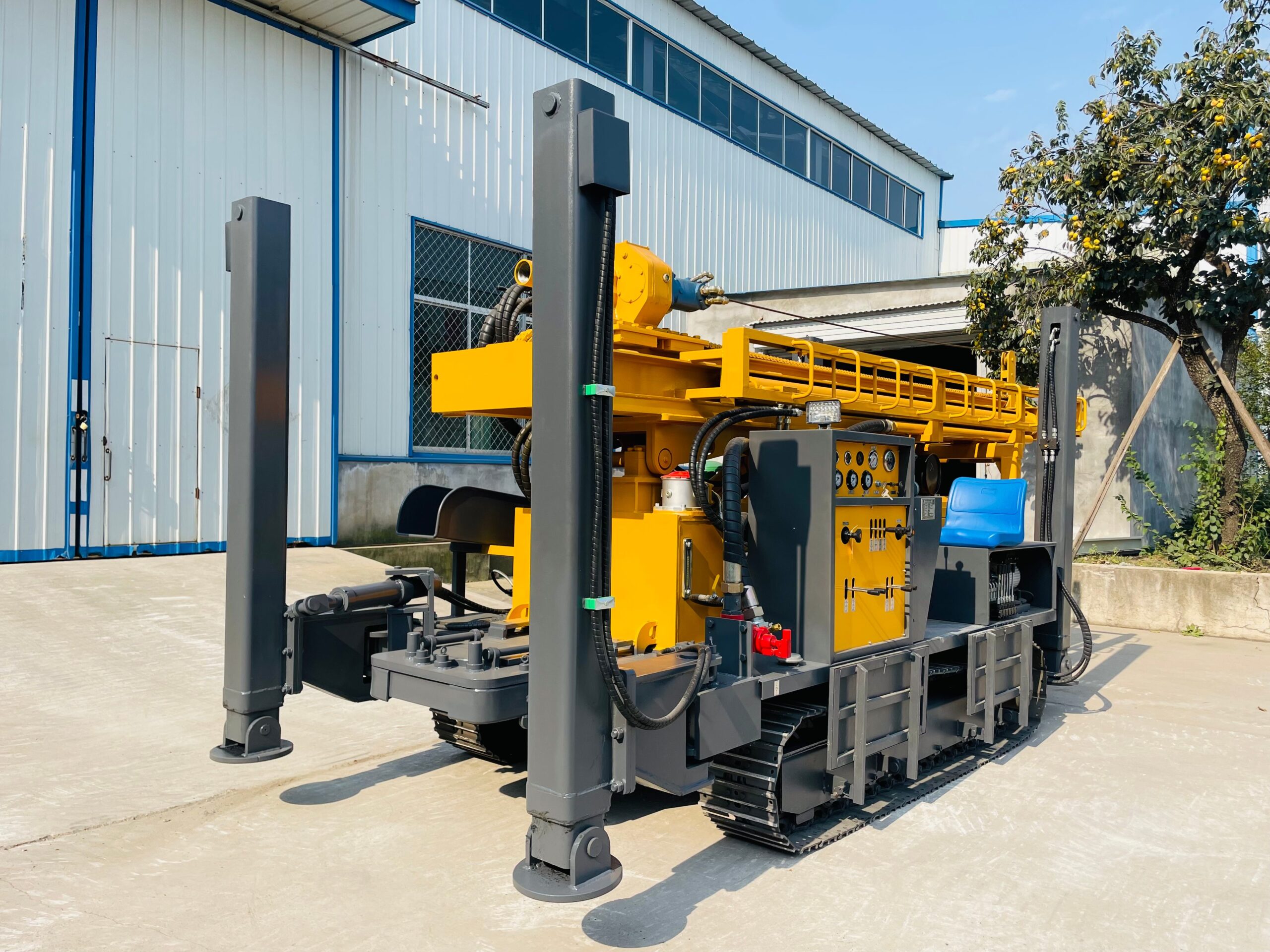

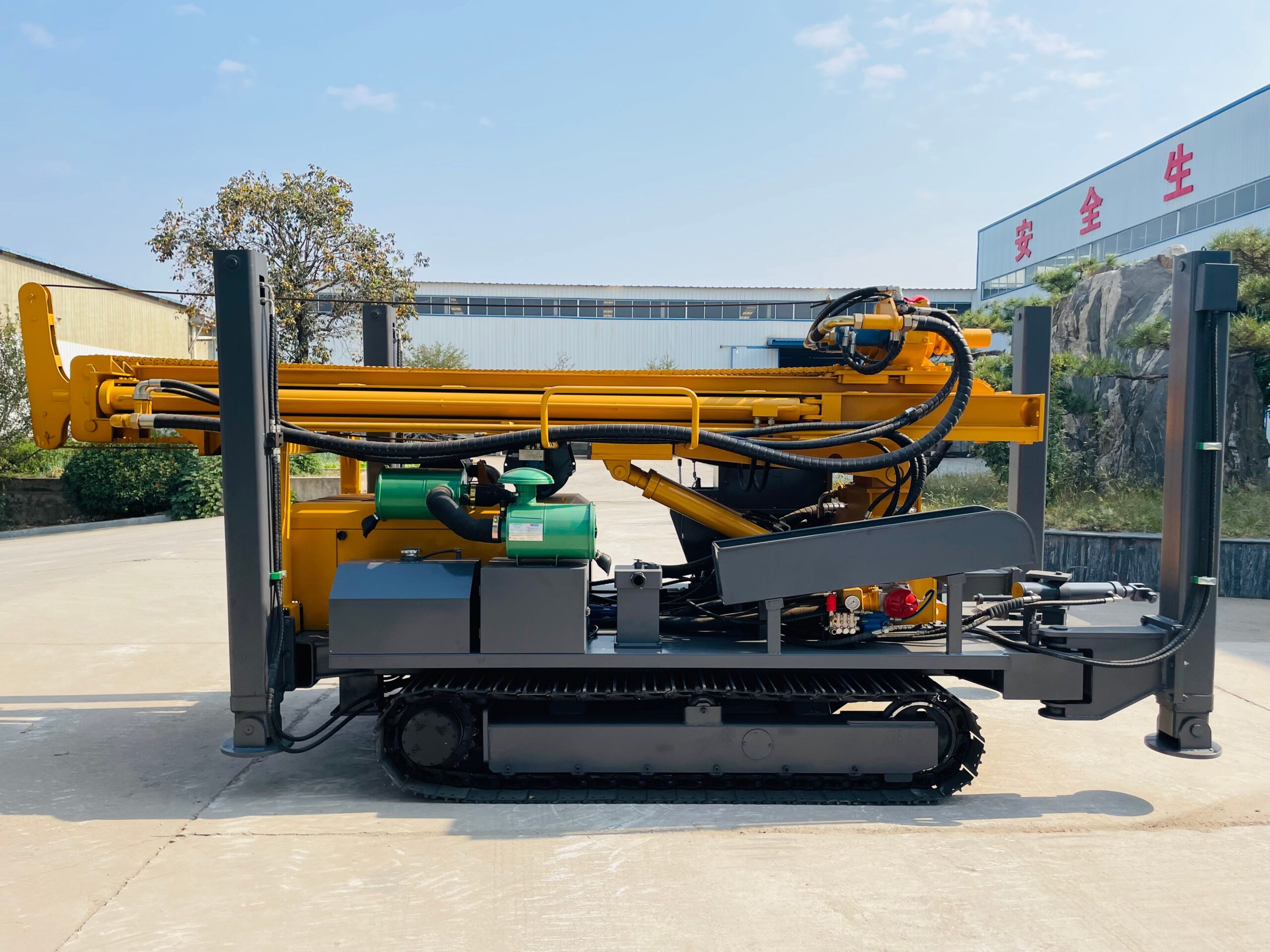

Product Introdction
The HY500 is a high-efficiency, multi-functional down-the-hole (DTH) water well drilling equipment tailored for diverse drilling operations. It is widely applicable for water well drilling, agricultural irrigation well construction, geothermal well drilling, and various other types of borehole projects. This drilling rig is especially suitable for water sourcing projects in mountainous areas and complex rock strata, delivering stable and reliable drilling performance in harsh geological conditions.
This HY500 water well drilling rig supports a maximum drilling depth of 500 meters and a borehole diameter ranging from 140mm to 350mm, making it highly versatile for residential water supply, agricultural irrigation, and industrial well construction. Equipped with a full-hydraulic load-sensing system and a reliable Yuchai diesel engine, it delivers stable torque and efficient penetration across various geological formations, including hard rock, gravel, and complex soil layers. The rig’s dual-mode design supports both DTH hammer drilling and mud rotary drilling, allowing operators to switch methods according to specific site conditions.
Advantages & Features
Equipped with a high-performance full hydraulic system, the HY500 hydraulic deep well drilling rig realizes rapid drilling penetration and efficient deep hole forming. It greatly shortens project construction cycles and significantly improves overall drilling operation efficiency.
Powered by a 118KW high-torque engine, the drilling rig delivers stable and strong power output. It can easily cope with complex and tough drilling environments such as hard rock strata and mountain terrain, ensuring continuous and stable drilling operation without power shortage.
The HY500 water well drilling rig supports a maximum drilling depth of 500 meters, covering most civilian, agricultural and industrial drilling demands. Its wide depth adaptation makes it a versatile option for various conventional and deep well drilling projects.
Adopting high-strength raw materials and premium core components, this crawler drilling rig features excellent structural rigidity and wear resistance. It is fully optimized for long-term heavy-duty operation, effectively reducing equipment wear and extending service life in complex working conditions.
Designed with a humanized control system and intuitive operation interface, the HY500 drilling rig features simple and flexible operation procedures. It is easy to master for both professional operators and novice users, lowering operational difficulty and training costs.
Fitted with a low-emission, energy-saving engine, the equipment effectively reduces exhaust emissions and fuel consumption during operation. It complies with international environmental protection standards, achieving efficient drilling while minimizing environmental impact.
Featuring high working efficiency, outstanding durability and low failure rate, the HY500 hydraulic drilling rig requires minimal daily maintenance. It reduces long-term operation and maintenance costs for drilling projects, delivering great economic benefits for users.
Application
The HY500 water well drilling rig is a high efficiency and multi-functional down the hole water well drilling equipment, It can be used to drill water well,agrecultural irrigation well, geothermal well and other type well holes. It is sepcial suitable for mountain area and rock stratum water sourcing project.
Technical Parameters
| Bore diameter（hammer） | 100-350mm |
| Bore depth | 500m |
| Air consumption | 17-36m³/min |
| Air pressure | 1.7-3.0Mpa |
| Pipe diameter | Φ102 Φ108 Φ114 |
| Pipe length | 1.5m/2m/3m/6m |
| Lifting force | 26T |
| One-time advance length(m) | 6.6m |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 20m/min |
| Fast feeding speed | 40m/min |
| Max torque of rotary | 7500-10000Nm |
| Rotary speed | 40-130r/min |
| Hoist lifting capacity | 2T |
| Mud Pump flow | BW600L/min (option) |
| High hydraulic leg | 1.6m |
| Feeding efficiency | 15-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension（L*W*H) | 6200×2200×2650 |
| weight | 11500Kg |
| Diesel engine | 118KW Yuchai engine |
Delivery
In Worksite
Our Service
1.Pre-sale service: Act as a good adviser and assistant of clients enable them to get rich and generous returns on their
investments .
①.Select equipment model.
②.Design and manufacture products according to client’s special requirement ;
③.Train technical personnel for clients .
2.Services during the sale:
①.Pre-check and accept products ahead of delivery .
②. Help clients to draft solving plans.
3.After-sale services: Provide considerate services to minimize clients’ worries.
①.Complete After-sales service,professional engineers available to service machinery at home or oversea.
②. 24 hours technical support by e-mail.
③.Other essential technological service.
