Product Introdction

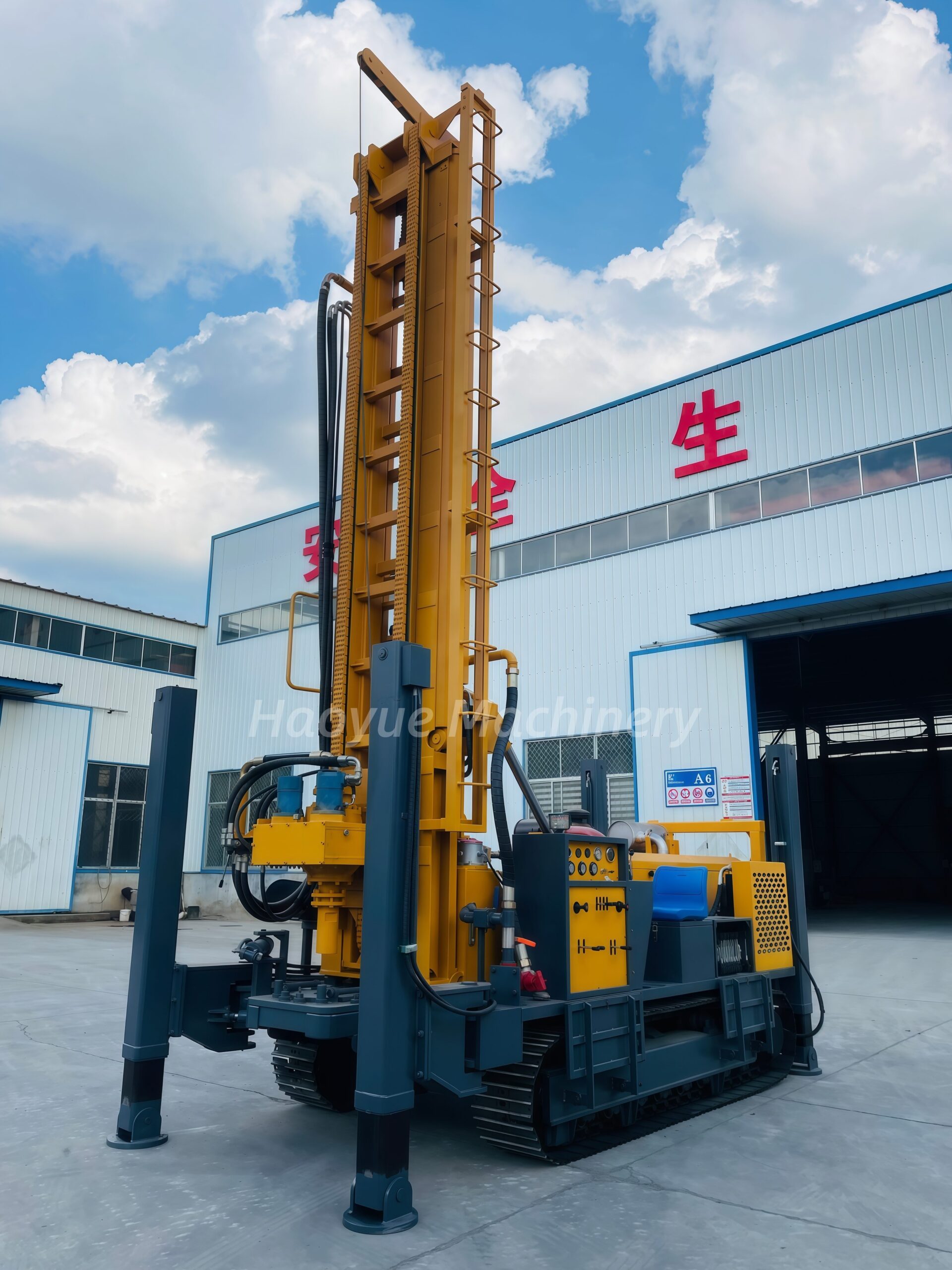

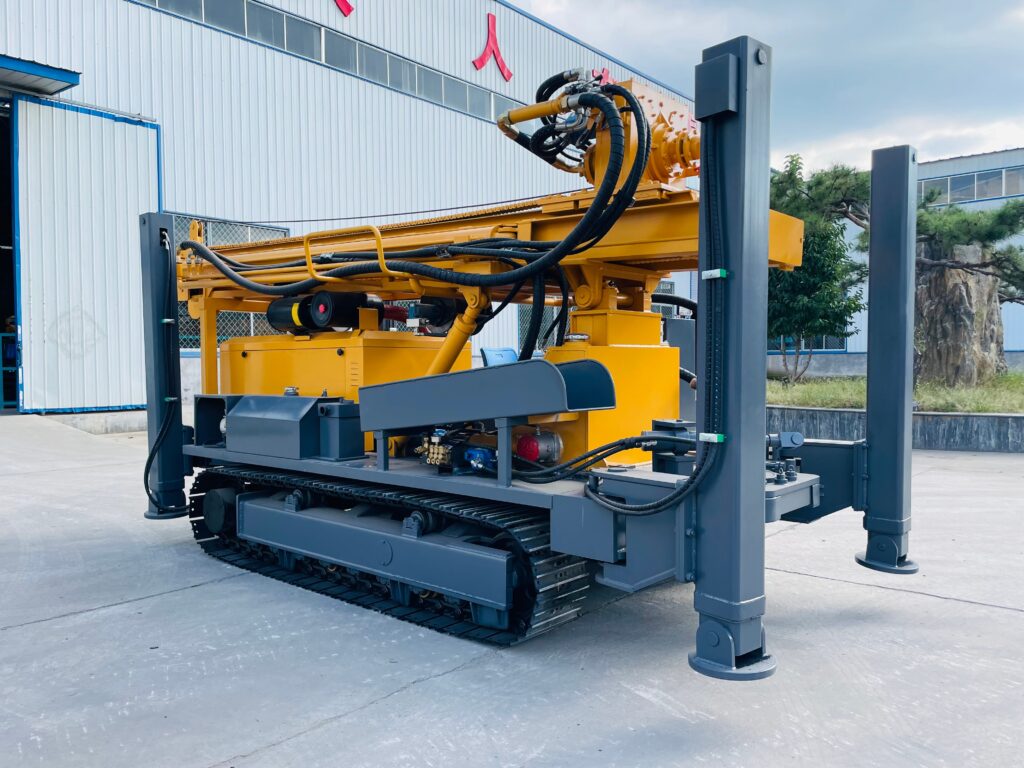

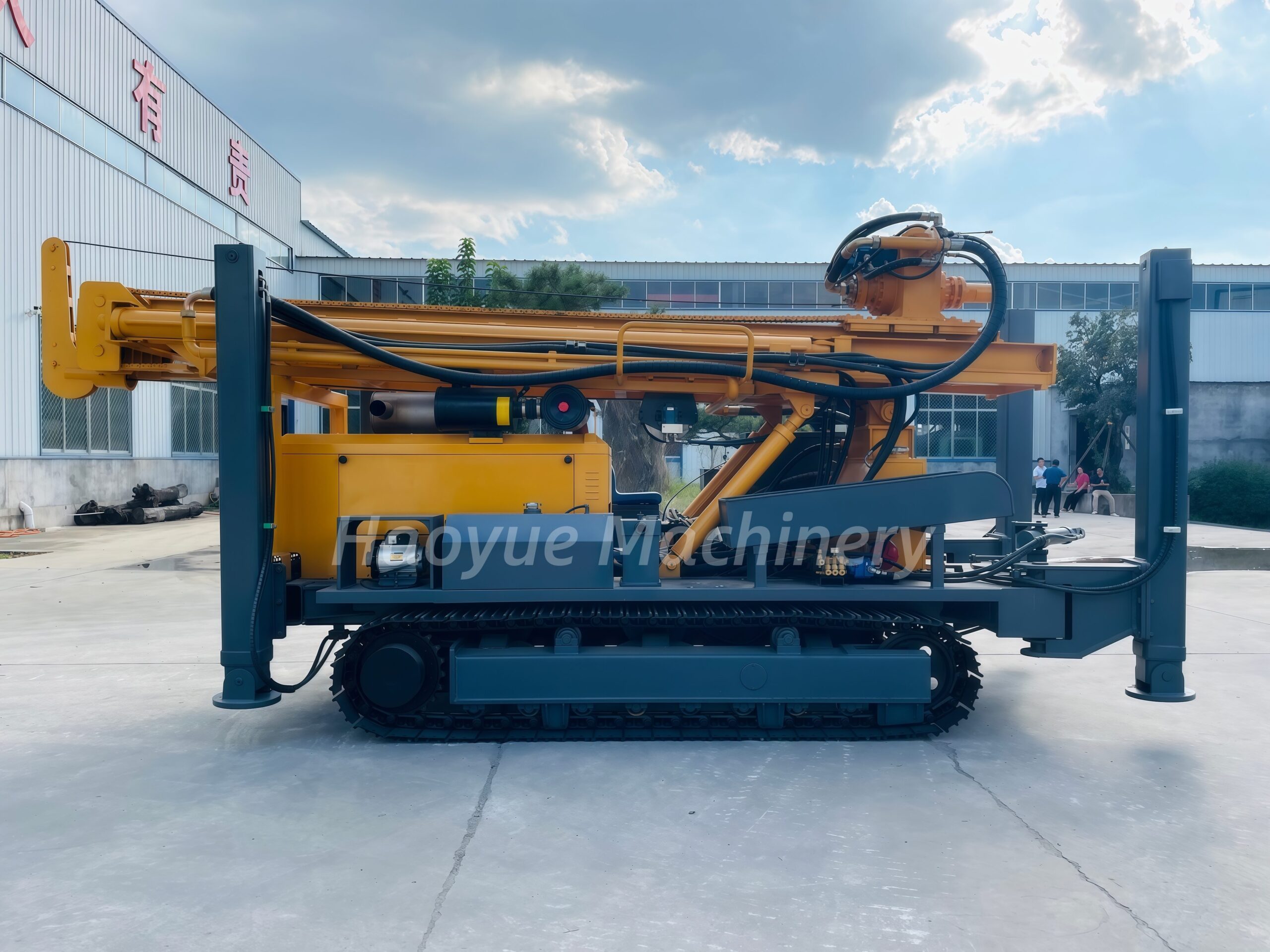

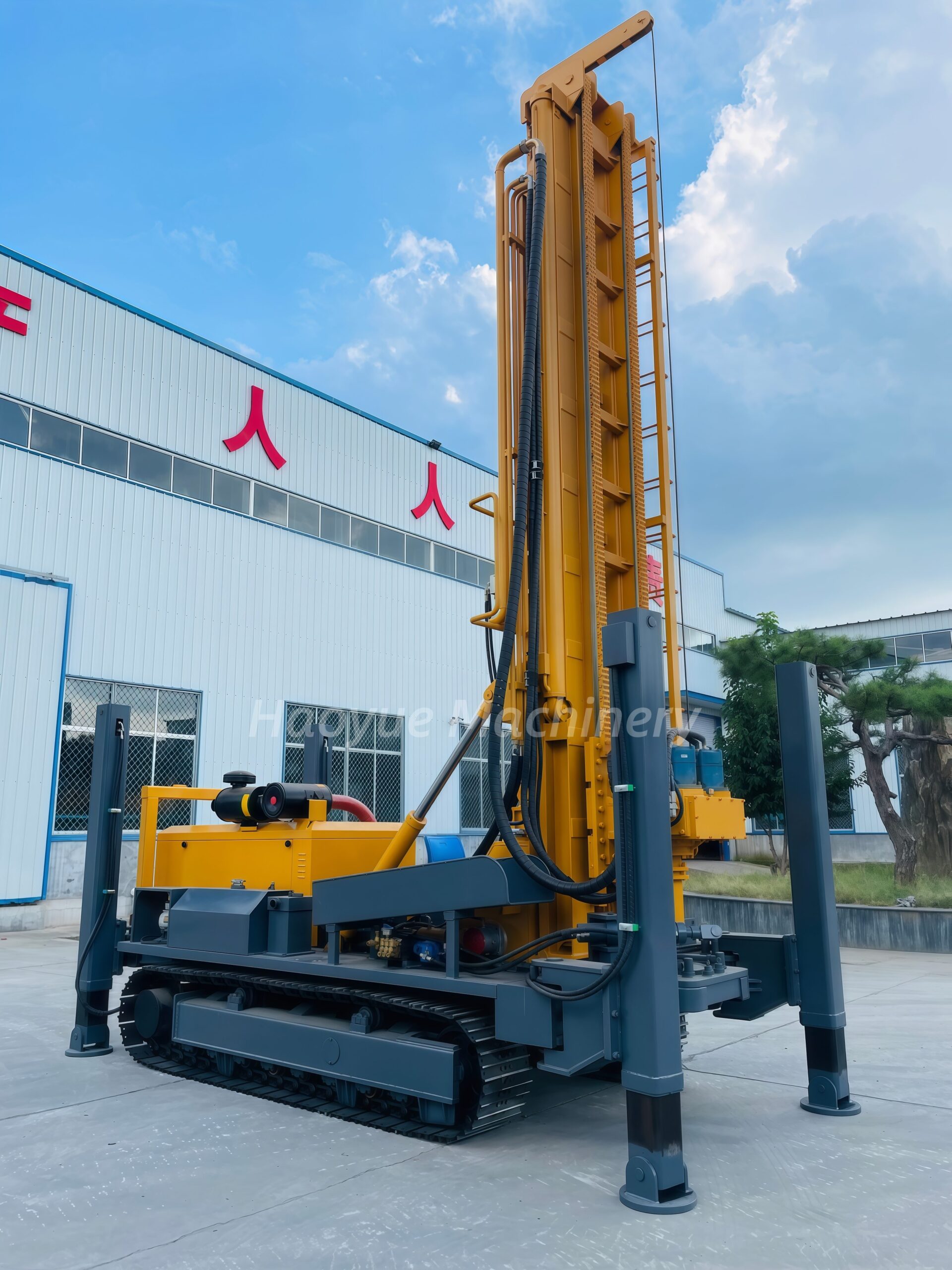

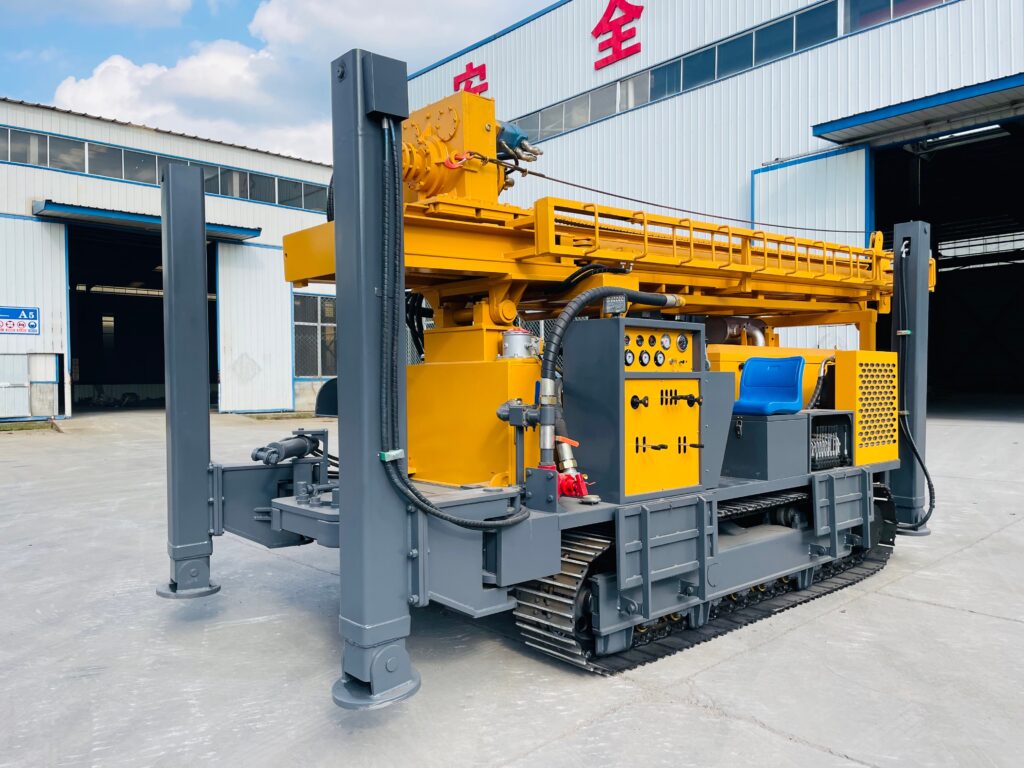

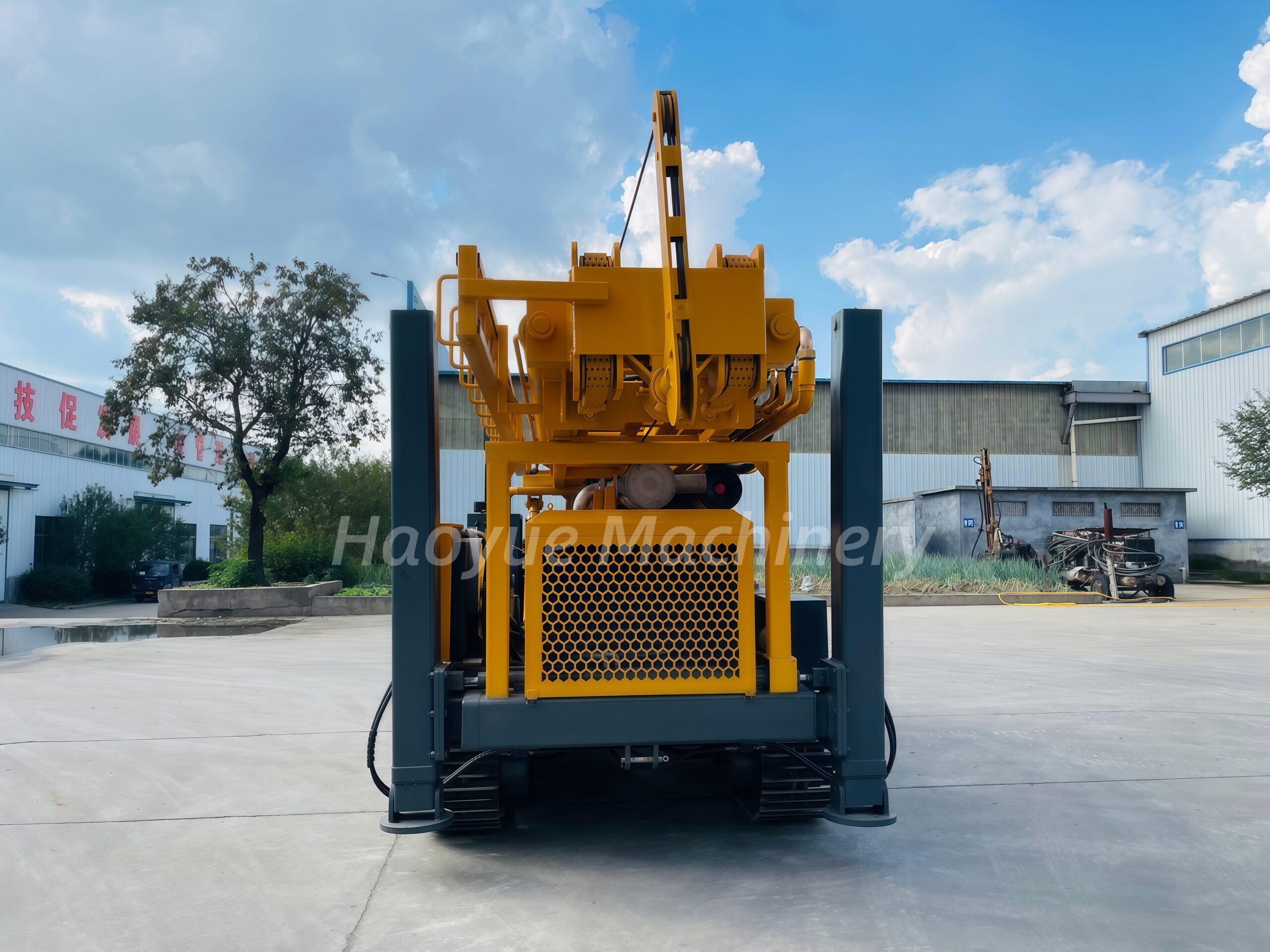

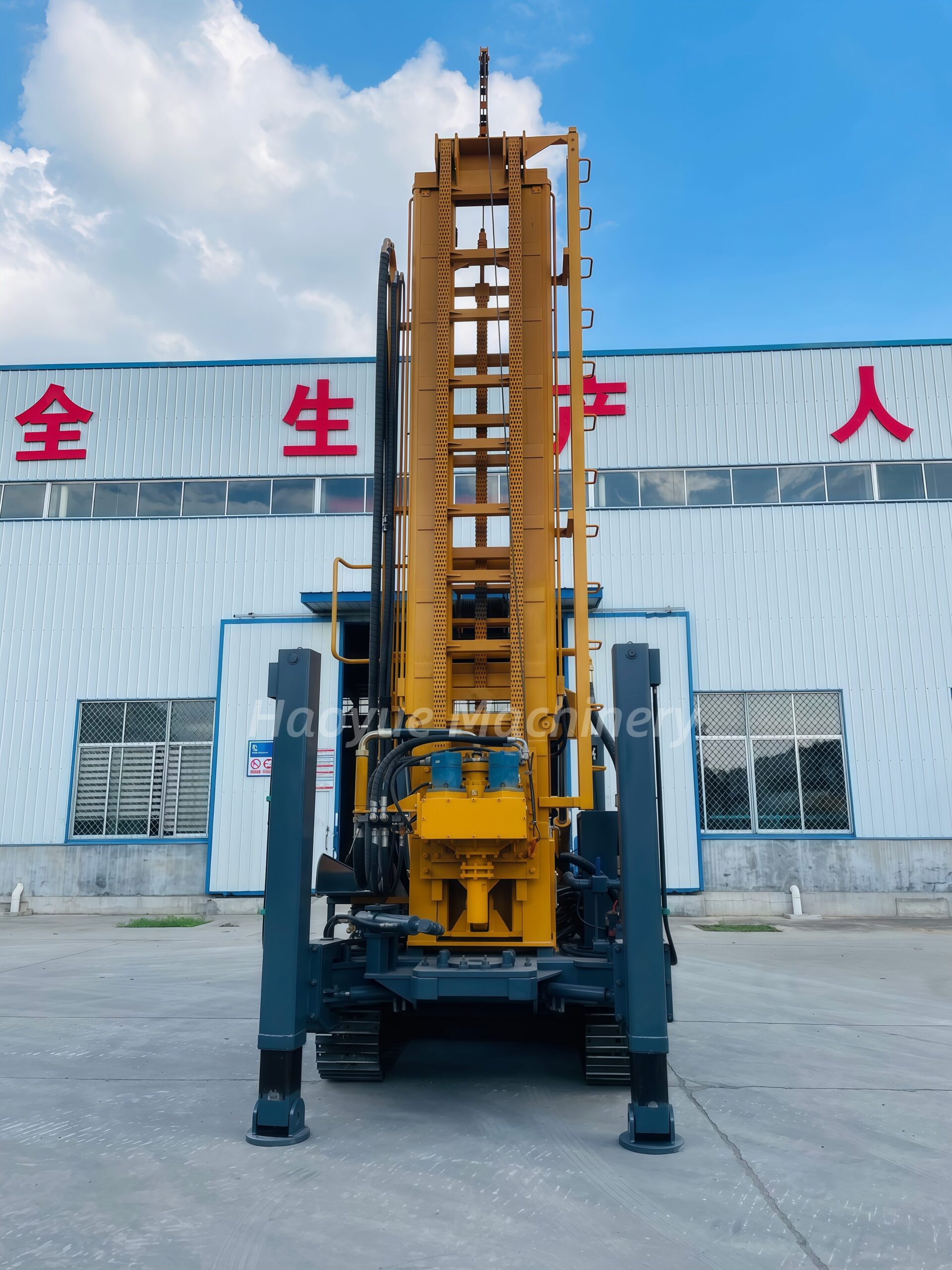

The HY1000 water well drilling rig is a high‑performance crawler‑mounted industrial borehole machine. It features a high‑torque hydraulic motor and supports a maximum drilling depth up to 1000 meters.
Furthermore, it adopts reinforced wide steel crawler tracks for its heavy‑duty chassis. This design delivers excellent load‑bearing capacity and strong wear resistance. As a result, the rig copes well with a wide range of harsh, complex outdoor construction conditions. Moreover, it maintains stable, efficient and long‑lasting drilling performance for all water‑well engineering projects.
Application
The HY1000 water well drilling rig suits a wide variety of geological formations, including silt layers, quicksand layers, weathered rock and pebble beds. Besides, it runs with low noise and holds strong load‑resistance, making it highly cost‑effective.
Furthermore, this deep‑well drilling machine uses a full hydraulic control system. The system greatly cuts manual labor requirements. As a result, the unit fits drilling tasks for resource exploration, hydrological wells, domestic water supply wells and agricultural irrigation projects.
Technical Parameters
| Bore diameter（hammer） | 140-500mm |
| Bore depth | 1000m |
| Air consumption | 17-42m³/min |
| Air pressure | 1.7-3.5Mpa |
| Pipe diameter | 102/108/114mm |
| Pipe length | 1m/2m/3m/6m |
| Lifting force | 36T |
| Drilling way | Air compressor drilling or mud pump drilling |
| One-time advance length | 6.6m |
| Fast lifting speed | 20m/min |
| Fast feeding speed | 40m/min |
| Max torque of rotary | 9000-14000Nm |
| Rotary speed | 45-140r/min |
| Hoist lifting capacity | 2T |
| Mud Pump flow | 850L/min (option) |
| High hydraulic leg | 1.7m |
| Feeding efficiency | 15-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension（L*W*H) | 6300×2300×2950mm |
| weight | 13000Kg |
| Diesel engine | 194KW Cummins engine |
If you need an accurate quotation, customized configuration plan, product catalog, or operation videos, please provide the following information:
✔ Required drilling depth
✔ Borehole diameter
✔ Destination country / port
✔ Contact details (WhatsApp / WeChat / Email)
We will send you a detailed proposal and quotation within 1 hour!
Product Features
Easy and Flexible Full Hydraulic Control
The HY1000 industrial borehole drilling machine offers real-time adjustments for speed, torque, thrust axial pressure, and lifting speed, catering to various drilling conditions and construction processes.
Top-Drive Slewing Propulsion Lift
This feature simplifies the connection and disconnection of drill pipes, reducing auxiliary time and enhancing drilling efficiency.
Multifunctional Drilling Capabilities
The drilling rig supports various drilling methods, including down-the-hole (DTH) drilling and core drilling. It can be equipped with mud pumps, foam pumps, and generators based on user needs.
High Efficiency and Cost-Effective Operation
With full hydraulic functionality, the rig achieves fast drilling speeds and low auxiliary times, offering high operational efficiency and lower costs per meter drilled.
Enhanced Mobility and Versatile Chassis
Using high outriggers for easy loading and tracked walking for mobility in muddy conditions, the rig can be configured as a tracked or vehicle-mounted self-propelled chassis.
High-Quality Material
The rig’s frame is made from high-strength low-carbon alloy steel, ensuring durability and resistance to wear.

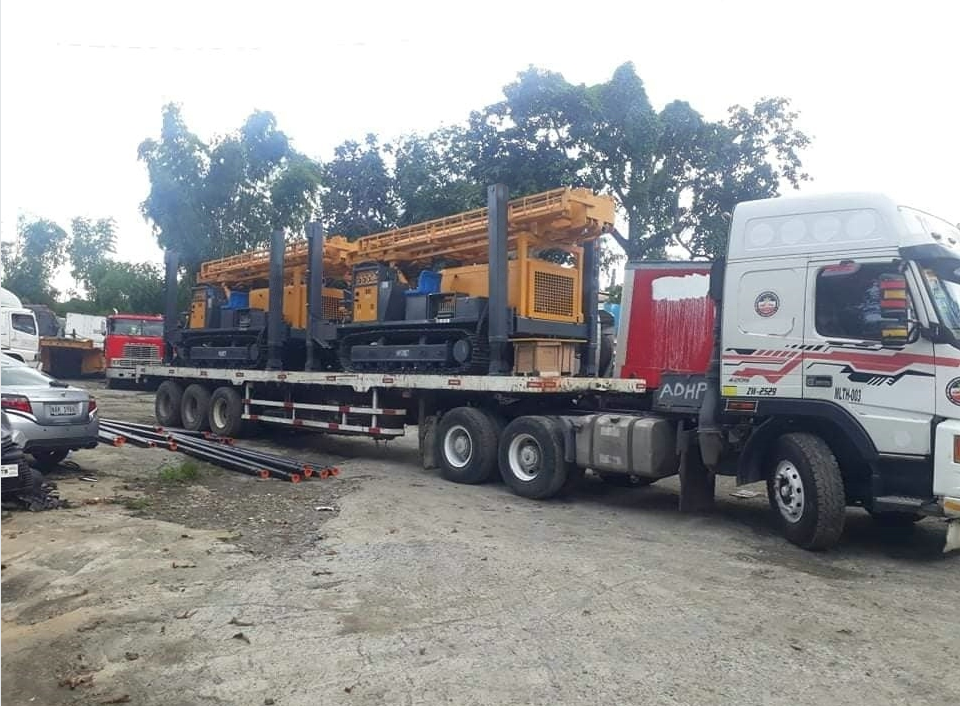

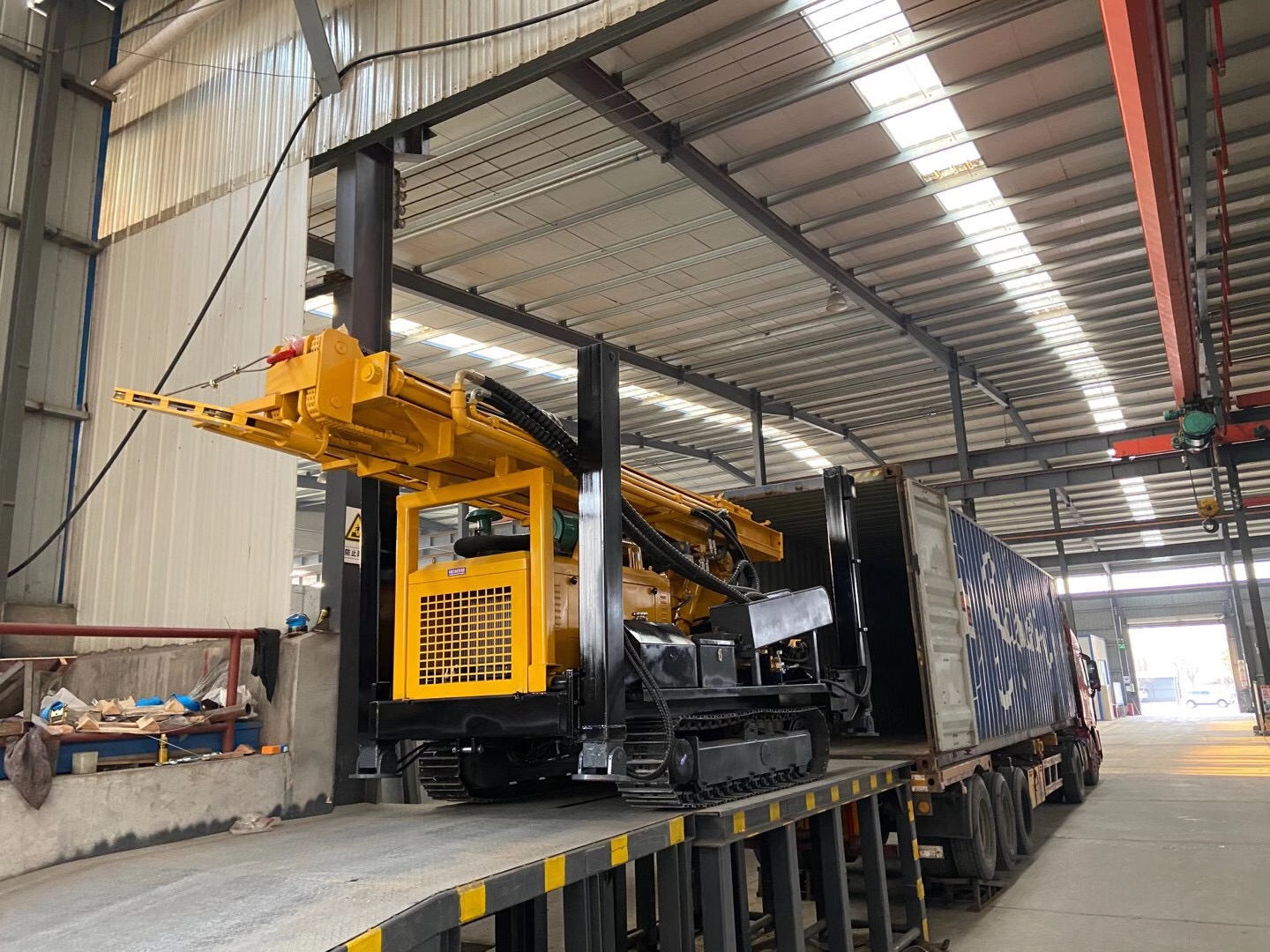

Delivery
In Worksite
After service
1,24/7 service by chat online and phone.
2, Lifelong and free technical support.
3, Service overseas: if you need, we can dispatch an engineer to your door.
