General Introduction
The KAISHAN LGCY diesel-driven screw air compressor is professionally engineered for harsh mining operations and field water well drilling projects, featuring high efficiency, high stability and strong environmental adaptability.
Optimized Screw Rotor Profile Design
1. High-efficiency Convex-Convex Rotor Meshing Structure
The optimized convex-convex meshing rotor profile effectively forms a stable hydrodynamic lubrication film during operation. It greatly reduces transverse air leakage in the rotor contact zone, significantly improves volumetric efficiency, and delivers superior rotor processing accuracy and assembly performance compared with conventional profiles.
2. Large Rotor, Low-Speed Operation Design
Adopting the core design of large rotor, large bearing and low rotating speed, its operating speed is 30%–50% lower than that of conventional peer products. Low-speed operation effectively lowers vibration, working noise and exhaust temperature, enhances overall rotor rigidity and operational stability. Meanwhile, it reduces sensitivity to tiny impurities and carbon deposits, greatly extending the service life of core components.
3. Wide Power Range and Low-Speed Direct-Drive Configuration
The product power covers a full range from 4KW to 355KW. Models from 18.5KW to 250KW adopt a direct-coupled structure without gearbox transmission for higher power output efficiency. The 200KW and 250KW versions are equipped with Level 4 high-efficiency direct-coupled motors, achieving an ultra-low rated speed of 1480 rpm for more stable and durable operation.
4. Superior National Energy Efficiency Standard
The whole series fully complies with and exceeds the national standard GB19153-2003 Limited Values of Energy Efficiency and Evaluating Values of Energy Conservation for Displacement Air Compressors, reaching industry-leading energy-saving performance.
5. Professional Adaptability for Drilling & Mining Scenarios

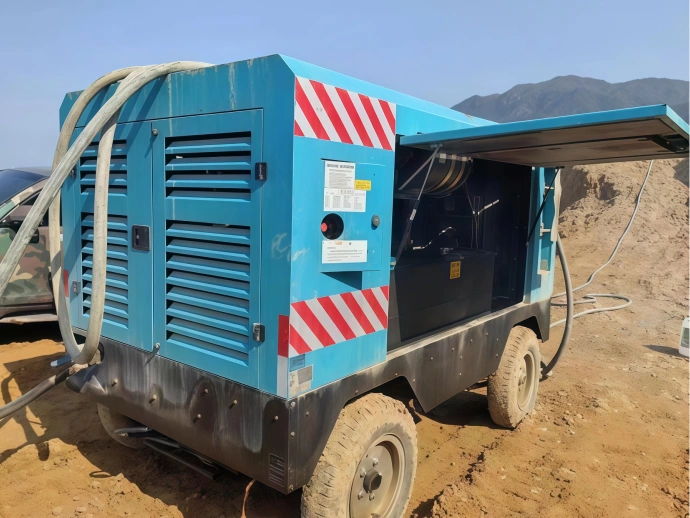

Tailored for field water well drilling and mining construction, the diesel-driven design eliminates reliance on fixed power supplies, enabling flexible outdoor operation in remote mountainous areas, farmlands and unpowered construction sites. With stable high-pressure and large-air-volume output, it perfectly matches DTH hammer drilling, downhole slag removal and well development procedures. Featuring low failure rate, strong dust resistance and high temperature resistance, the compressor can sustain long-duration continuous operation under harsh field conditions, fully meeting the high-intensity working demands of geological drilling and mining projects.

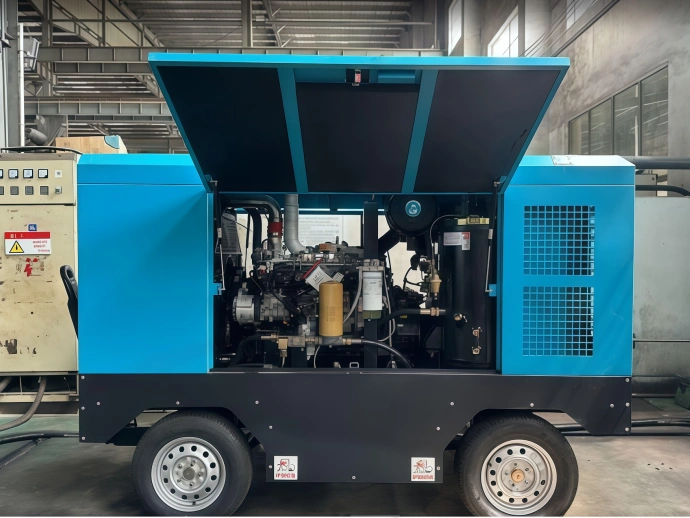

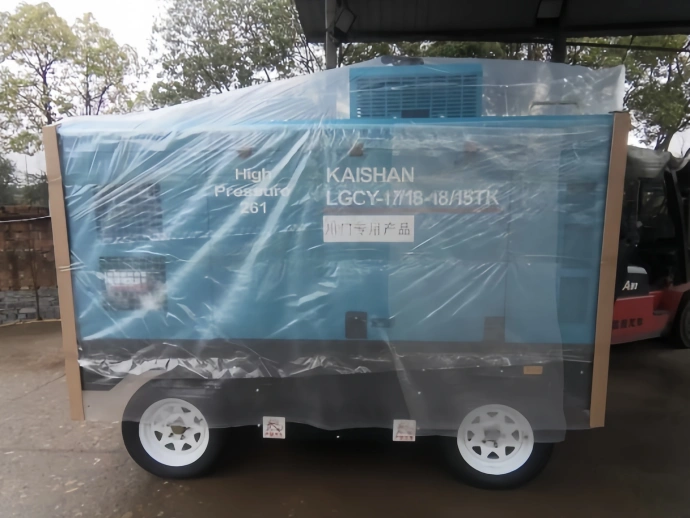

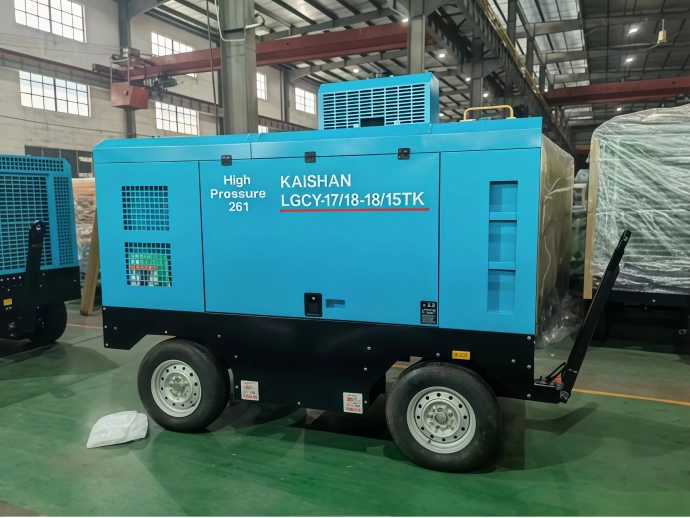

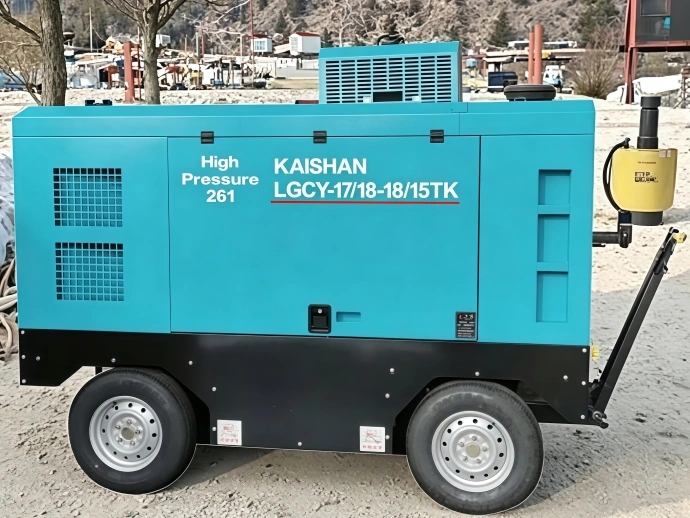

LGCY-17/18-18/15TK Kaishan Small Screw Air Compressor Technical Data
| Model | LGCY-17/18-18/15TK |
| Air Consumption | 17-18 m3/min |
| Working Pressure | 18-15 bar(1.8-1.5 Mpa) |
| Weight | 2200 KG |
| Outer Size | 3000*1520*2300 mm |
| Tyre Specification*Qty | 185/80R14 95S*4 |

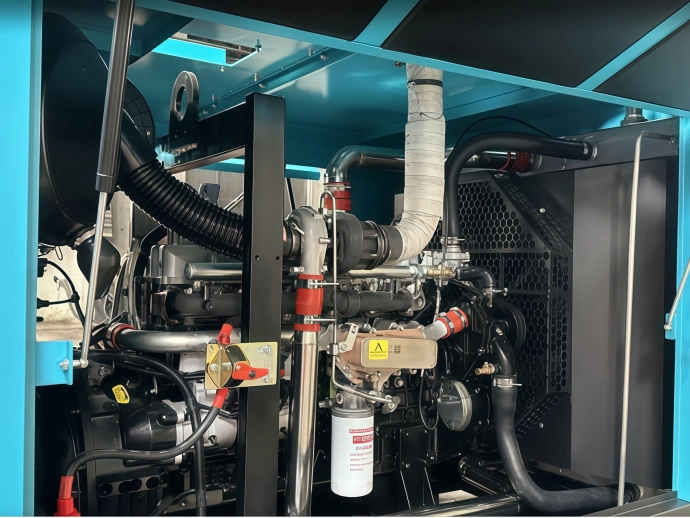

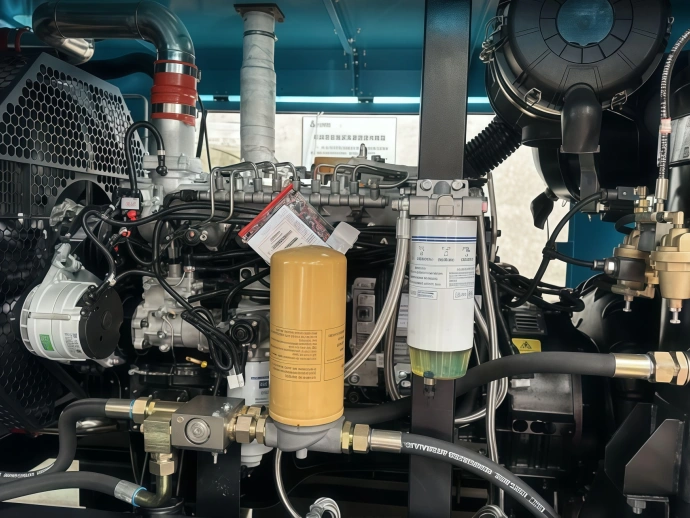

| Diesel Engine | |
| Manufacturer | Cummins |
| Model | QSB5.9-C210-30 |
| Type | Vertical, in line, water cooled |
| Air Intake Type | Supercharged and Mid-cooling |
| Cylinder diameter * stroke * number of cylinders | 102*120*6 |
| Displacement | 5.9L |
| Rated Speed | 2200 r/min |
| Unloading Speed | 1400 r/min |
| Diesel Engine Oil Capacity | 16.4 L |
| Fuel Tank Oil Capacity | 150 L |
| Voltage | 24 V |
| Compressor | |

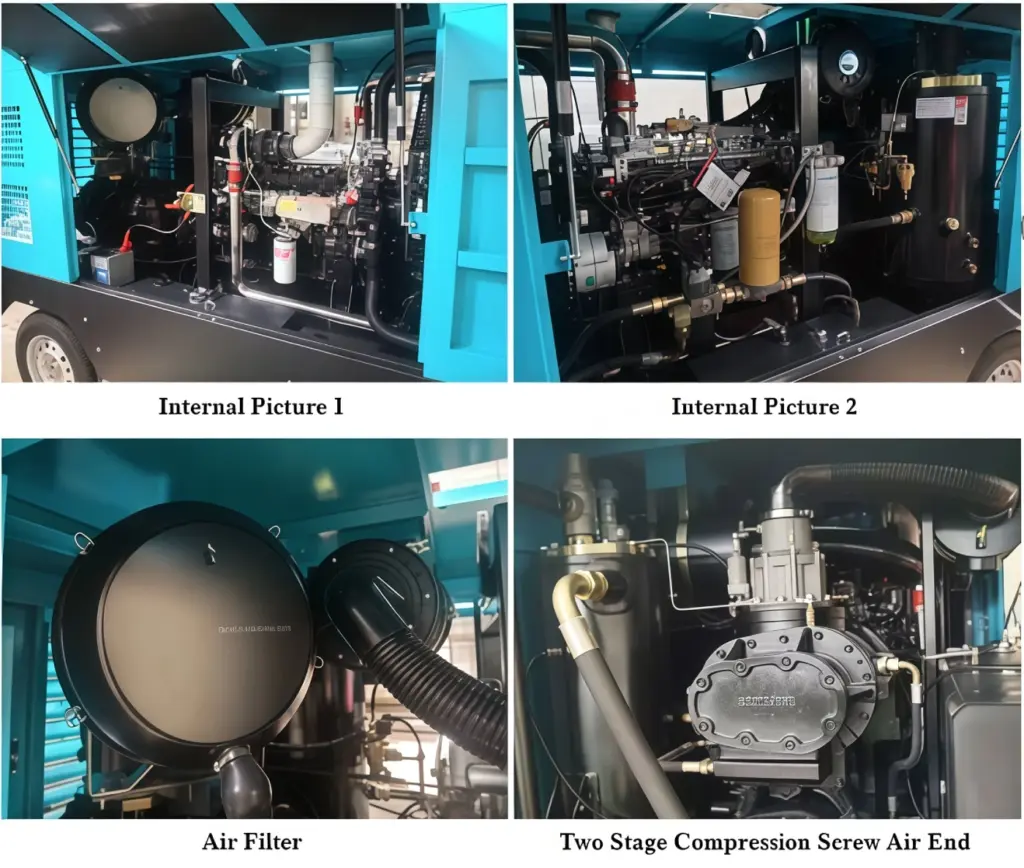

| Air End | SKY2-126NBG172-13 |
| Compression Stage | Two Stage |
| Compressor Oil Capacity | 36 L |
| Exhaust Interface | G2*1, G3/4*1 |
