General Introduction
The LGZJ-36/30-41/20K Kaishan screw air compressor is a high-efficiency, heavy-duty industrial air compressor built for harsh engineering and drilling environments. Certified with national Level II Energy Efficiency, this two-stage compression air compressor drastically reduces operational energy consumption, solving the core pain point of high power costs for long-term industrial operation.

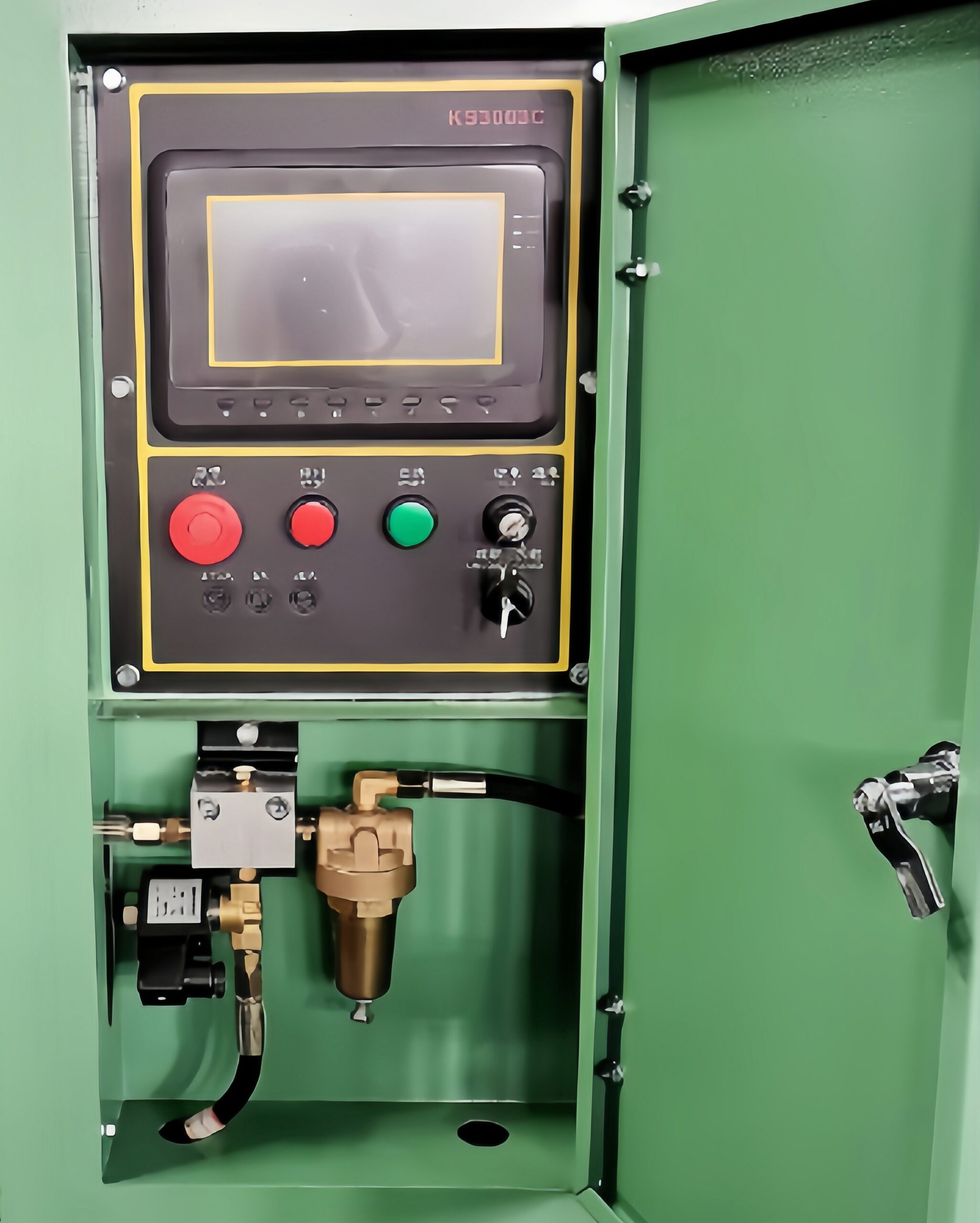

Engineered with human-centric ergonomic structure and an intelligent full-control system, the unit features a user-friendly intuitive interface, eliminating complex operation barriers for workers. It delivers stable, efficient, and smart air supply solutions for deep well drilling, mining, infrastructure construction, and other heavy industrial scenarios, effectively avoiding production delays caused by equipment operational failures.
Core Advanced Technology & Reliable Performance

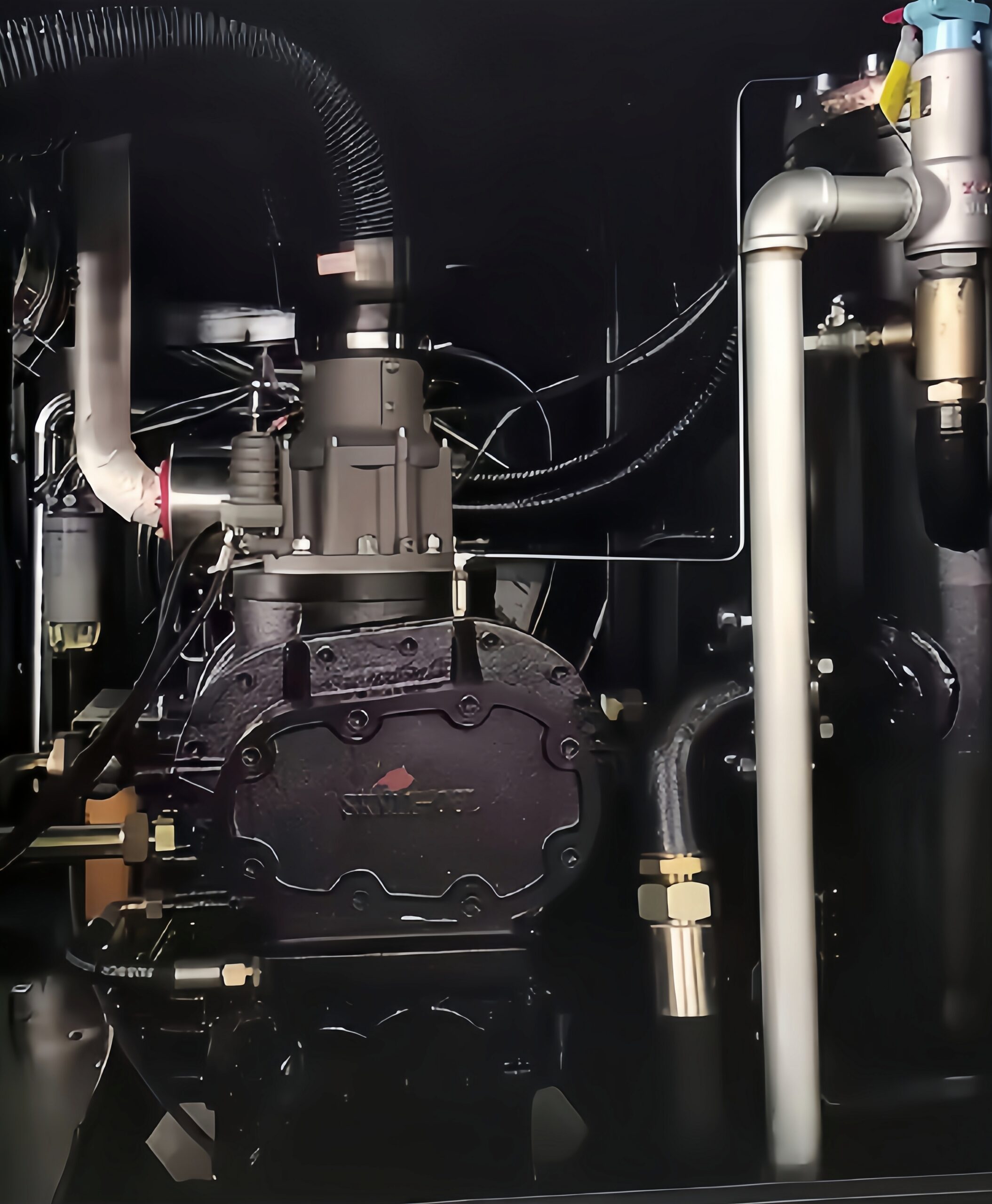

Driven by industry-leading patented technologies, this Kaishan industrial air compressor adopts the SKY patented screw main unit, supporting a maximum working pressure of 40 bar. Equipped with exclusive patented rotor profiles, the main unit achieves ultra-high compression efficiency and low energy loss compared with ordinary compressors.
The innovative two-stage compression structure and globally patented flexible lift valve design greatly enhance operational stability and air supply efficiency. Fitted with premium SKF bearings and a reinforced heavy-duty body structure, the compressor maintains continuous stable operation under high-load, dusty, and extreme-temperature working conditions, thoroughly solving the common industry problems of easy wear, insufficient pressure, and frequent shutdown failures of traditional compressors.
Technical Data
| Brand | KAISHAN |
| Model | LGZJ-36/30-41/20K |
| Working pressure | 3.0-2.0 Mpa |
| Air consumption | 36-41 m3/min |
| Engine brand | CUMMINS |
| Supporting power | 550HP |
| Exhaust interface | G2*1, G3/4*1 |
| Weight | 5800kg |
| Outer size | 3800*2160*2330mm |
Key Product Features

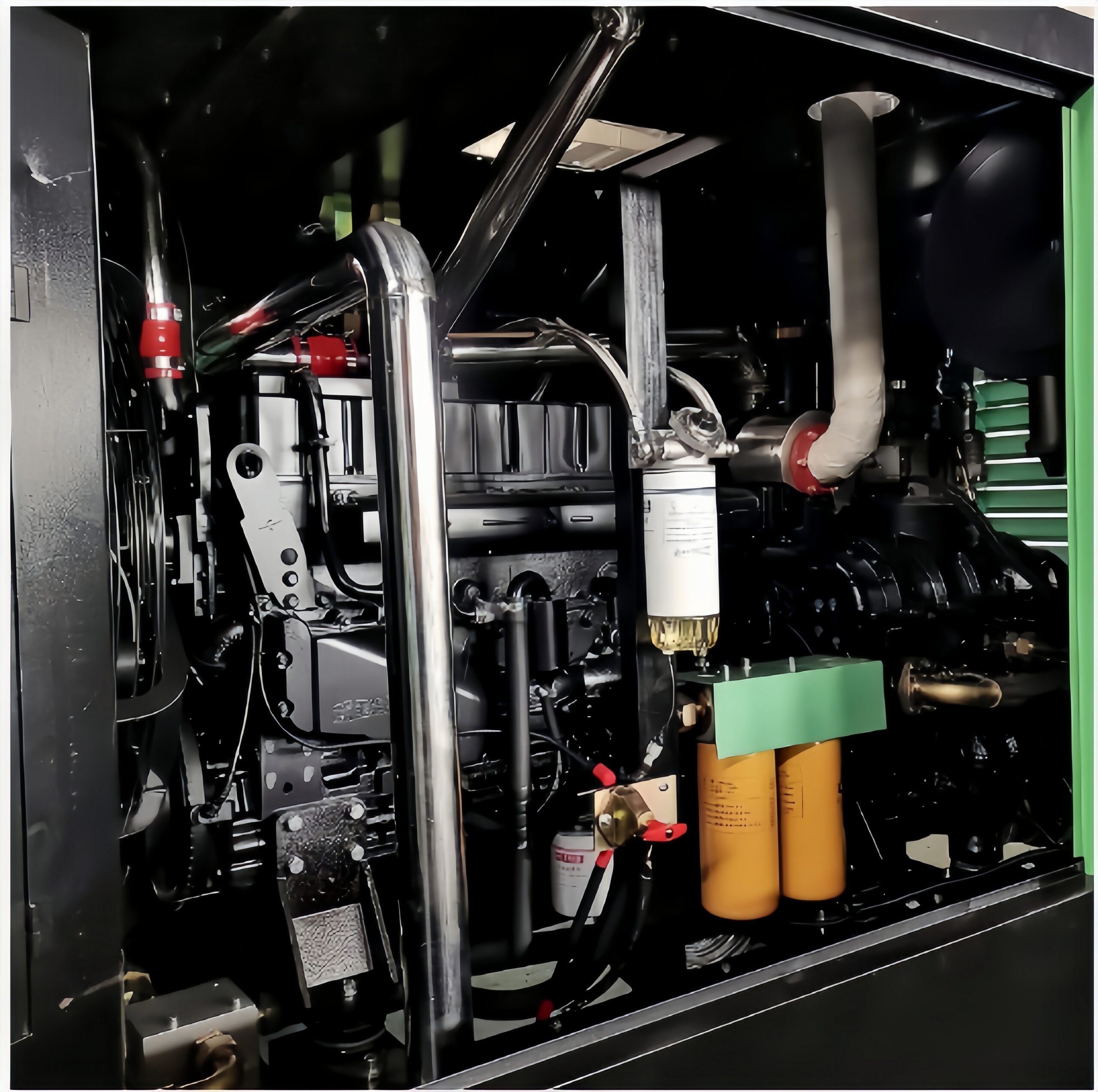

1. High-Power Cummins Diesel Engine, Low Fuel Consumption
Powered by an authentic Cummins diesel engine, the compressor realizes full-range optimal fuel combustion. It features strong power output, ultra-high operational reliability, and excellent fuel economy, effectively reducing long-term fuel costs for field operations and avoiding insufficient power in high-intensity drilling and construction work.
2. Ultra-Efficient All-Weather Cooling System
Developed with core R&D technologies from Kaishan’s North American R&D Center, the independent cooling system adopts separate oil, water, and air coolers matched with a large-diameter high-efficiency fan. It solves the pain points of high-temperature overheating shutdowns in summer and poor cooling effect in cold weather, keeping the compressor in optimal working condition in extreme high and low-temperature environments.
3. Optional Low-Temperature & High-Altitude Startup System
Equipped with a professional fuel heater and circulating heat exchanger, the system autonomously heats coolant and lubricating oil. It enables reliable instant startup in severe cold, high-altitude, and low-pressure environments, completely solving the problem of difficult startup or failure to start for field equipment in plateau and winter low-temperature scenarios.
4. Low Maintenance Cost & Easy Daily Servicing
The fully enclosed chassis and soundproof canopy design effectively reduce operating noise and improve on-site environmental compliance. The reserved wide-opening maintenance doors allow quick access to core components including air filters, oil filters, and separator cores. It greatly shortens equipment maintenance time, reduces downtime loss, and cuts daily after-sales maintenance costs for users.
5. Special Anti-Coking Industrial Lubricant
Matched with exclusive customized compressor lubricant, the product boasts stable viscosity and excellent chemical adaptability under ultra-high and ultra-low temperatures. It prevents oil coking, pipeline blockage, and component wear during long-term high-load operation, ensuring long-term stable service life of the equipment.
Industry Applications
Stable and sufficient compressed air is the core guarantee for smooth drilling and construction operations. During mechanical drilling, a large amount of heat and dust will be generated; insufficient air supply will lead to drill bit damage, dust blockage, and even sudden equipment failure, seriously delaying the construction progress.
The LGZJ-36/30-41/20K Kaishan mobile screw air compressor provides constant-pressure, high-flow stable air source, perfectly adapting to deep well drilling working conditions. It is widely applicable to highway and railway construction, open-pit mining, water conservancy projects, shipbuilding, urban infrastructure, new energy engineering, military industry, and other heavy industrial fields, serving as a reliable air supply equipment for global engineering projects.
Core Customer Pain Points Solved
- High energy consumption: Level II energy efficiency standard + high-efficiency patented rotor, greatly reducing electricity and fuel operating costs
- Unstable operation in extreme environments: All-weather cooling + low-temperature startup system, adaptable to high-altitude, severe cold and high-heat working conditions
- Frequent failures & short service life: SKF bearings + reinforced heavy-duty structure + anti-coking lubricant, reducing failure rate and extending equipment life
- Difficult maintenance & long downtime: Humanized quick maintenance design, saving time and labor costs
- Insufficient air supply affecting construction: Two-stage compression technology, stable high-pressure air supply to ensure continuous construction progress
