General Introduction

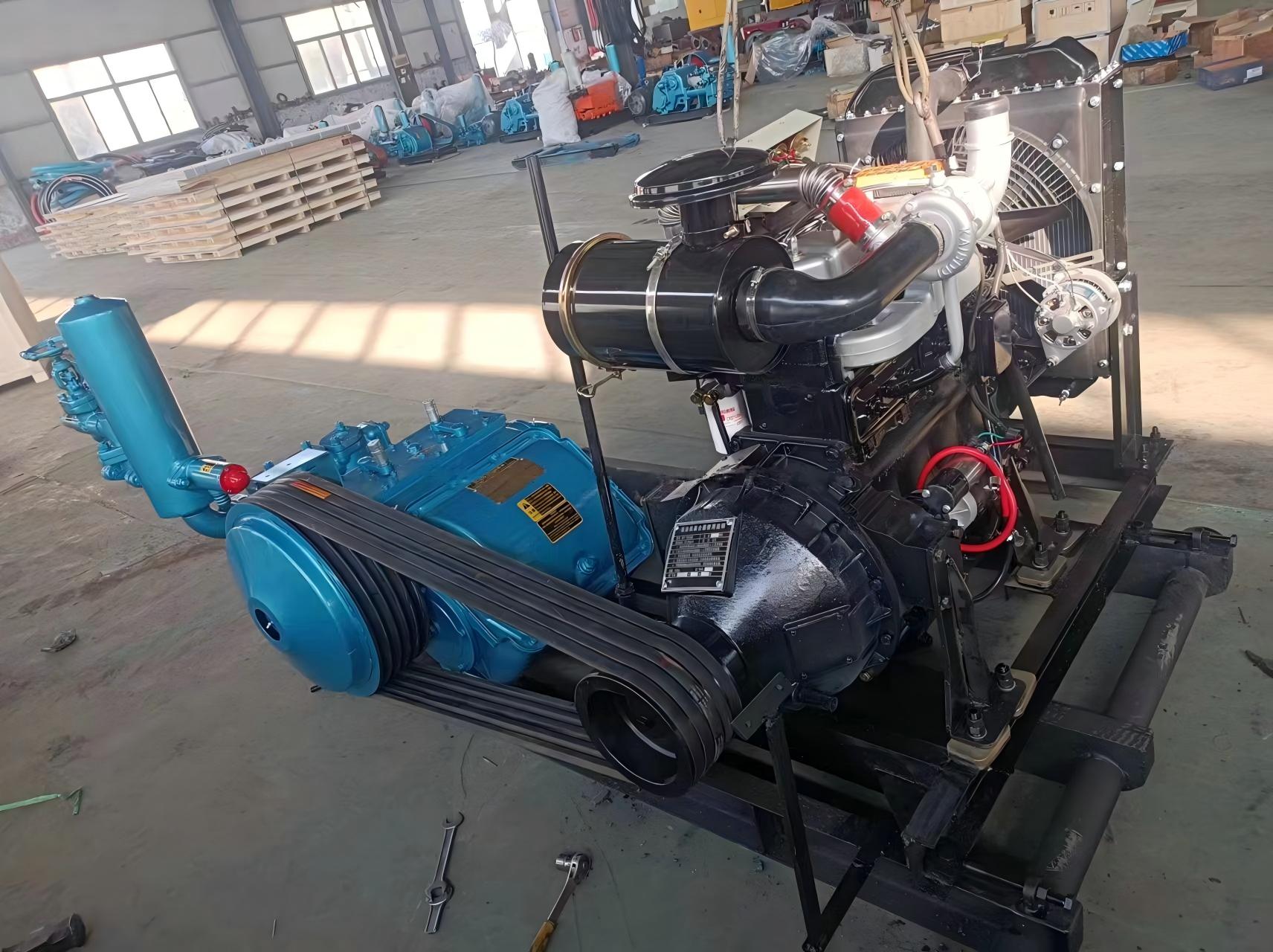

The BW600/10 mud pump is a professional horizontal triplex double-acting piston pump engineered for geological core drilling and general borehole drilling projects. As a core fluid supply device for drilling rig systems, this heavy-duty mud pump delivers stable and continuous flushing fluid circulation to ensure smooth drilling operations. It supports both clean water and high-viscosity thick mud delivery, fully adapting to complex on-site construction conditions.
Featuring a compact structure, small overall dimensions and lightweight design, the BW600 mud pump boasts outstanding portability. It is particularly suitable for mountainous areas, remote construction sites and mobile engineering projects where transportation and space are limited. Widely recognized for easy operation and flexible configuration, it is a cost-effective preferred drilling auxiliary equipment for global engineering contractors.
Specification
| Model | BW600/10 |
| Cylinder diameter | 100mm |
| Piston Stroke | 110 mm |
| frequency of stroke times/min | 232/162/109/76 |
| Flow rate L/min | 600/415/280/195 |
| Pressure Mpa | 3.5/5/7.5/10 |
| Power input KW | 55 |
| Diameter of suction pipe | 127mm (5”) |
| Diameter of discharge pipe | 63.5 mm (2-1/2”) |
| Overall dimensions (LxWxH) mm | 1500X890X1230 |
| Weight KGS | 1400 |
Wide Application Range
The BW600/10 mud pump is widely compatible with medium and small drilling rigs, suitable for 1500m deep geological core drilling & exploration drilling and300-500m water well drilling. It covers multiple industry scenarios as follows:
- Geotechnical & Engineering Survey: Geological exploration, geotechnical investigation for railway, highway, port, bridge, water conservancy, hydropower, tunnel and civil construction projects
- Mineral & Coal Exploration: Drilling and sampling for coal mine and ore resource exploration
- Water Well Drilling: Small-diameter domestic and industrial water well drilling projects
- Geothermal Engineering: Heat pump geothermal pipe laying and supporting drilling construction
- Foundation Piling: Small-diameter hole foundation piling drilling for construction infrastructure
Working Principle & Functional Value
The BW600 triplex mud pump serves as the core circulating equipment in geological drilling systems. During drilling operations, it continuously delivers mud or water slurry to the borehole. On one hand, the circulating fluid forms a protective film on the well wall to prevent collapse and sand leakage. On the other hand, it cools and lubricates drilling tools and carries underground rock debris and sediment back to the ground.
This closed-loop circulation mechanism effectively guarantees drilling safety and accuracy, reduces tool loss, and extends the service life of drilling rigs. It is an indispensable supporting device for high-quality and efficient geological drilling construction.
Product Strength
Different from ordinary water pumps, the BW600 industrial mud pump is professionally customized for harsh drilling environments. With robust mechanical structure, strong wear resistance and stable pressure output, it supports long-term continuous operation. Flexible configuration, low maintenance cost and high cost performance make it the ideal mobile mud circulation equipment for field engineering projects.
