Product Introdction

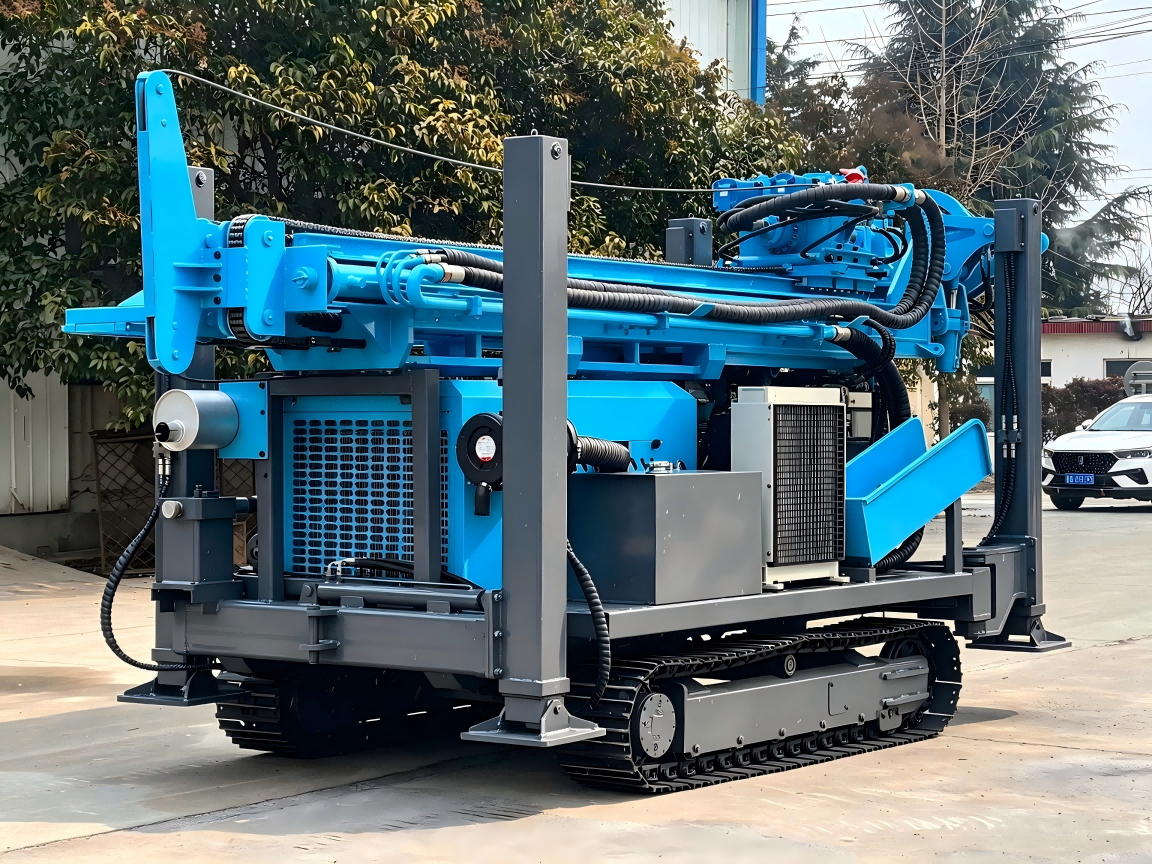

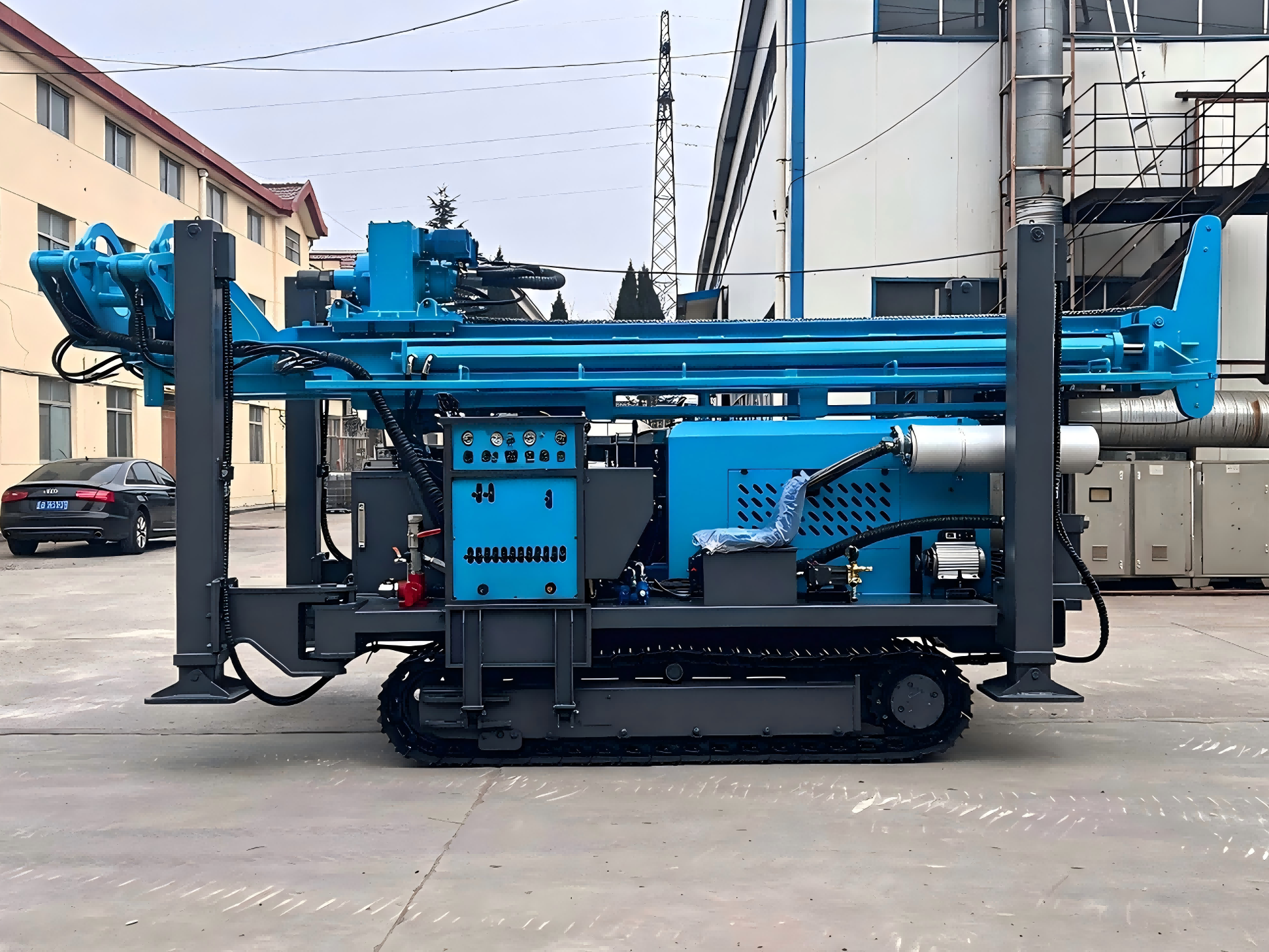

The HY600 deep water well drilling rig is a new-generation DTH drilling rig designed for high-performance water well construction. Furthermore, it adopts an upgraded air power system and advanced hydraulic technology. As a result, this drilling machine delivers faster drilling speed, lower energy consumption, larger rotary torque, and more flexible hole deviation adjustment.
Built with premium materials and a compact overall structure, the HY600 drilling rig features high working efficiency, low failure rate, excellent durability and great cost-effectiveness. In addition, operators can freely adjust the rig’s rotating speed, torque, thrust pressure, reverse pressure, feeding speed and lifting speed. This flexible adjustment perfectly meets various working conditions and different construction processes.
Application
Ideal for resource exploration drilling, hydrological well construction, civilian water supply wells, and agricultural irrigation wells, our water well drilling rigs are fully market-validated and widely recognized by global customers for reliable performance and economic benefits.
Technical Parameters
| Bore diameter（hammer） | 140-400mm |
| Bore depth | 600m |
| Air consumption | 17-42m³/min |
| Air pressure | 1.7-3.5Mpa |
| Pipe diameter | 102/108/114mm |
| Pipe length | 1.5m/2m/3m/6m |
| Lifting force | 26T |
| Drilling way | Air compressor drilling or mud pump drilling |
| One-time advance length | 6.6m |
| Fast lifting speed | 20m/min |
| Fast feeding speed | 40m/min |
| Max torque of rotary | 7500-10000Nm |
| Rotary speed | 40-130r/min |
| Hoist lifting capacity | 2T |
| Mud Pump flow | 600L/min or 850L/min (option) |
| High hydraulic leg | 1.7m |
| Feeding efficiency | 15-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension（L*W*H) | 6200×2200×2650mm |
| weight | 11500Kg |
| Diesel engine | 118KW Yuchai engine |
If you need an accurate quotation, customized configuration plan, product catalog, or operation videos, please provide the following information:
✔ Required drilling depth
✔ Borehole diameter
✔ Destination country / port
✔ Contact details (WhatsApp / WeChat / Email)
We will send you a detailed proposal and quotation within 1 hour!
Advantages & Features
Flexible Parameter Adjustment
Operators can adjust the rig’s rotating speed, torque, thrust axial pressure, reverse axial pressure, feed speed and lifting speed in real time. In addition, flexible parameter settings fully adapt to different drilling tool conditions and various construction processes.
Top-Drive Slewing Propulsion and Lifting System
This top-drive structure simplifies drill pipe connection and disassembly. It effectively shortens auxiliary working time and supports casing drilling operations on site.
Powerful Multifunctional Drilling Capacity
The HY600 drilling rig supports a wide range of drilling technologies, including down-the-hole drilling, air reverse circulation drilling, gas lift reverse circulation drilling, cutting drilling, roller drilling and tube drilling. Furthermore, core drilling function is currently under continuous upgrading. According to actual construction demands, users can equip the rig with mud pumps, foam pumps and generators. Meanwhile, multiple hoist devices come as standard configuration to meet diverse working needs.
High Working Efficiency
Benefiting from the full hydraulic top-drive slewing and propulsion lifting design, the rig matches various drilling processes and drilling tools. It features flexible operation, fast drilling speed and short auxiliary time, greatly improving overall construction efficiency.
Low Operating Cost
This rig adopts mature DTH drilling technology. DTH rock drilling delivers high penetration efficiency and effectively reduces the per-meter drilling cost for engineering projects.

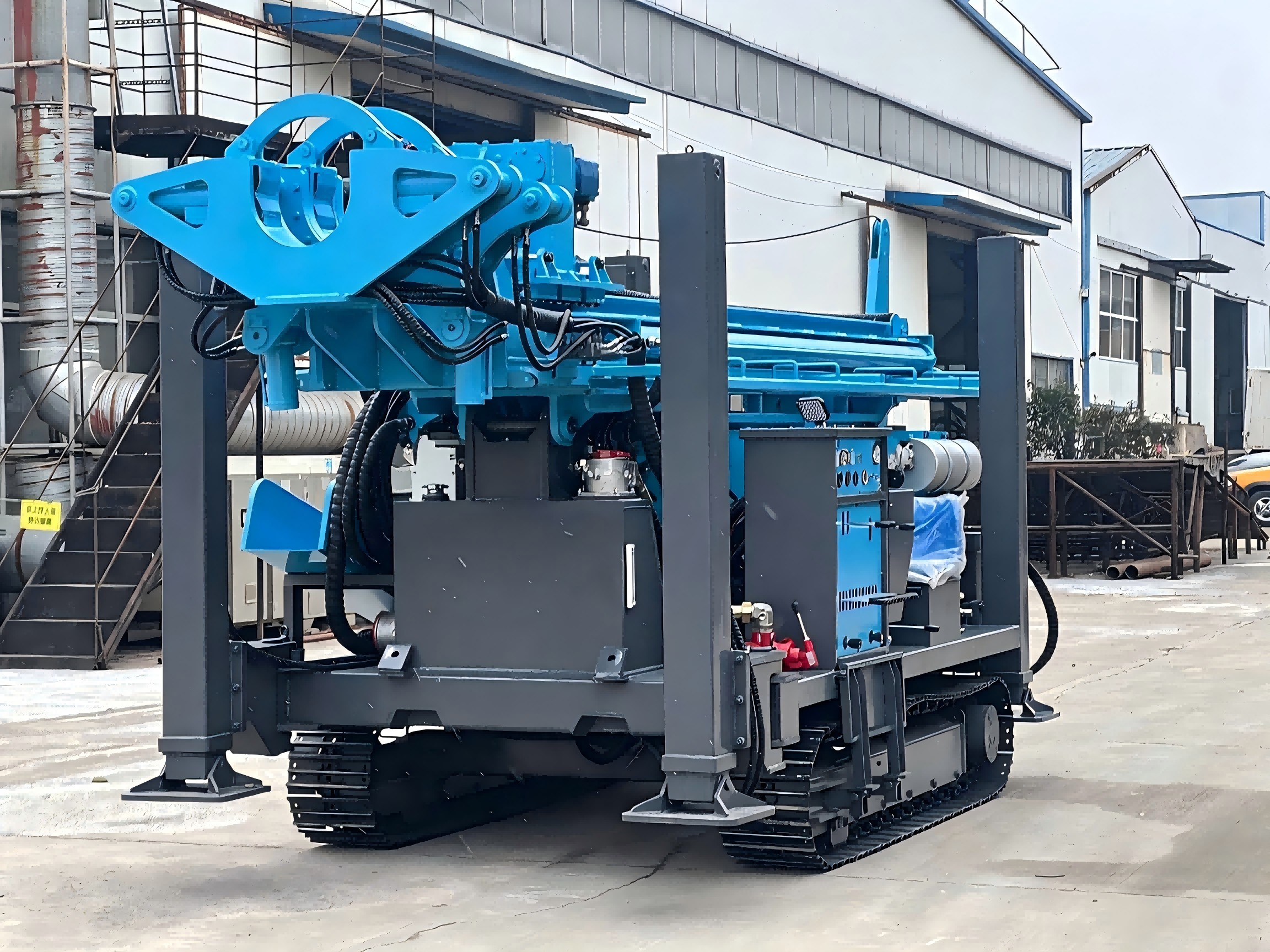

High Outriggers and Tracked Walking System
Equipped with high ground-clearance outriggers, the machine supports direct loading and transportation without cranes. Besides, the tracked walking structure enables stable and flexible movement on muddy, rugged field sites.
Positive and Negative Axial Pressure Adjustment
Each impactor requires matched axial pressure and rotating speed to achieve optimal impact efficiency. During drilling, the axial pressure acting on the impactor increases gradually as drill pipes are added. Therefore, users can adjust the positive and negative axial pressure valves on site to maintain the best working state of the impactor and ensure stable and efficient drilling performance.
Diversified Chassis Options
Customers can choose two chassis types according to construction scenarios, including tracked self-propelled chassis and vehicle-mounted self-propelled chassis.
High-Grade Overall Configuration
All core components and hydraulic systems adopt well-known brand accessories for stable and reliable performance. In addition, the main frame is made of high-strength low-carbon alloy steel. This material greatly enhances the overall structural strength and provides excellent wear resistance for long-term field work.

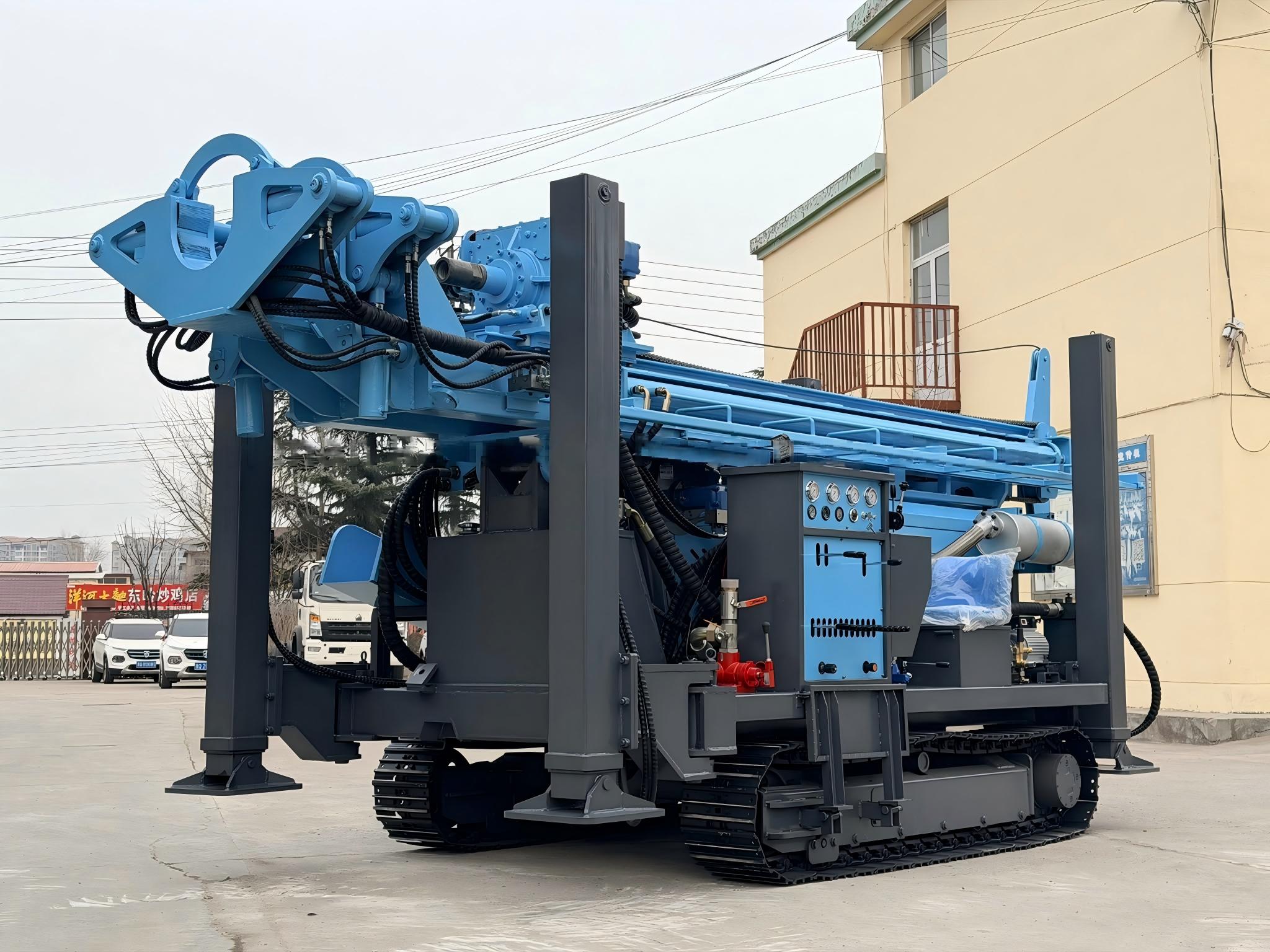

Reliable Diesel Power Engine
This full hydraulic water well drilling rig is powered by a 118KW Yuchai diesel engine, providing sufficient and stable power for deep well drilling operations.

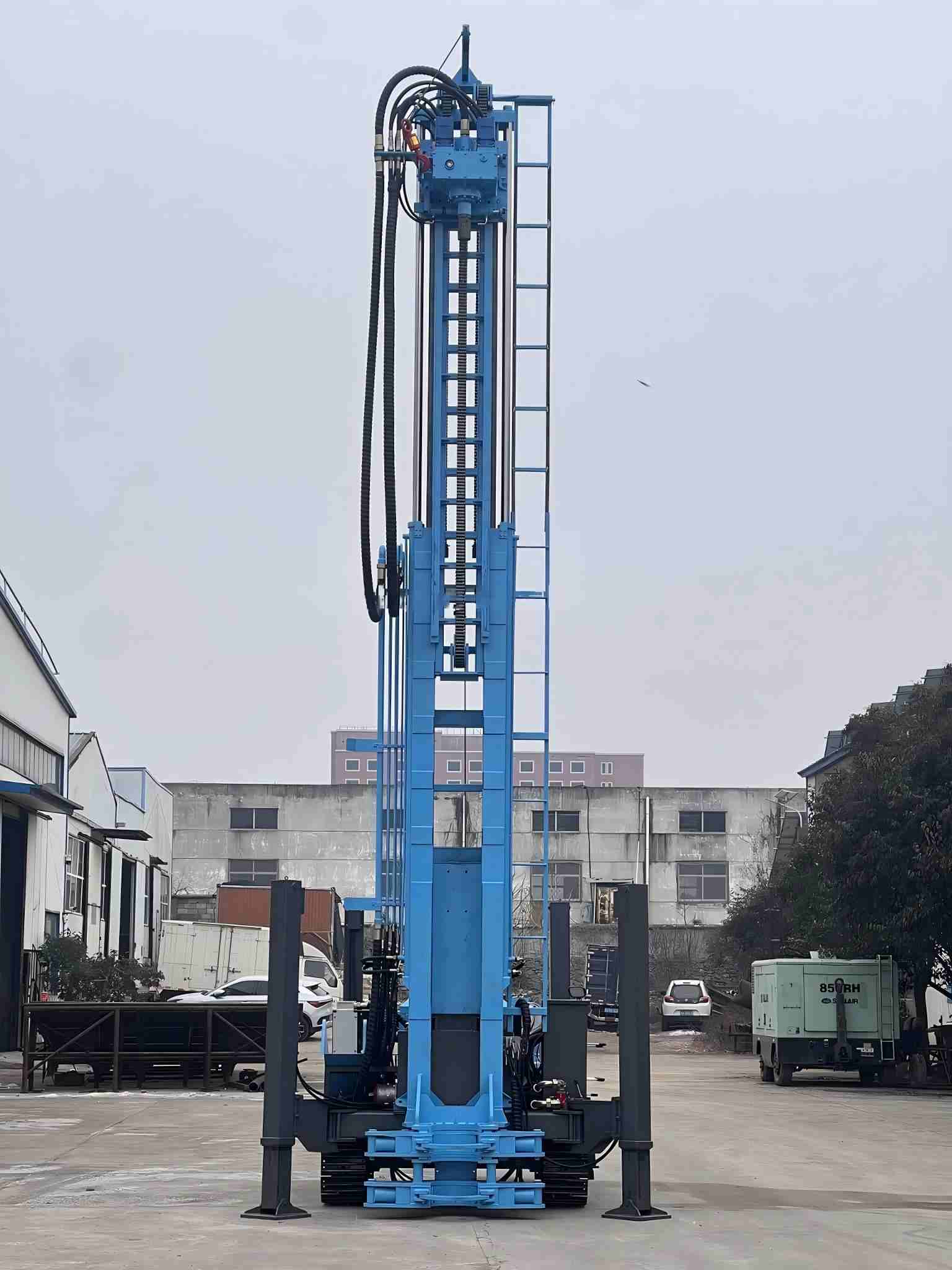

Strong Lifting Capacity
It adopts an optimized composite tower structure with a 6.6-meter long stroke. The dual-cylinder lifting system provides a maximum lifting force of 26 tons, meeting heavy-load drilling and pipe lifting requirements.
Delivery
In Worksite
After service
1,24/7 service by chat online and phone.
2, Lifelong and free technical support.
3, Service overseas: if you need, we can dispatch an engineer to your door.
