Product Description
The HY160P water well drilling rig is a versatile, cost‑effective portable hydraulic unit. It is easy to transport and simple to operate for various field‑site jobs.
Designed for multiple drilling tasks, this unit handles geothermal drilling, farm irrigation, residential yard and garden water well projects. It offers fast drilling speed and strong lifting power, and works great in soil, limestone and other soft‑rock formations.
This drilling rig adapts to many real‑world construction scenarios. It completes general borehole drilling and conventional water‑well work, with a maximum drilling depth of 160 m and drilling diameter ranging from 70 mm to 450 mm.
Besides water‑well projects, it can also do small foundation piling for farmhouses and factory buildings, with a maximum drilling diameter of 450 mm. It performs reliably across sand, soil, clay and soft rock, suitable for most civilian drilling environments.

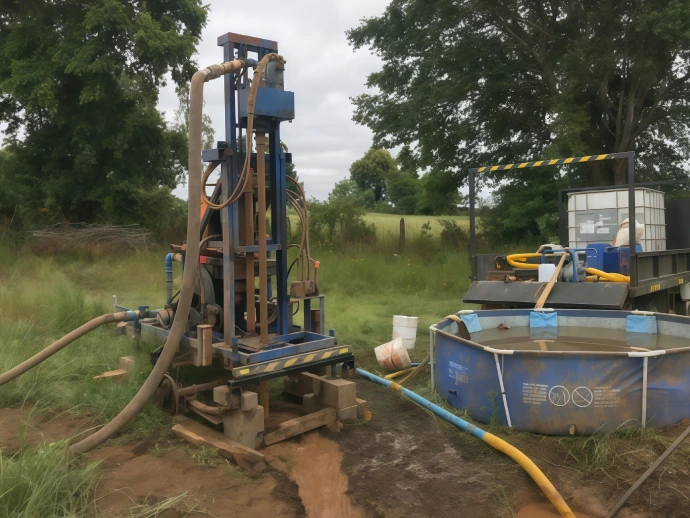

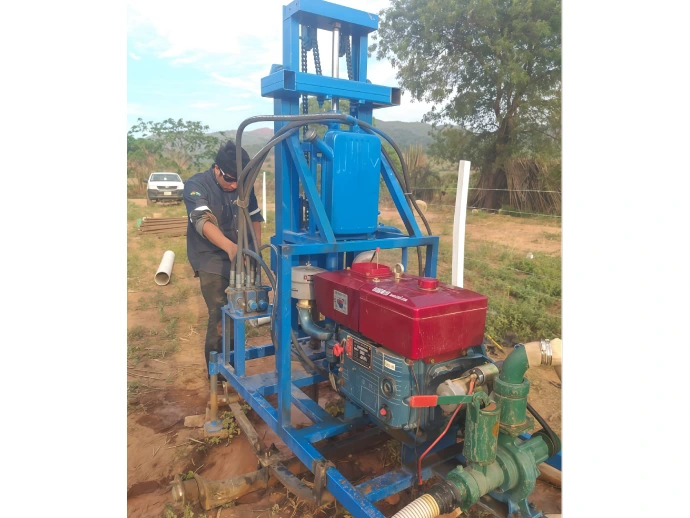

HP160A Portable Hydraulic Water Well Drilling Rig in Worksite
Features and Advantages
Featuring a compact and lightweight body structure, the rig effectively reduces energy consumption while ensuring stable working performance, delivering superior energy efficiency for long-term operation.
As an independently developed patented product, it adopts a unique and simplified drilling structure with fewer vulnerable parts, realizing more stable and reliable operation.
The compact overall size enables flexible and convenient transportation. It features a humanized control design with a simple operating logic, allowing operators to master machine operation quickly with minimal training.
It can efficiently drill through various soft and medium-hard strata including soil, sand and soft rock, fully meeting the drilling demands of most civilian construction scenarios.
The optimized hydraulic control system supports independent one-person operation, effectively reducing labor intensity and saving construction labor costs.
With a matched professional hydraulic power system, the rig delivers fast drilling speed and stable footage, greatly improving overall construction efficiency.
The whole machine is designed for simple and convenient daily operation and maintenance. Adopting high-quality structural materials, it boasts low failure rate and long service life.
Technical Parameters
| Model of drilling machine | HP160A |
| Drilling machine overall dimension(mm) | 1800*1000*2000 |
| Weight of Drilling machine (kg) | 1000 |
| Drill rod diameter (mm) | Ø50 |
| Drill rod length(mm) | 1500 |
| Rod change method | Full automatic screw thread |
| Drilling depth(m) | 160 |
| Diesel Motor Power (Hp/kw) | 22/16.2 |
| Drilling method | Percussive and rotating type |
| Drilling hole diameter(mm) | Within Ø 450mm |
| Stroke distance (mm) | 2000 |
| Hosting capacity (kg) | 1500KG |
Application
The HY160P water well drilling rig fits a wide range of water‑well projects. Common use cases include farmland irrigation wells, courtyard wells, garden wells and household drinking water wells.
This unit comes with reliable hydraulic components for stable field performance. Simple maintenance helps reduce your later operating costs. It is well‑suited for small‑scale contractors and private well‑drilling jobs.
You may also check our crawler drilling rig for some depth projects.
