Products Descriptio

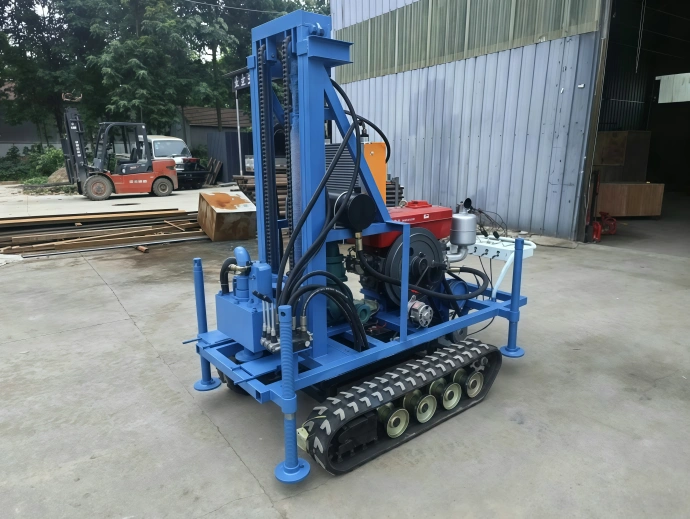

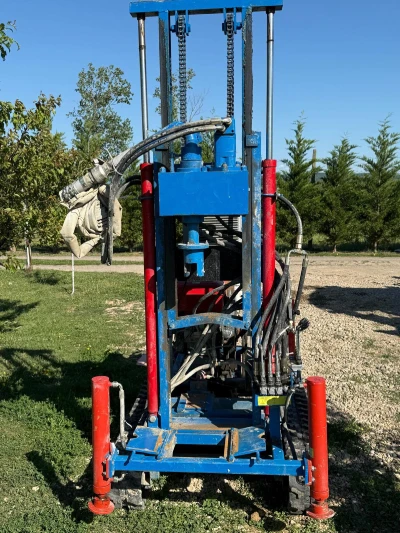

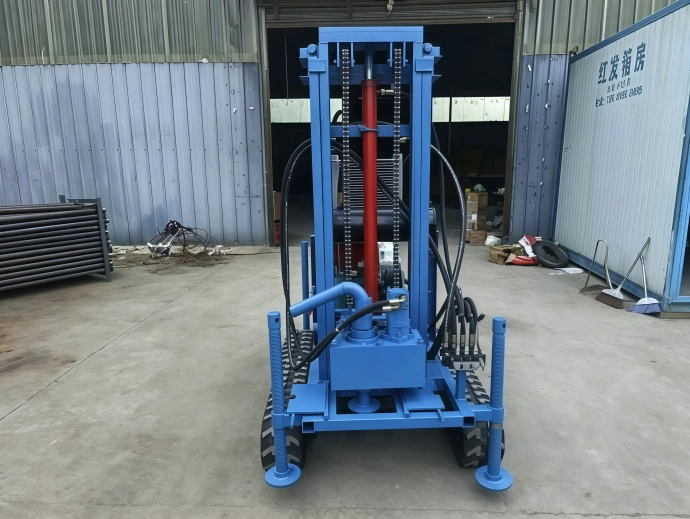

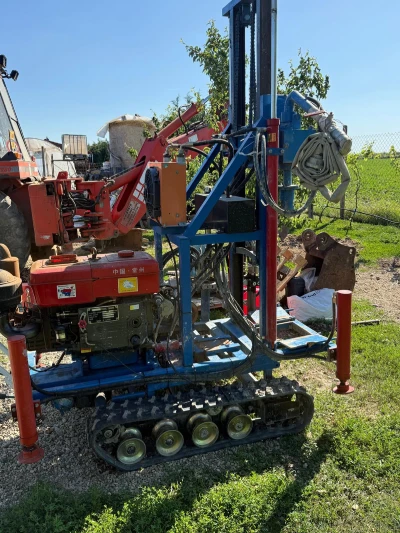

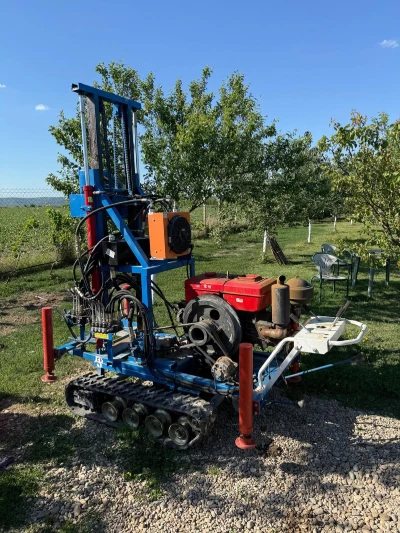

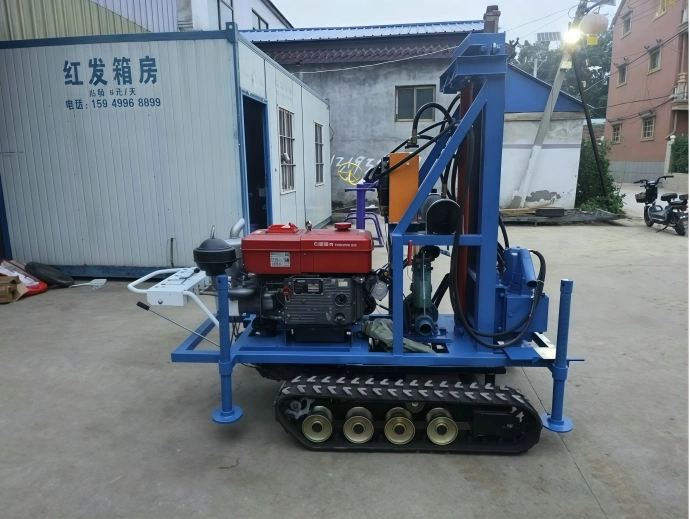

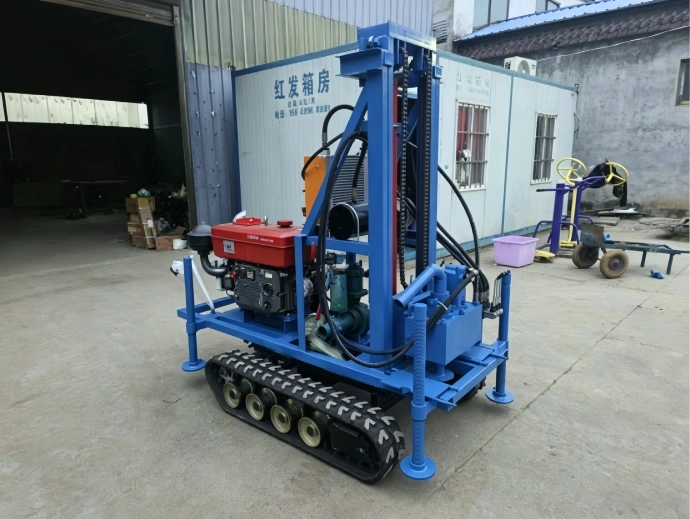

The HP160B small hydraulic water well drilling rig is the preferred option for numerous small‑scale water‑well drilling projects and household shallow well drilling, boasting portable structure. It achieves a maximum drilling depth of 160 m and a drilling diameter ranging from 70 mm to 450 mm, with a maximum drilling diameter of 450 mm. This compact crawler‑type water‑well drilling machine is fitted with rubber crawler tracks for mobility. Compared with wheeled alternatives, it delivers stable operation even on muddy, uneven and other challenging terrains.
It features fully‑automatic threaded drill rod changing, cutting rod‑changing time by roughly 30% versus conventional solutions for higher working efficiency. The threaded joint provides solid connection to avoid drill‑rod drop‑off risks. For power supply, it is driven by a 35Hp (25.8 kW) diesel engine, generating strong power and good adaptability to all kinds of tough working conditions.
Ergonomically‑designed control handles perfectly fit hand‑gripping postures, lowering operator fatigue during long‑hour work. The reasonably‑arranged control panel enables quick onboarding even for new operators. The main unit reaches a 1500 KG load‑bearing capacity, built robust and long‑lasting to guarantee reliable service life and operational safety. This compact well drill machine is available in stock, supporting priority shipment for time‑sensitive small water‑well drilling assignments.
Features and Advantages
Featuring a compact and lightweight body structure, the rig effectively reduces energy consumption while ensuring stable working performance, delivering superior energy efficiency for long-term operation.
As an independently developed patented product, it adopts a unique and simplified drilling structure with fewer vulnerable parts, realizing more stable and reliable operation.
The compact overall size enables flexible and convenient transportation. It features a humanized control design with a simple operating logic, allowing operators to master machine operation quickly with minimal training.
It can efficiently drill through various soft and medium-hard strata including soil, sand and soft rock, fully meeting the drilling demands of most civilian construction scenarios.
The optimized hydraulic control system supports independent one-person operation, effectively reducing labor intensity and saving construction labor costs.
With a matched professional hydraulic power system, the rig delivers fast drilling speed and stable footage, greatly improving overall construction efficiency.
The whole machine is designed for simple and convenient daily operation and maintenance. Adopting high-quality structural materials, it boasts low failure rate and long service life.
Technical Parameters
| Model of drilling machine | HP160B |
| Walking way | Rubber crawler mounted |
| Drilling machine overall dimension(mm) | 2300*1080*2000 |
| Weight of Drilling machine (kg) | 1000 |
| Drill rod diameter (mm) | Ø50 |
| Drill rod length(mm) | 1500 |
| Rod change method | Full automatic screw thread |
| Drilling depth(m) | 160 |
| Diesel Motor Power (Hp/kw) | 25/18.6 |
| Drilling method | Percussive and rotating type |
| Drilling hole diameter(mm) | Within Ø 450mm |
| Stroke distance (mm) | 2000 |
| Hosting capacity (kg) | 1500KG |
Applications of HP160B Small Hydraulic Water Well Drilling Rig
The HP160B small hydraulic water well drilling rig serves multiple practical drilling projects. It is widely used for farm irrigation water wells, courtyard & garden domestic water wells, geothermal hole drilling, general borehole drilling, as well as small foundation piling for farmhouses and factory workshops. This unit performs reliably in sand, clay, soil and soft‑rock strata for most civilian drilling jobs.
