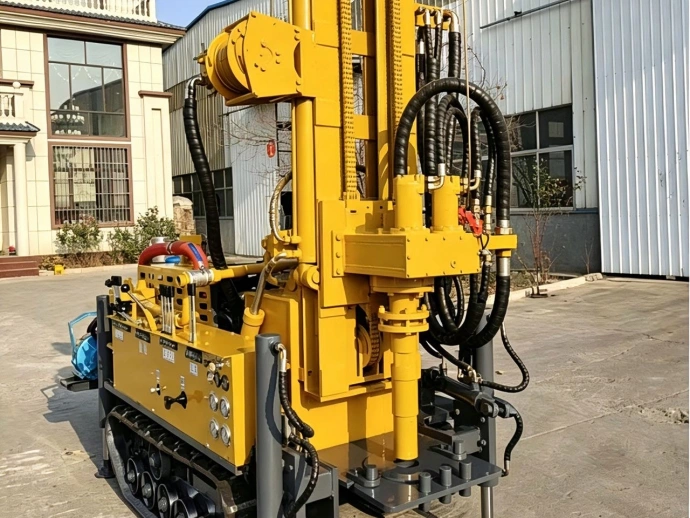

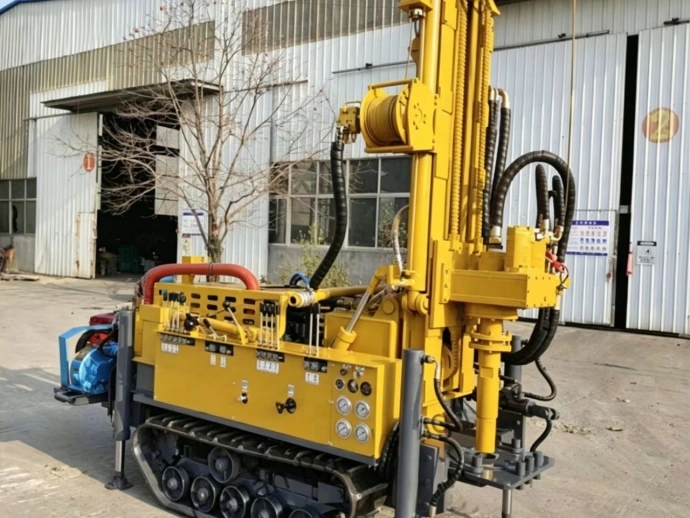

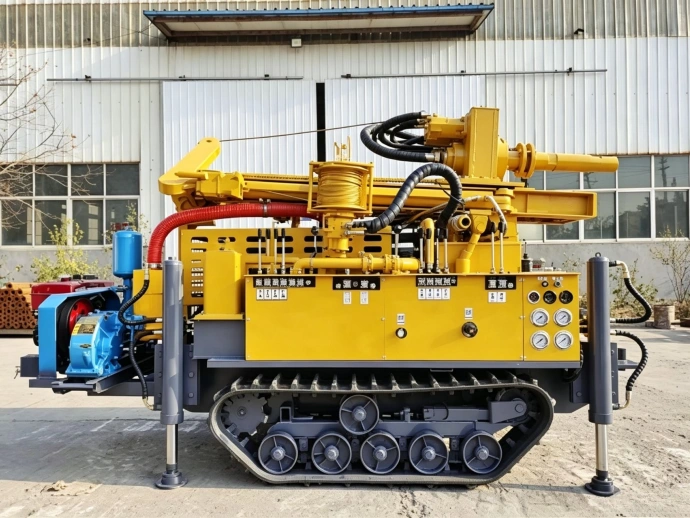

About HY150S Hydraulic Water Well Drilling Machine
The HY150S mini water well drilling rig is an independently‑developed product of our company. It supports both pneumatic DTH drilling and mud pump rotary drilling, enabling fast penetration in hard rock formations. In addition, it comes with four heavy‑duty hydraulic outriggers, making this water well drilling machine extremely easy to transport.
Furthermore, the rig adopts the latest advanced hydraulic technology, delivering low fuel consumption, high rotary torque, and user‑friendly operation. It is widely applied in various projects, including deep water well drilling, agricultural irrigation well drilling, geothermal well drilling, exploration borehole drilling, and miniature pile driving. Thanks to its strong performance, the HY150S reaches a maximum drilling depth of 150 meters.
Besides, we equip this unit with a robust 42 kW Yunnei diesel engine that provides steady and sufficient power output. Its rotary head generates a maximum torque of 4,600 N·m and offers a 12‑ton lifting capacity. Despite its compact footprint, this small drilling rig delivers outstanding drilling capacity. It uses 2‑meter drill rods for simple and fast rod loading and unloading.
Moreover, we manufacture this compact drilling rig with premium raw materials. It features a sleek, compact structure, high working efficiency, low failure rate, excellent cost‑effectiveness and a long service life. Our drilling rigs have been fully verified by market practice, and they earn consistent positive feedback from global customers.
Advantages & Features
The machine weighs only 2,300 kg with overall dimensions of 2300 × 1200 × 1900 mm.

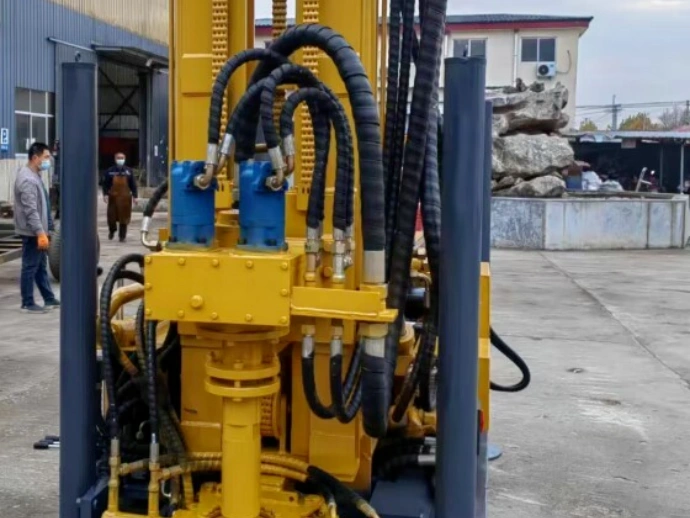

It is compatible with both mud pumps and air compressors. Twin rotary motors greatly boost rotary torque and rotation speed.
Powered by a 42 kW Yunnei engine, it drills to a maximum depth of 150 m with borehole diameters ranging from 90 mm to 300 mm.
They facilitate convenient truck transportation and ensure high stability during drilling operations.
The hydraulic circuit, supporting components, and overall structure have undergone comprehensive optimization to enhance overall performance and working efficiency.
Perfect for water well construction in yards and narrow construction sites.
Technical Parameters
| Bore diameter（hammer） | 90-300mm |
| Bore depth | 150m |
| Air consumption | 17-31m³/min |
| Air pressure | 1.7-2.5Mpa |
| Once-time advance length | 2.4m |
| Pipe diameter | 76mm/89mm |
| Pipe length | 2m |
| Push force | 4T |
| Lifting force | 12T |
| Max torque of rotary | 3500-3800Nm |
| Rotary speed | 40-65r/min |
| Mud Pump flow | 200L/min (option) |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension（L*W*H) | 2300×1200×1900MM |
| weight | 2300kg |
| Diesel engine | 42KW Yunnei engine |

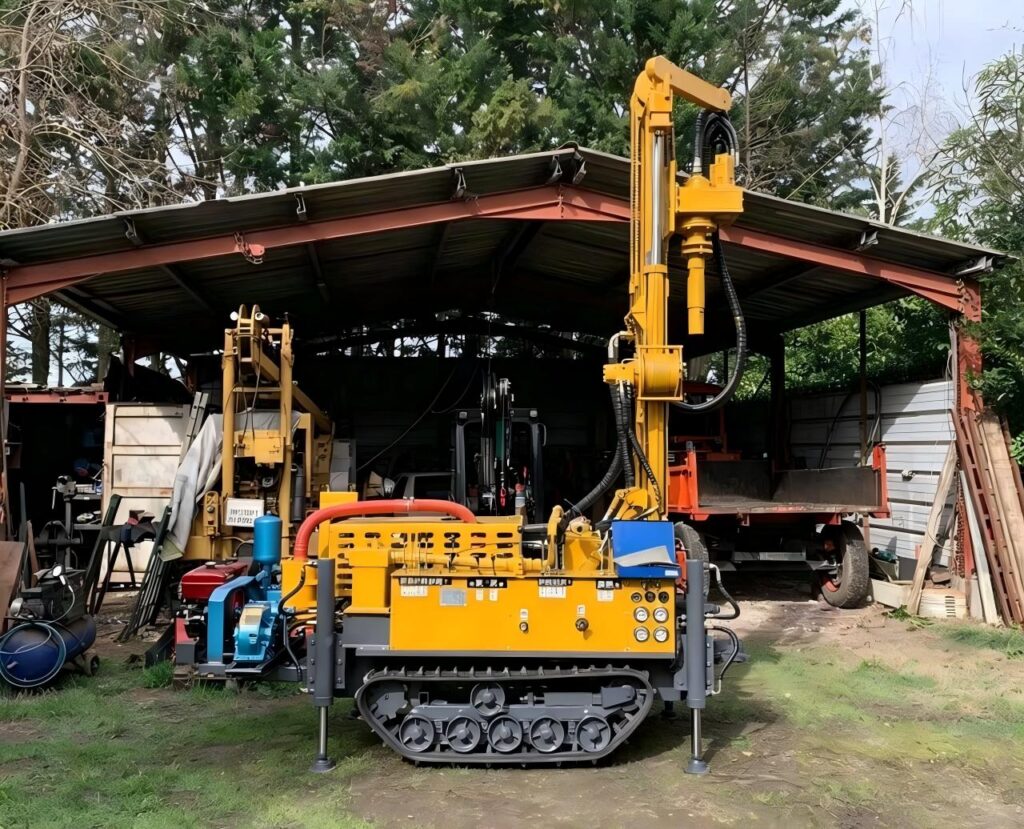

HY150S water well drilling rig delivered to European customer site
Application
This HY150S water well drilling rig is widely used for domestic drinking‑water wells, farm irrigation wells, and small geothermal boreholes.
It works well in mountain areas, hilly zones and complex construction sites, suitable for both rock and soil formation drilling projects.

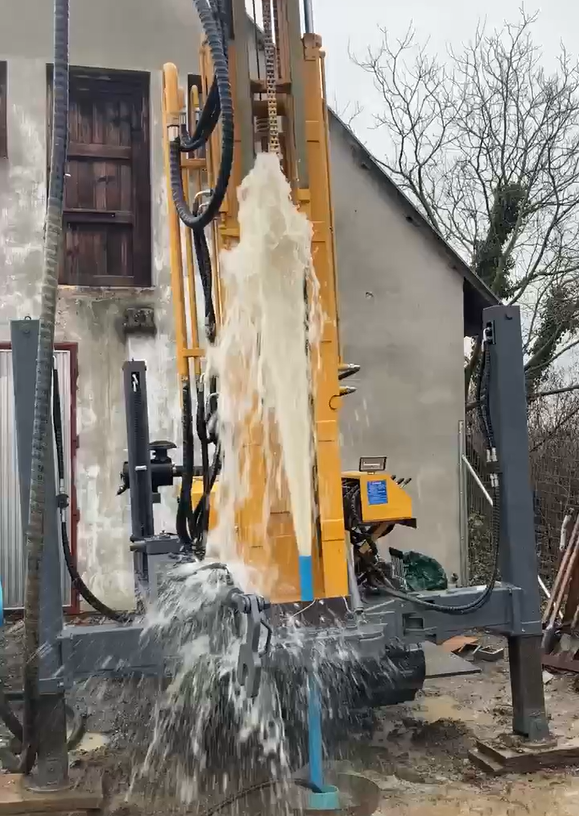

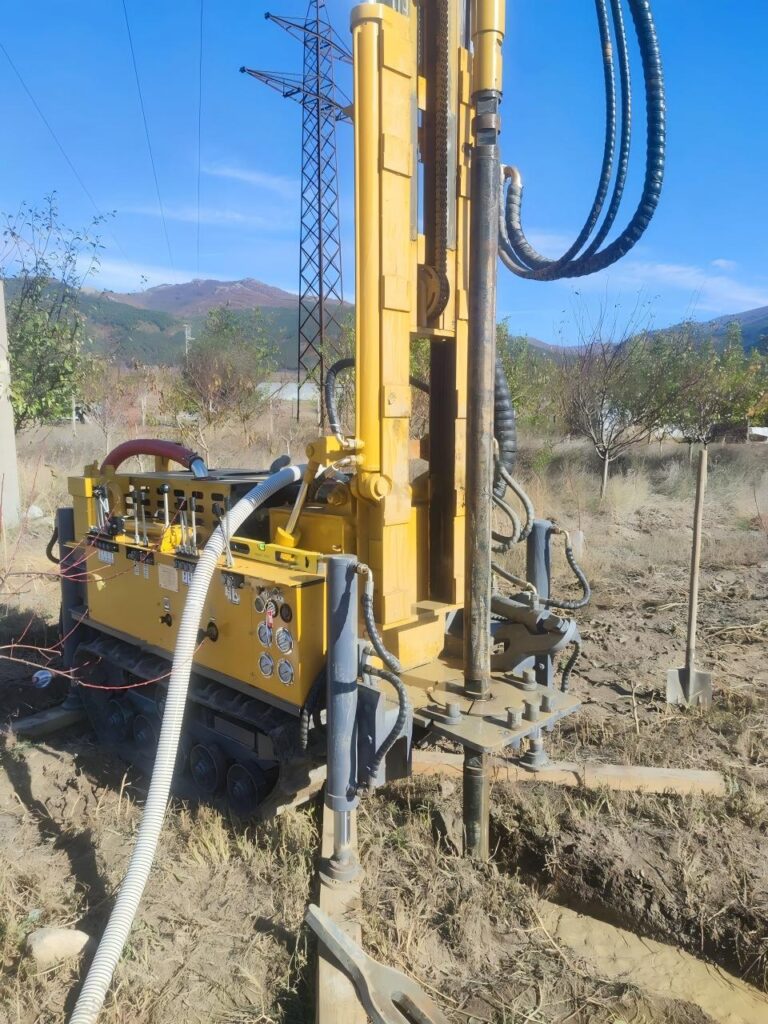

HY150S Small Water Well Drilling Rig in Worksite
