General Introduction

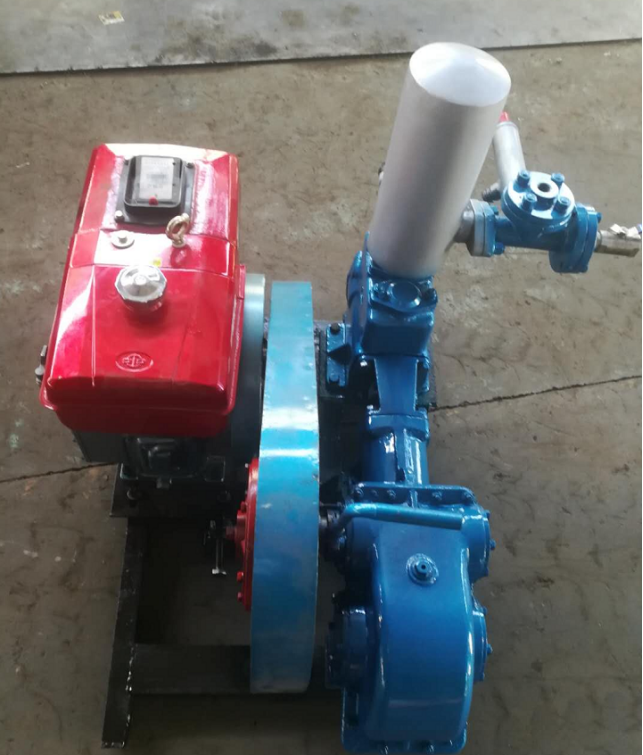

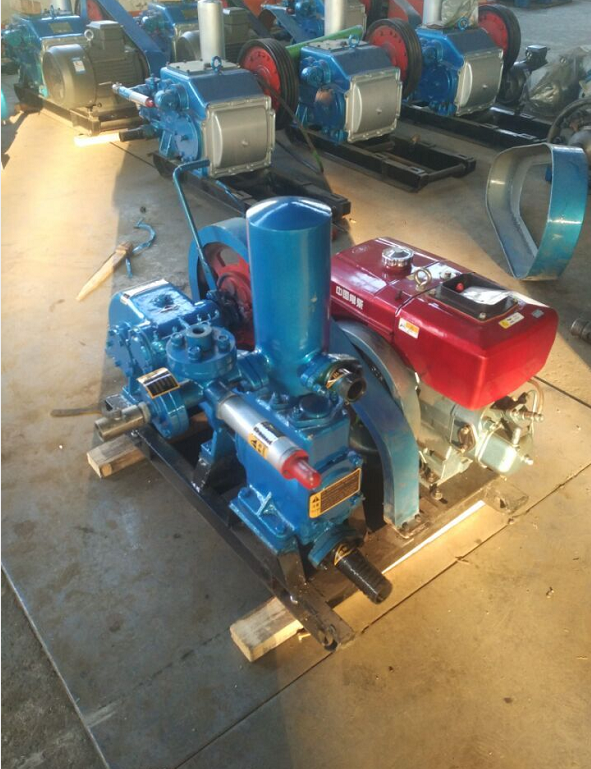

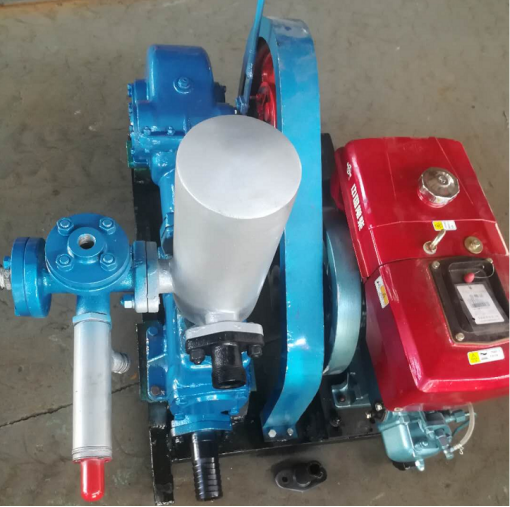

BW160 mud pump is one single cylinder piston pump ,with single cylinder diesel engine, First gear constant speed, flow: 160L / min, max pressure: 1.3mpa , this mud pump is mainly used for drilling projects
BW160 mud pump delivers professional mud circulation support for all drilling rigs. First of all, it matches all drilling equipment models perfectly and maintains stable mud flow during all field drilling tasks. Meanwhile, this high-efficiency slurry pump pushes steady mud into drill holes actively in the construction process. After that, it forms a tough protective coating on the hole walls, lubricates drilling tools completely, and transports underground rock debris to the ground surface. Therefore, it significantly improves overall drilling efficiency and keeps on-site construction safe and stable all the time. In short, this core working mechanism makes it a fundamental accessory for standard core drilling operations.
Apart from reliable core performance, the BW160 mud pump owns outstanding structural and functional advantages. For one thing, it outputs stable working pressure, achieves lasting circulation performance, and adopts a compact, space-saving body structure. For another thing, it adapts fully to geological exploration and mineral prospecting projects within 300-meter drilling depth. Besides, it serves as essential auxiliary equipment for core drilling, mineral exploration and engineering geological survey. Additionally, the equipment runs smoothly with extremely low failure rates and allows operators to finish daily maintenance easily. Consequently, these comprehensive strengths make it the best matching device for small and medium-sized drilling rigs.
Core Functions & Characteristics
- Bw160 mud pump is a portable mud pump, which is mainly used to match with small-diameter geological exploration and engineering exploration drilling rigs with drilling depth of less than 300m;
- this mud pump is Small volume, light weight, simple operation and easy relocation;
- It can transport mud with sand content less than 5% or other liquids with pH value of about 7 ~ 8.
BW160 single cylinder pistion pump is the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.
Specification
| Model No.: | BW160 | ||||
| Cylinder diameter | mm | 95 | |||
| Stroke | mm | 85 | |||
| Pump speed | Times/min | 165 | |||
| Flow | L/min | 160 | |||
| Pressure | Mpa | 1.3 | |||
| power | 5.88 kW | ||||
| Dimension size | 1110 x 725 x 965 mm | ||||
| Weight | 200KGS | ||||
Application
BW160 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 300meter.
