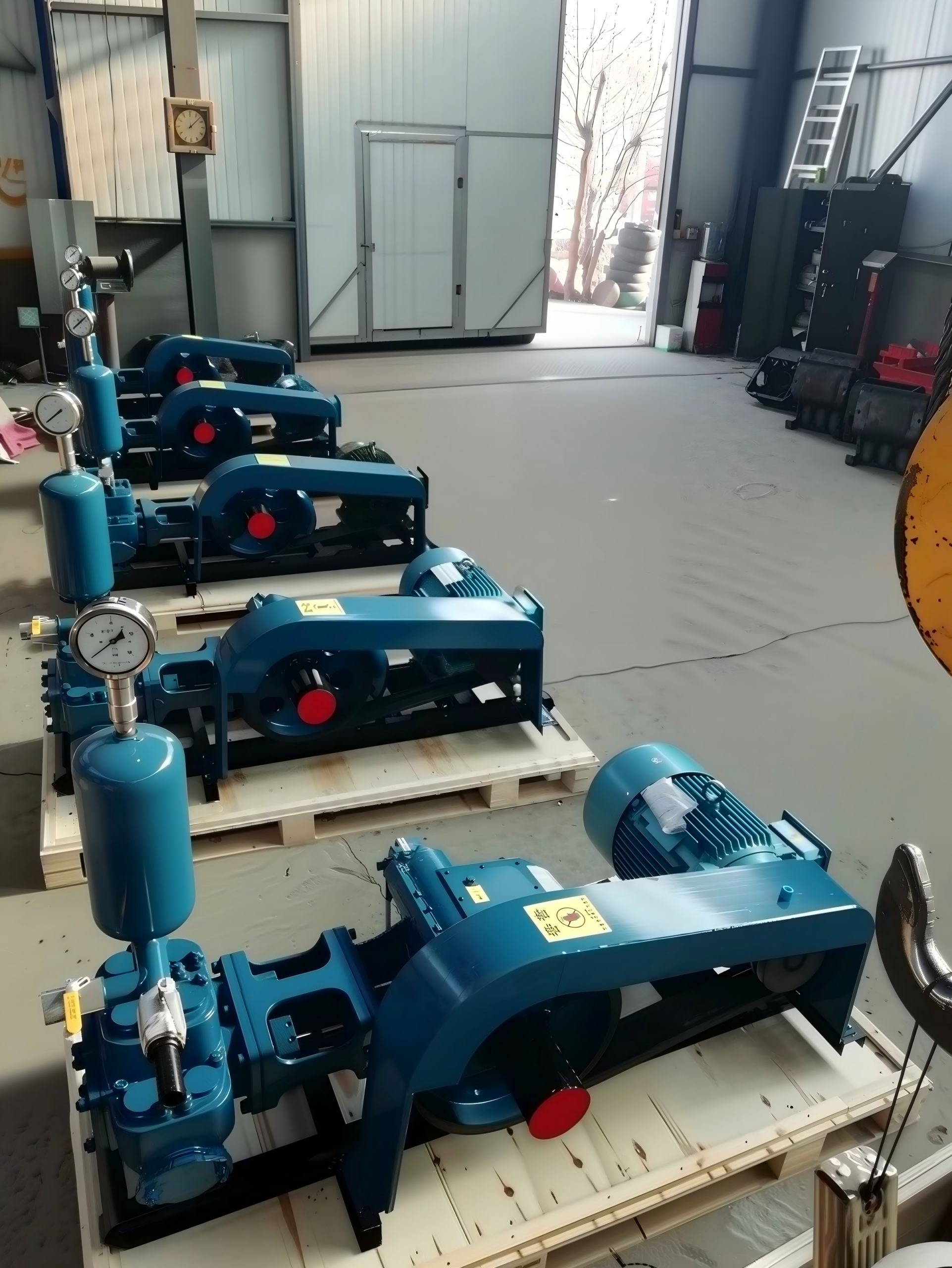

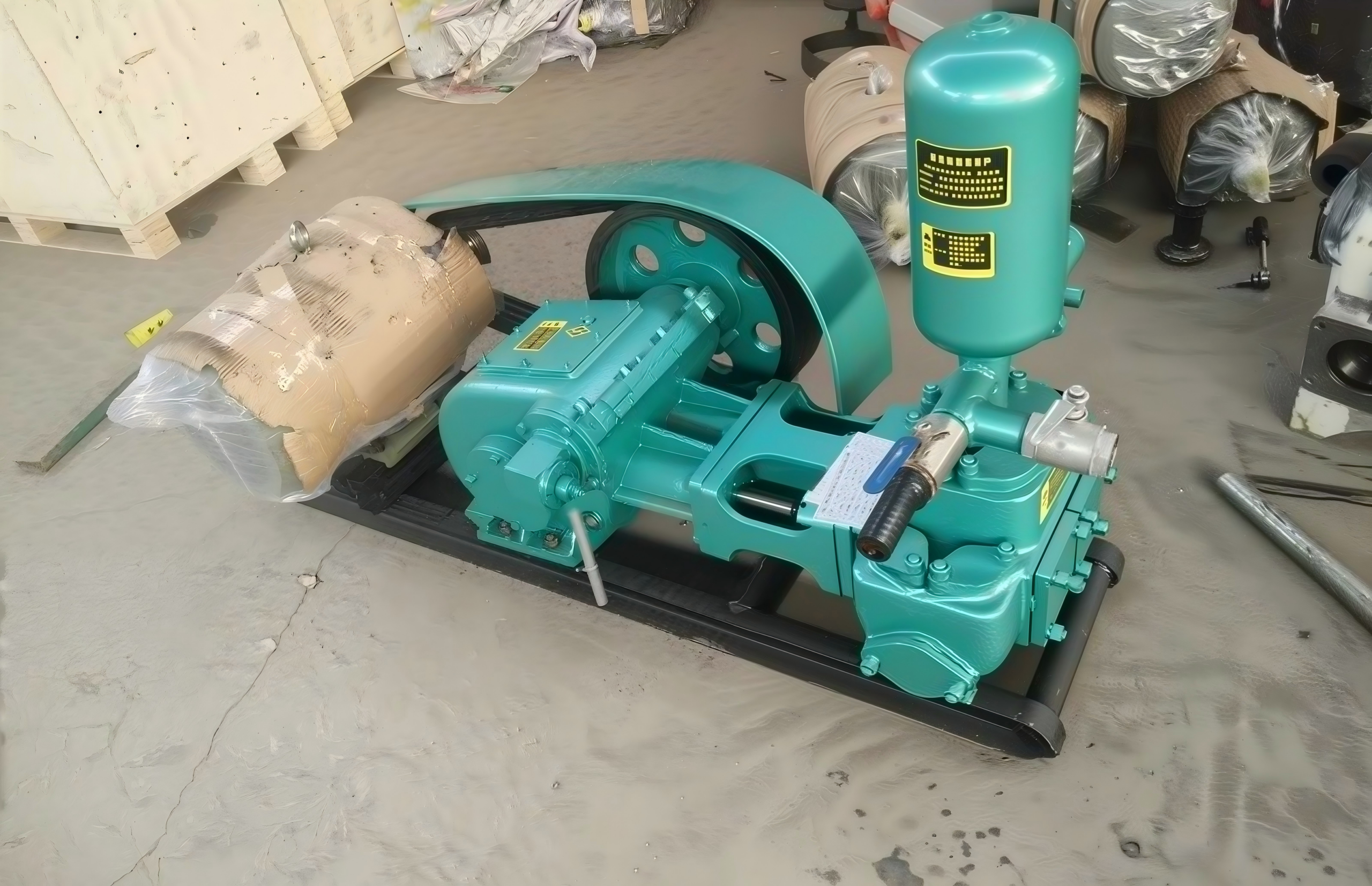

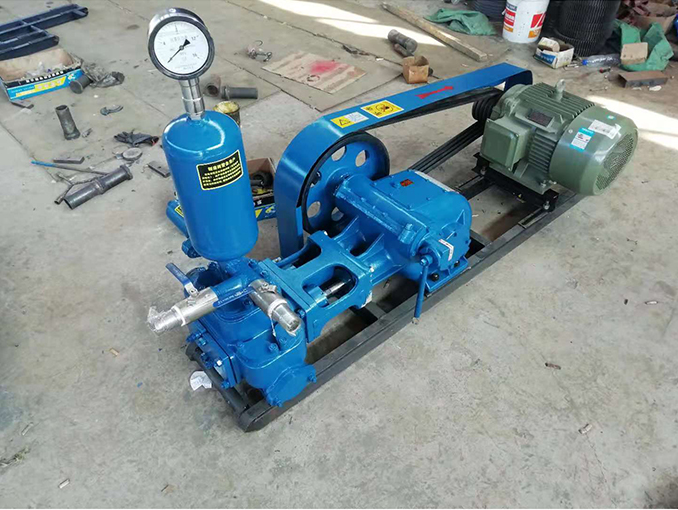

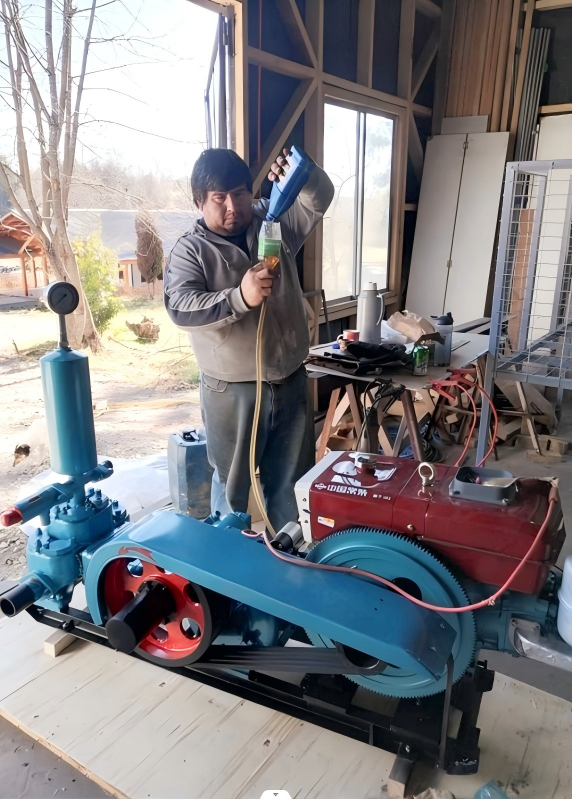

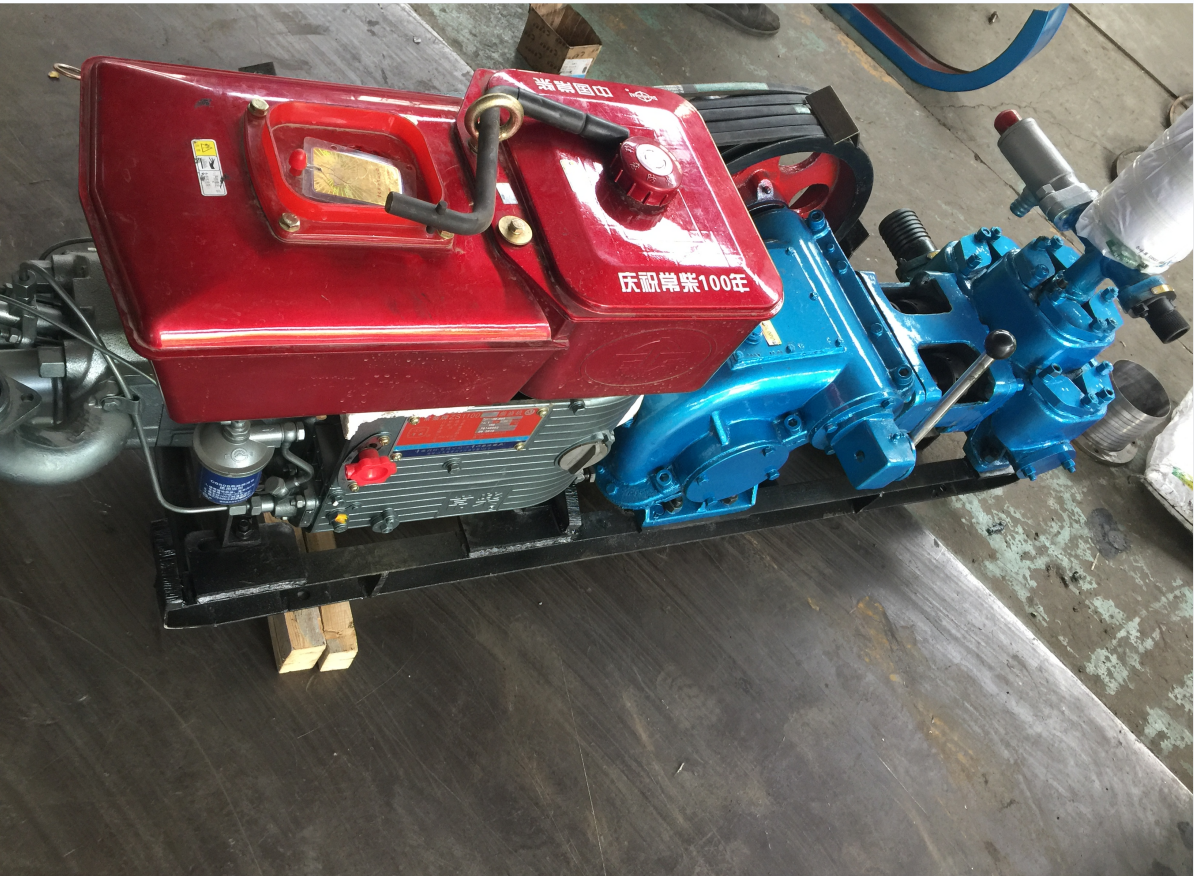

BW200 Mud Pump is a horizontal double‑cylinder double‑acting reciprocating piston pump specially built for field drilling projects. It provides two interchangeable power‑end configurations: crankshaft bush type and bearing type, allowing users to select per site maintenance conditions. Compact footprint and light weight make it easy to deploy on remote job sites. Perfect match for 200 m water‑well rigs and 600 m core‑drilling rigs. Beyond regular flushing fluid supply, it reliably copes with complicated karst cave formations and supports cement grout injection work.
General Introduction
BW200 Horizontal Double‑Cylinder Double‑Acting Reciprocating Piston Mud Pump
Designed as a multi‑purpose circulation pump for water‑well drilling and geological core drilling, the BW200 mud pump delivers stable flushing‑fluid circulation under variable underground geological conditions.
What sets this BW200 mud pump apart from generic counterparts is its dual‑option crankshaft design: you can choose either crankshaft bush version or bearing‑type power end according to your local spare‑parts availability and on‑site repair capability. This flexible configuration reduces downtime for remote drilling sites, especially in Africa and other field‑service areas.
Specification
| Model | BW200 |
| Type | horizontal type two cylinder double action pump |
| cylinder diameter | 80,65mm |
| piston stroke | 85mm |
| frequency of stroke | 145 times/min |
| flow rate | 200;125 l/min |
| working pressure | 40;60(kg/cm) |
| Transmission power | 11KW |
| diameter of discharge pipe | 37mm |
| diameter of discharge pipe | 65mm |
| Dimension（L×W×H) | 5950×2100×2600mm |
| Weight | 3000Kgs |
Core Advantages
- Compact & lightweight build: Small overall volume, convenient for transport and rig mounting, well‑suited for mobile drilling teams.
- Wide rig compatibility: Matches drilling rigs for 200 m water‑well drilling and 600 m geological core drilling.
- Strong geological adaptability: Works not only for normal rock layers but also for tricky complex karst cave strata with unstable borehole conditions.
- Multi‑medium capability: Besides delivering drilling flushing fluid, it can perform cement slurry infusion for borehole consolidation and grouting jobs.
Main Applications
- Water well drilling: circulate mud / water flushing fluid for 200m well rigs
- Geological core drilling: supply flushing medium for 600m coring operations
- Karst‑area drilling projects
- Borehole cement grout injection & consolidation
