About HY18S Hydraulic Water Well Drilling Machine

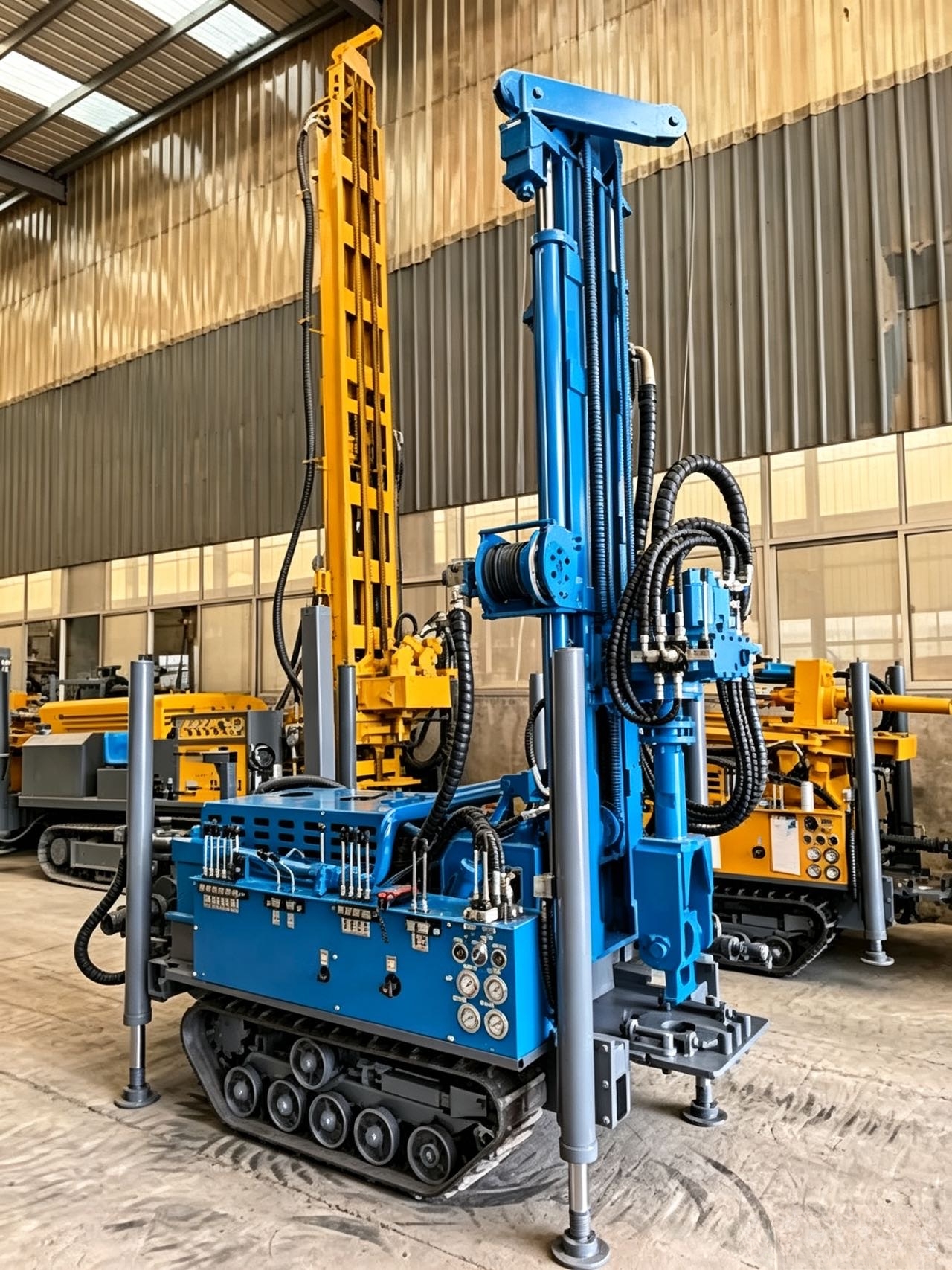

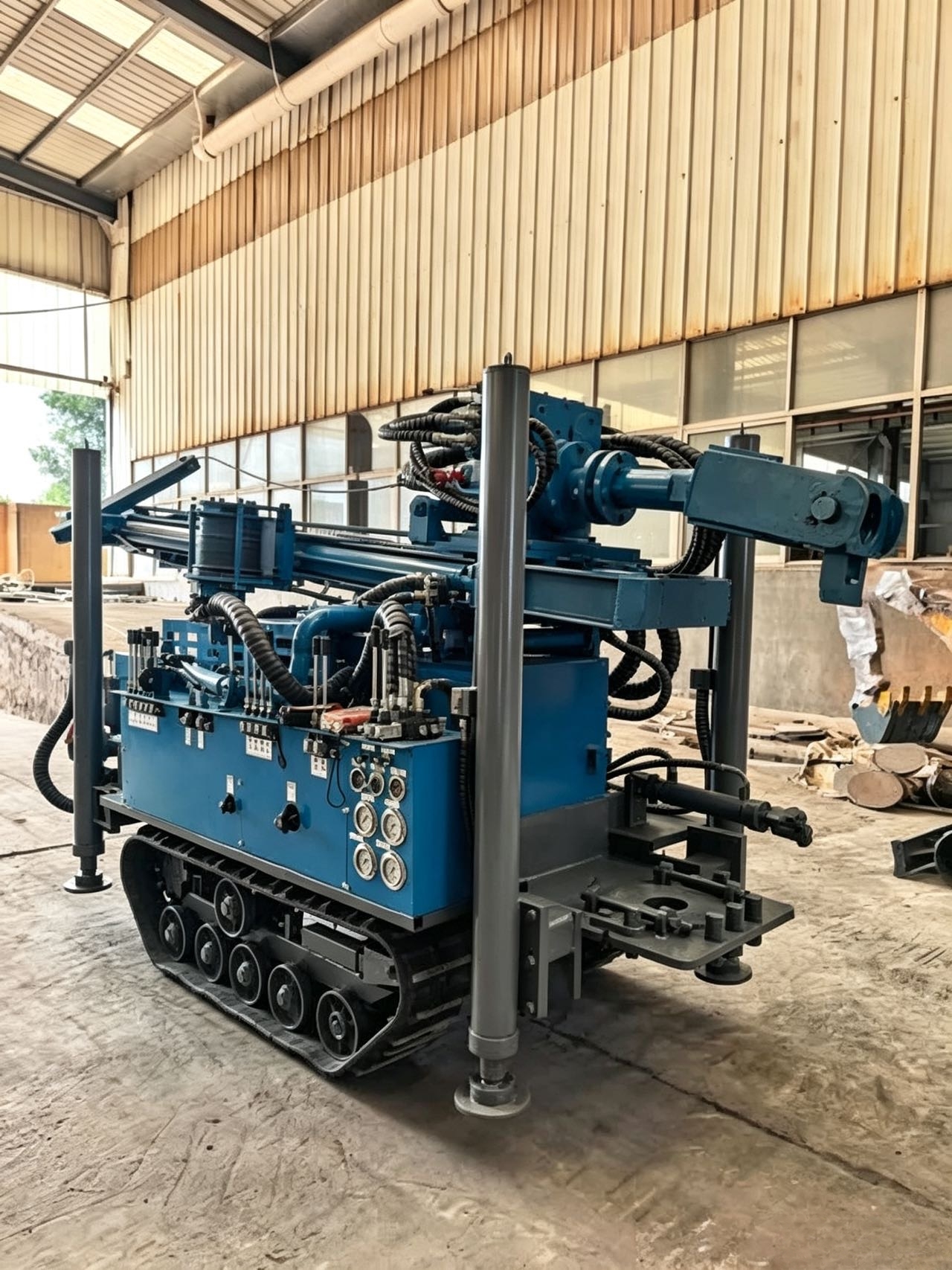

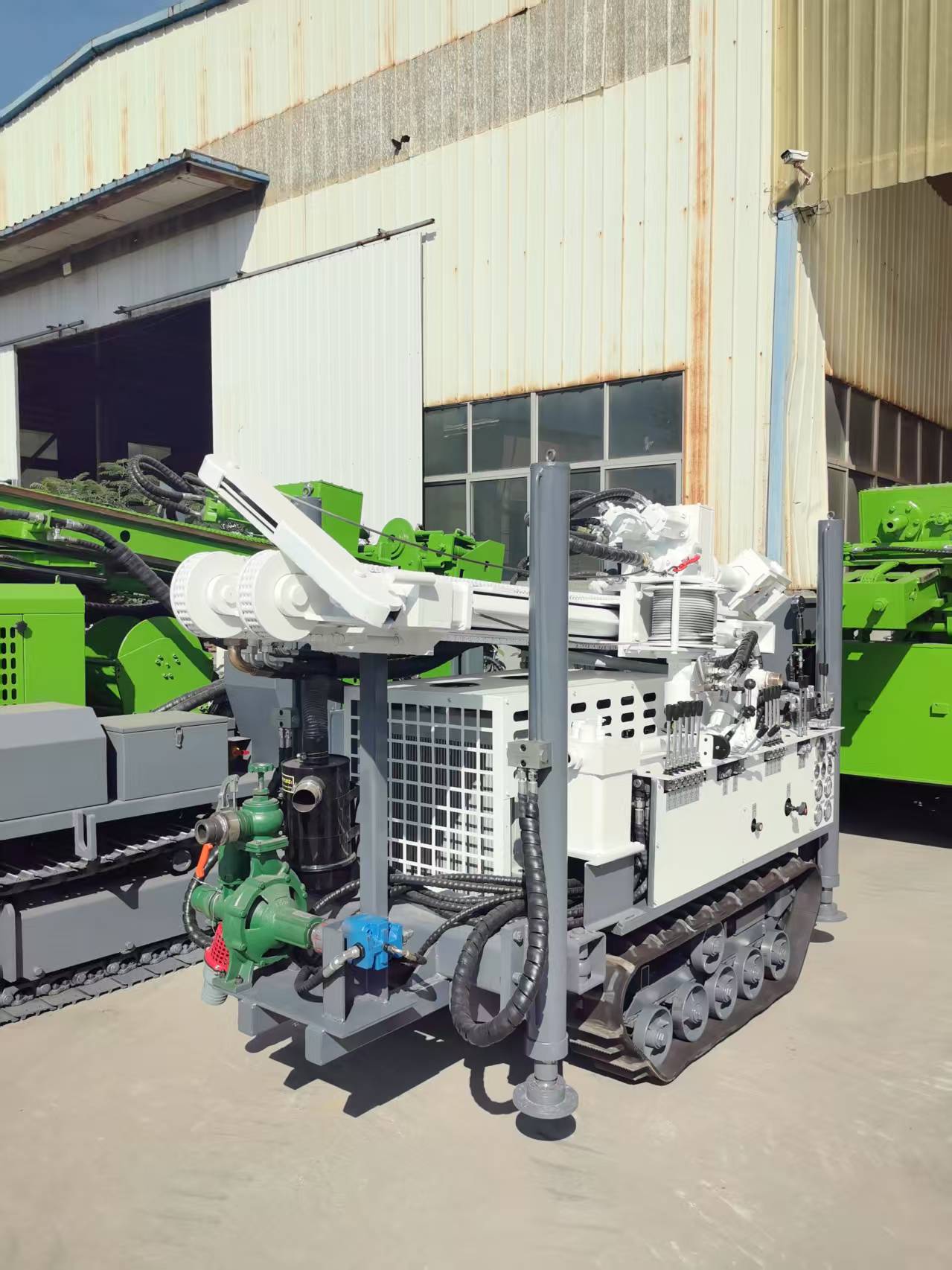

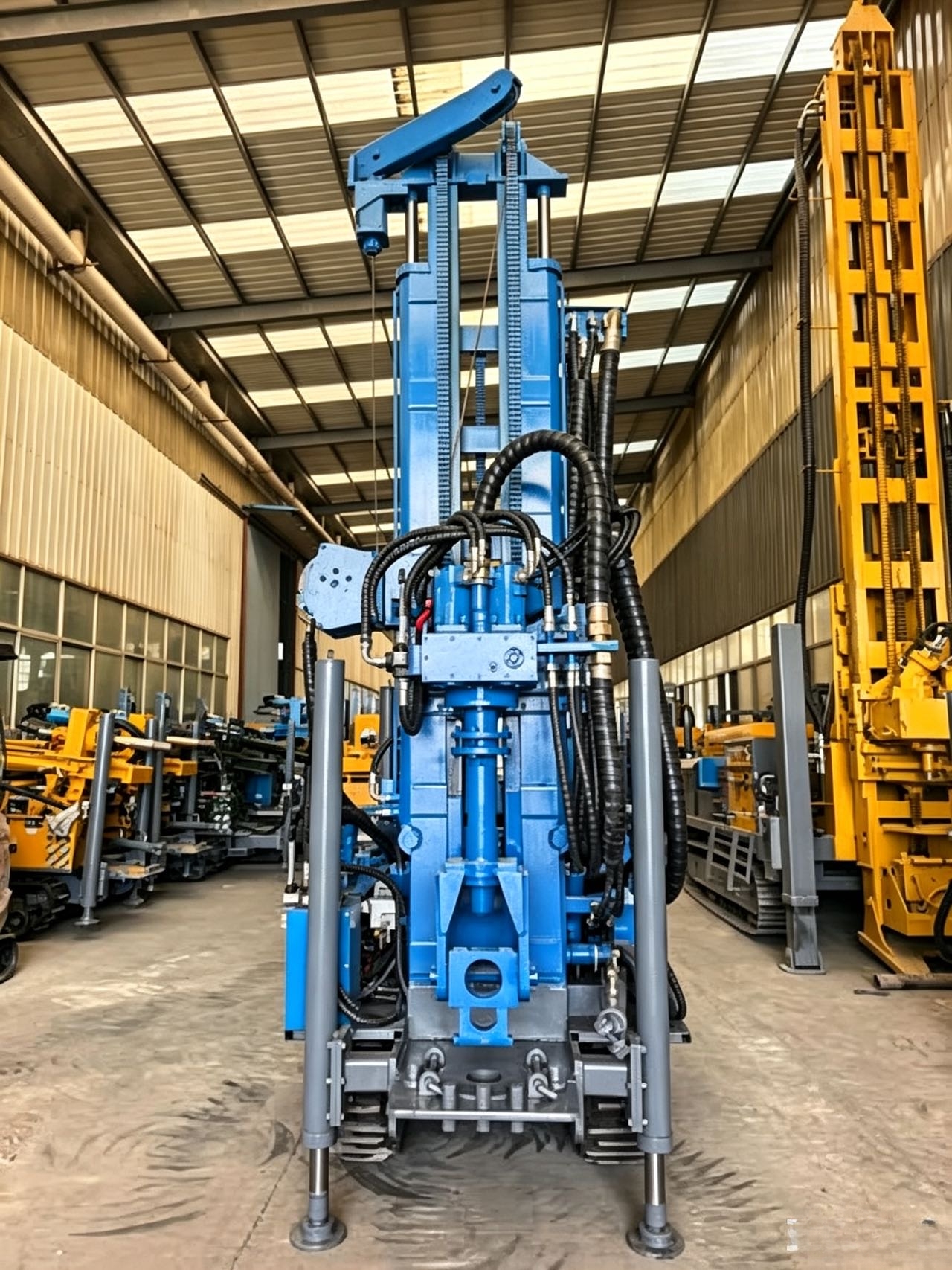

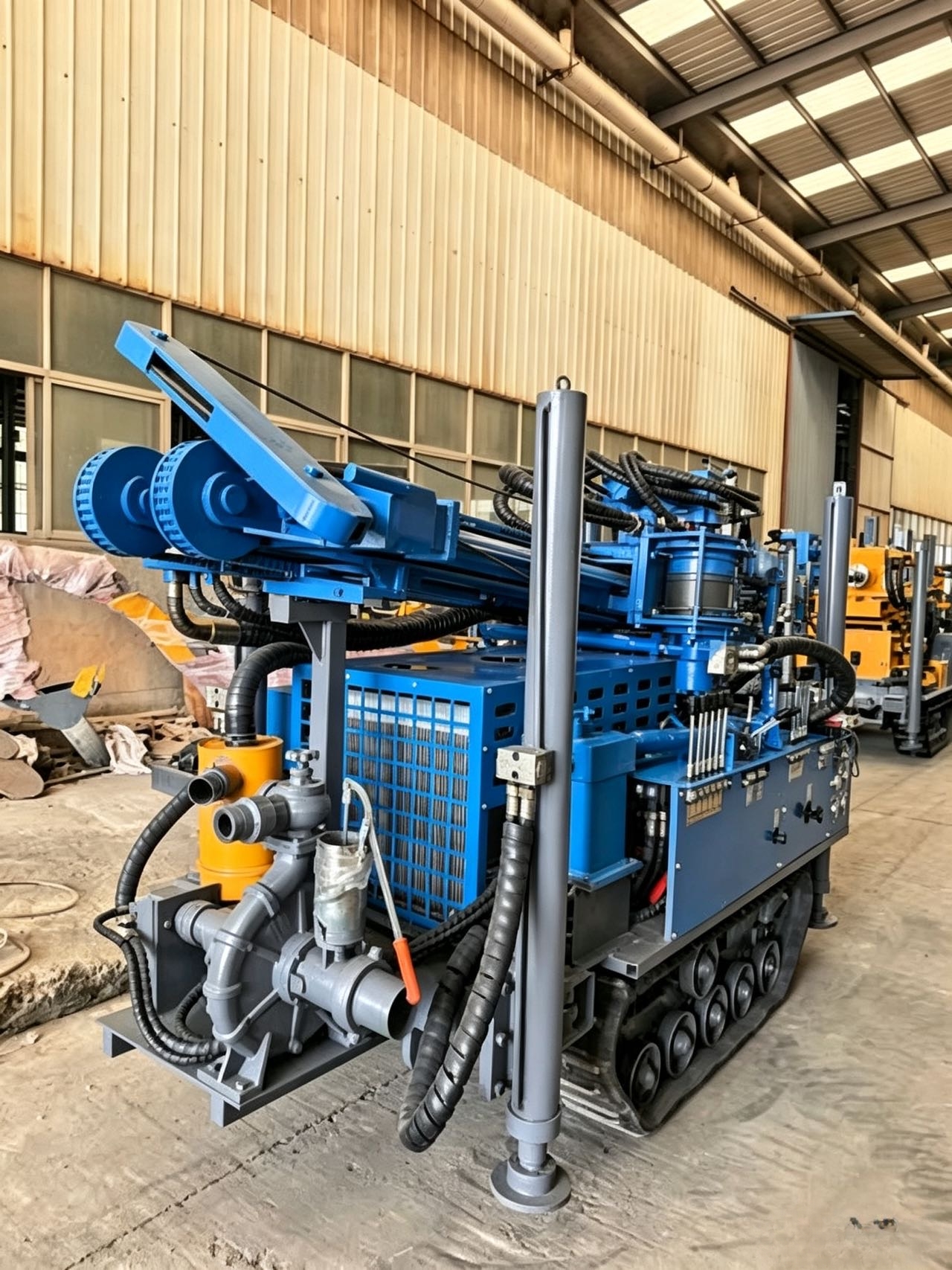

The HY180S 180m Small Rubber Crawler Water Well Drilling Rig is a compact, high‑performance drilling machine for various water well drilling projects.
Powered by a robust 77.3KW Yuchai diesel engine, this small water well drilling rig supports a maximum drilling depth of 180m. It delivers 4600N·m max rotary head torque and 15‑ton lifting capacity, and works with both mud pump and air compressor for dual‑mode drilling.
Designed with small size, light weight and compact structure, the rubber crawler chassis provides great mobility on rough terrain. Equipped with standard 2m drill rods, it enables fast and convenient loading and unloading of drill rods on site.
Featuring user‑friendly controls and a reliable hydraulic system, the HY180S water drilling rig ensures high drilling efficiency, lower operating costs and easy daily maintenance. Built with premium materials, this crawler water well drill rig offers stable performance and long service life for tough field drilling conditions.
Applications: water well drilling, bore well drilling, farm irrigation well drilling, borehole drilling, etc.
Ideal for small‑scale water well projects, the HY180S is your dependable compact water well drilling solution.
Advantages & Features
HY180S water well drilling rig features compact overall dimension, light‑weight design for convenient transportation and field relocation.
Compatible with both mud pump and air compressor. Supports both mud drilling and DTH pneumatic drilling for different ground conditions.
Powered by 77.3 KW Yuchai diesel engine. Max drilling depth reaches 180m, rotary head max torque 4600N·m, lifting capacity up to 15T.
Rubber crawler track chassis delivers great mobility, easily travels on rough, muddy and complex job‑site terrain without damaging ground surface.
Four hydraulic support outriggers keep the whole machine stable during drilling work, adapt to uneven ground conditions.
Optimized full‑hydraulic control system brings stable output, simple operation and low daily maintenance for the HY180S crawler drilling rig.
Perfect for water well, bore well and farm irrigation well drilling in yards, narrow sites and small‑scale well‑drilling projects.
Comes with standard 2‑meter drill rods. Simplifies drill rod loading and unloading, improves working efficiency for HY180S water well drilling rig.
Technical Parameters
| Bore diameter（hammer） | 90-300mm |
| Bore depth | 180m |
| Air consumption | 17-31m³/min |
| Air pressure | 1.7-2.5Mpa |
| Once-time advance length | 2.4m |
| Pipe diameter | 76mm/89mm |
| Pipe length | 2m |
| Push force | 4T |
| Lifting force | 15T |
| Max torque of rotary | 4000-4500Nm |
| Rotary speed | 45-65r/min |
| Mud Pump flow | 200-250L/min (option) |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension（L*W*H) | 2300×1200×2900MM |
| weight | 2700kg |
| Diesel engine | 77.4KW Yunnei engine |
For deeper drilling capacity, please check our HY200 water well drilling rig and HY260 machine. Match it with our BW200 mud pump for better mud circulation performance.
