Product Introdction

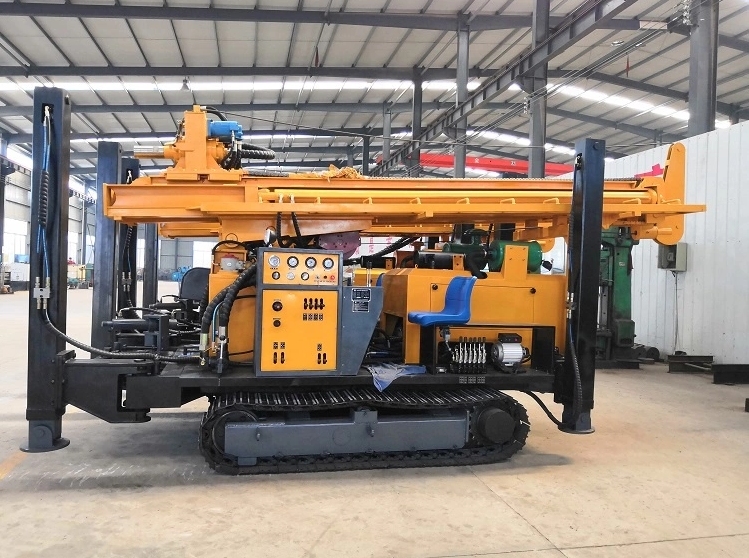

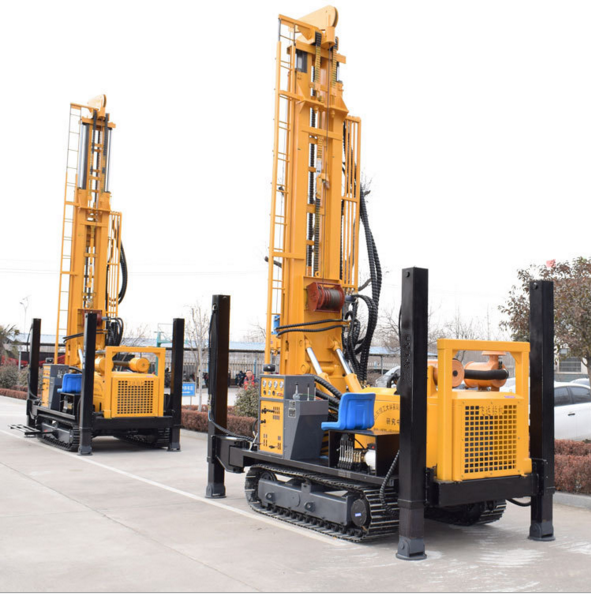

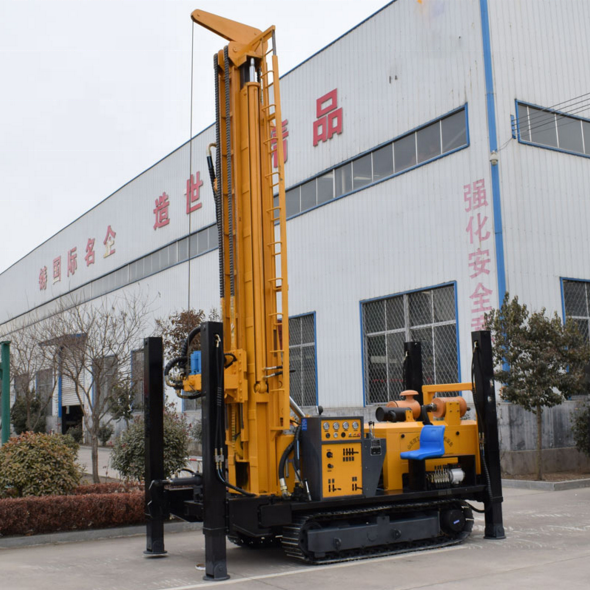

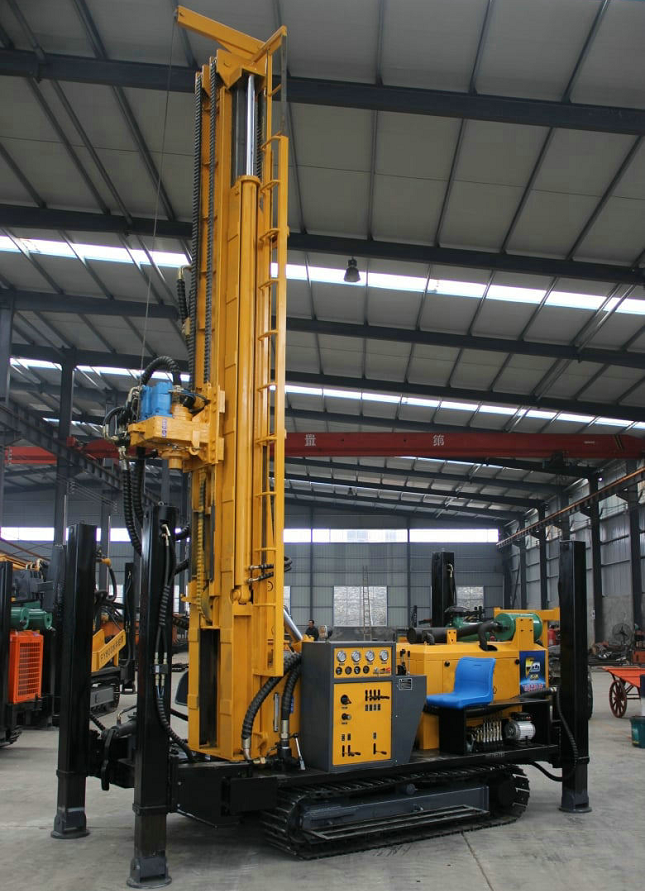

The HY800 water well drilling rig, also named HY800 Water Drilling Equipment, features full‑hydraulic control and top‑drive bit rotation, so it delivers extremely high drilling efficiency. In addition, we adopt a rational overall layout for this unit. Specifically, it supports tractor suspension or all‑terrain chassis transportation. As a result, operators gain excellent maneuverability and flexible operation even under harsh, difficult road conditions.
Apart from field adaptability, you can widely apply this water drilling equipment to hydrological well drilling, coalbed methane extraction, shallow shale gas exploitation and geothermal development. What is more, it also handles coal mine gas extraction and emergency rescue operations.
The top‑drive head spindle comes with a large bore diameter. For one thing, it supports multiple construction technologies including mud drilling, air drilling and air foam drilling. For another, it fully adapts to well‑drilling operations across diverse terrains and complex geological strata.
We build the HY800 water drilling equipment with premium‑grade materials. Meanwhile, we implement a compact, well‑thought‑out structural design. Accordingly, the unit brings higher working efficiency, low failure rates, outstanding durability and favorable economic returns. Ultimately, the machine achieves remarkable overall cost‑performance.
Technical Parameters
| Bore diameter（hammer） | 140-500mm |
| Bore depth | 800m |
| Air consumption | 17-42m³/min |
| Air pressure | 1.7-3.5Mpa |
| Pipe diameter | 102/108/114mm |
| Pipe length | 1.5m/2m/3m/6m |
| Lifting force | 30T |
| Lifting speed | 3m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 20m/min |
| Fast feeding speed | 40m/min |
| Max torque of rotary | 8850-13150Nm |
| Rotary speed | 45-140r/min |
| Hoist lifting capacity | 2T |
| Mud Pump flow | 850L/min (option) |
| High hydraulic leg | 1.7m |
| Feeding efficiency | 15-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension（L*W*H) | 6300×2300×2650mm |
| weight | 13000Kg |
| Diesel engine | 153KW Cummins engine |
Advantages & Features
1. The hydraulic system of this drilling machine reserves universal functional interfaces. Correspondingly, buyers can flexibly expand machine functions, so that they can satisfy varied process demands and customized construction requirements from different end‑users.

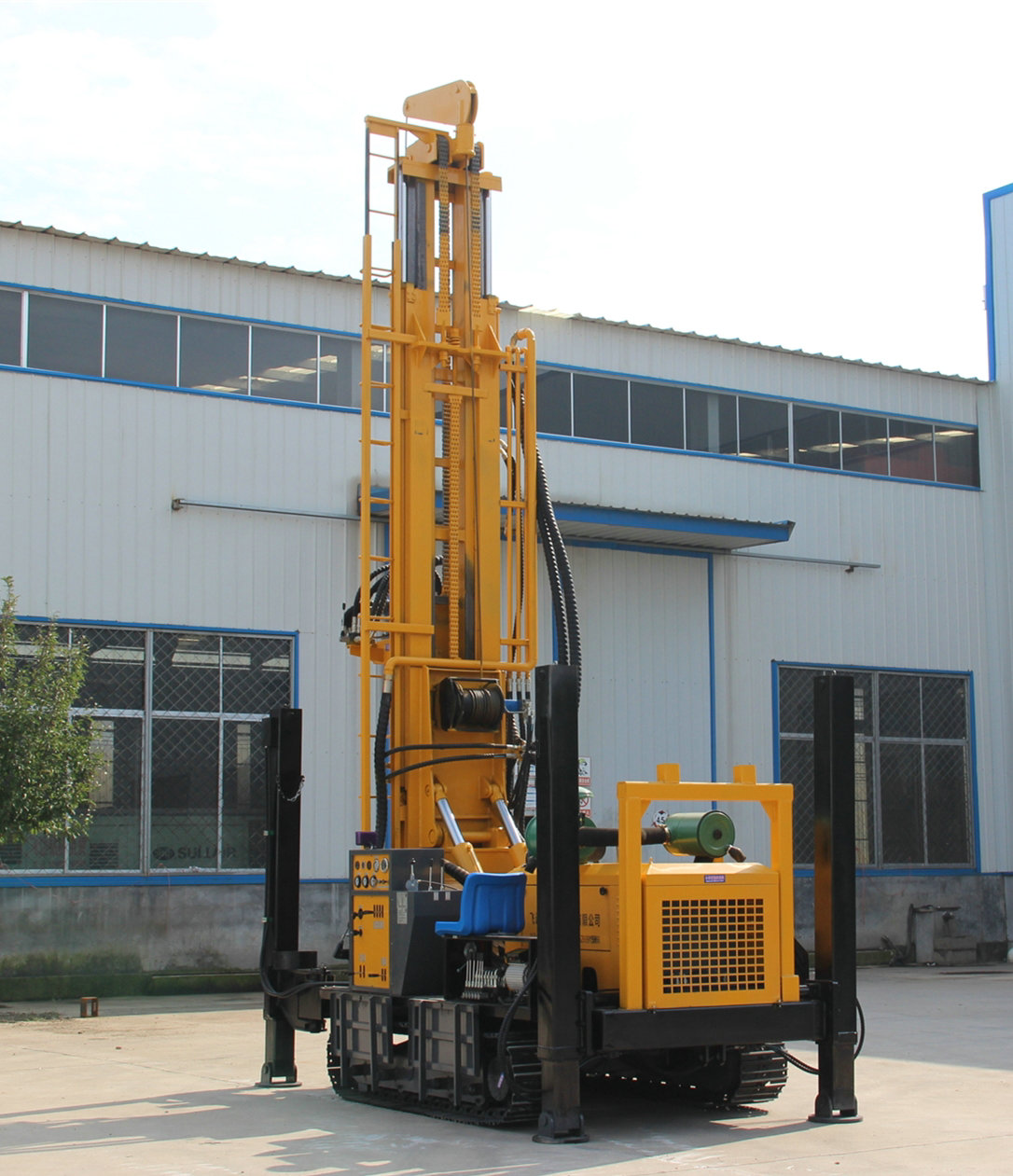

2. The RCF800C water drilling equipment is fitted with a high‑efficiency hydraulic transmission system. Thanks to this configuration, users can realize optimal power utilization. Furthermore, it effectively cuts overall power loss and lowers comprehensive drilling costs.
3. This water drilling equipment provides multiple forward speed stages, covering a speed range of 45‑140r/min alongside stable output torque of 8850‑13150N.m. On top of that, it includes two reverse speed gears. In this way, field crews can quickly respond to and resolve unexpected on‑site drilling accidents.
4. It employs a dual‑oil‑pump oil‑supply system. To elaborate, operators run single‑pump oil supply during regular drilling work, whereas they activate dual‑pump confluence oil supply while lifting drill pipes. With this setup, the design minimizes power loss and shortens auxiliary working time greatly.
5. It boasts advanced structures and a well‑balanced overall layout. Because of this design merit, users can complete daily inspection, routine maintenance and professional repair work far more conveniently.
6. It comes equipped with a heavy‑duty crawler chassis. Notably, its automatic outrigger cylinder delivers a 1.5‑meter stroke. Thus, you can relocate the equipment easily and transport it flexibly between different work sites.
Application of HY800 Water Well Drilling Rig
To start with, this deep well drilling rig fits multiple‑scenario drilling jobs. For instance, it works great for irrigation wells, residential domestic water wells, geothermal boreholes, hydrological exploration wells as well as industrial water supply projects.
This HY800 water well drilling rig is widely trusted by global clients for various deep‑drilling projects.

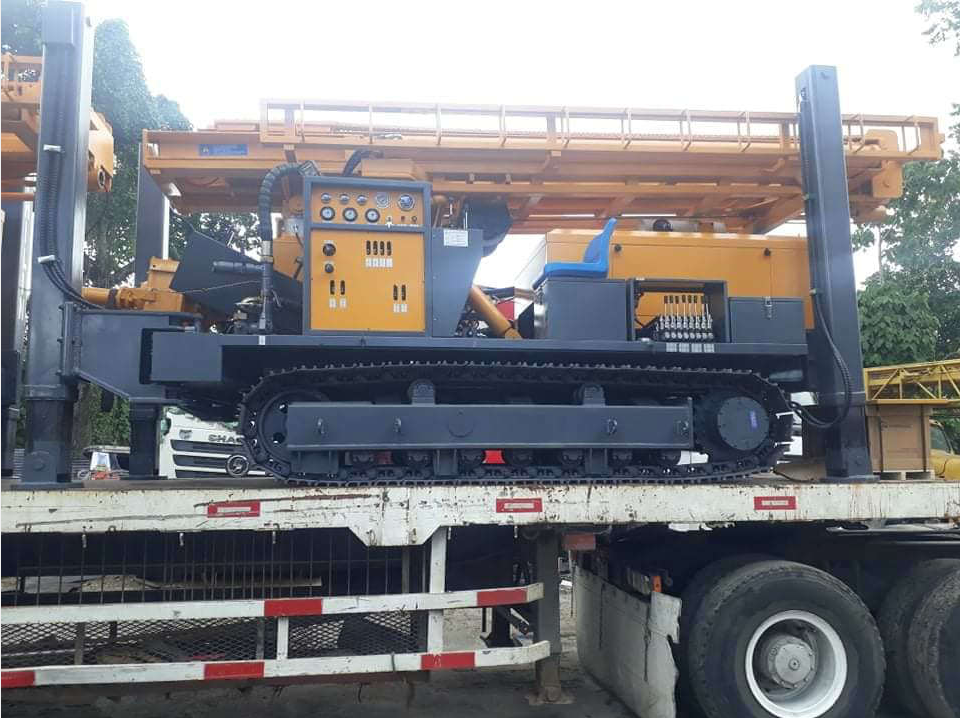

Delivery for HY800 Water Well Drilling Rig
In Worksite
