Product Introdction

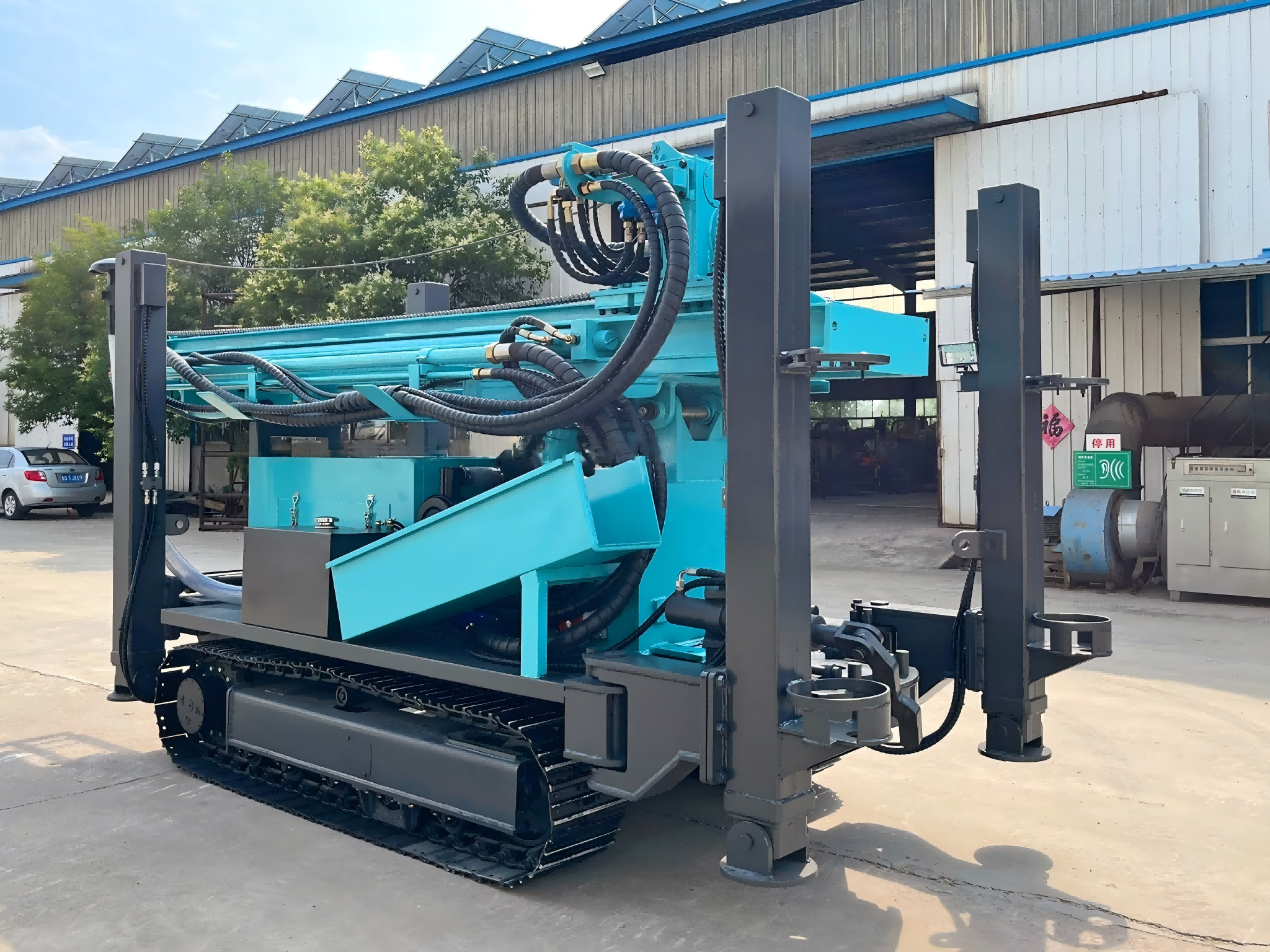

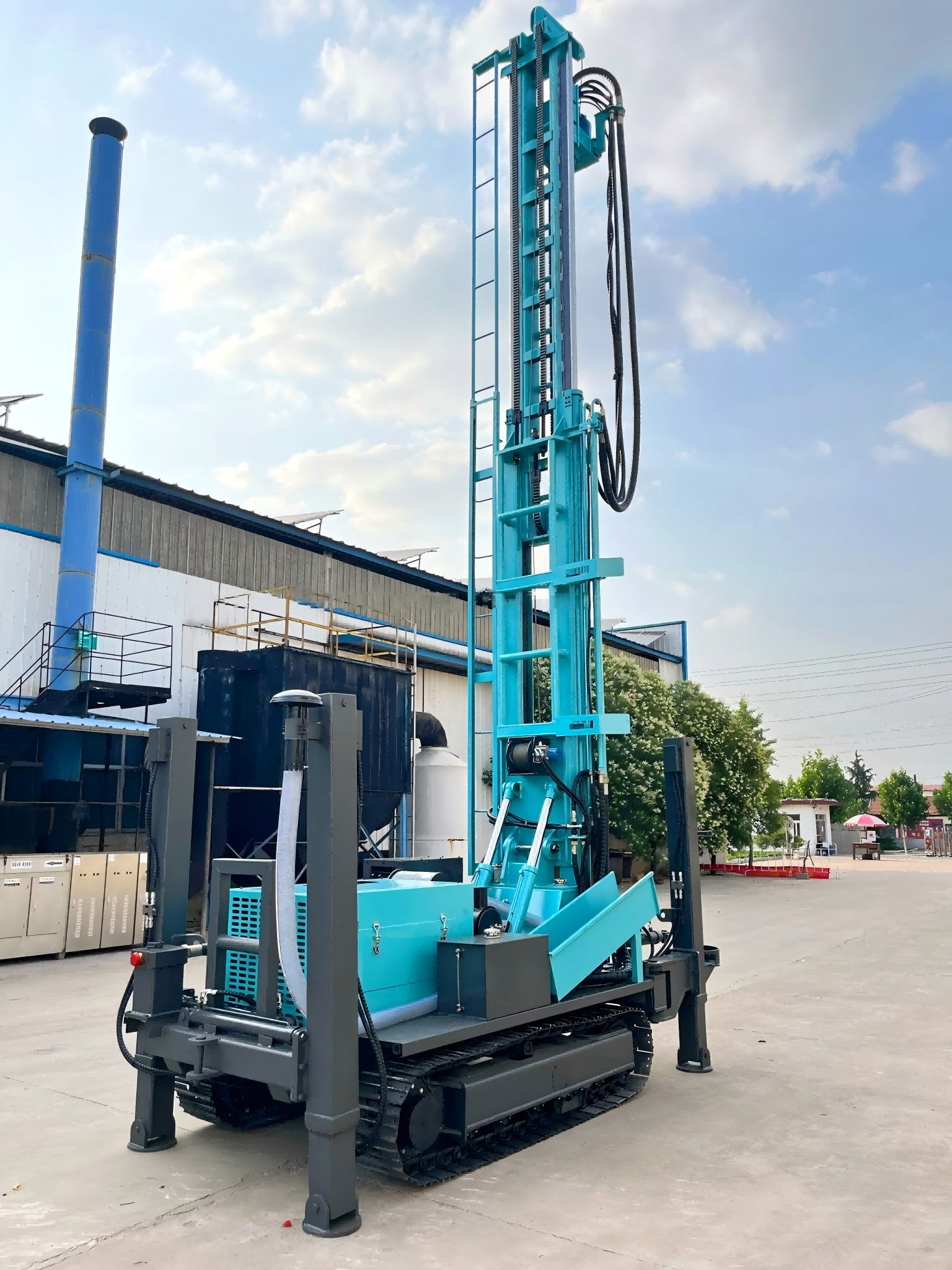

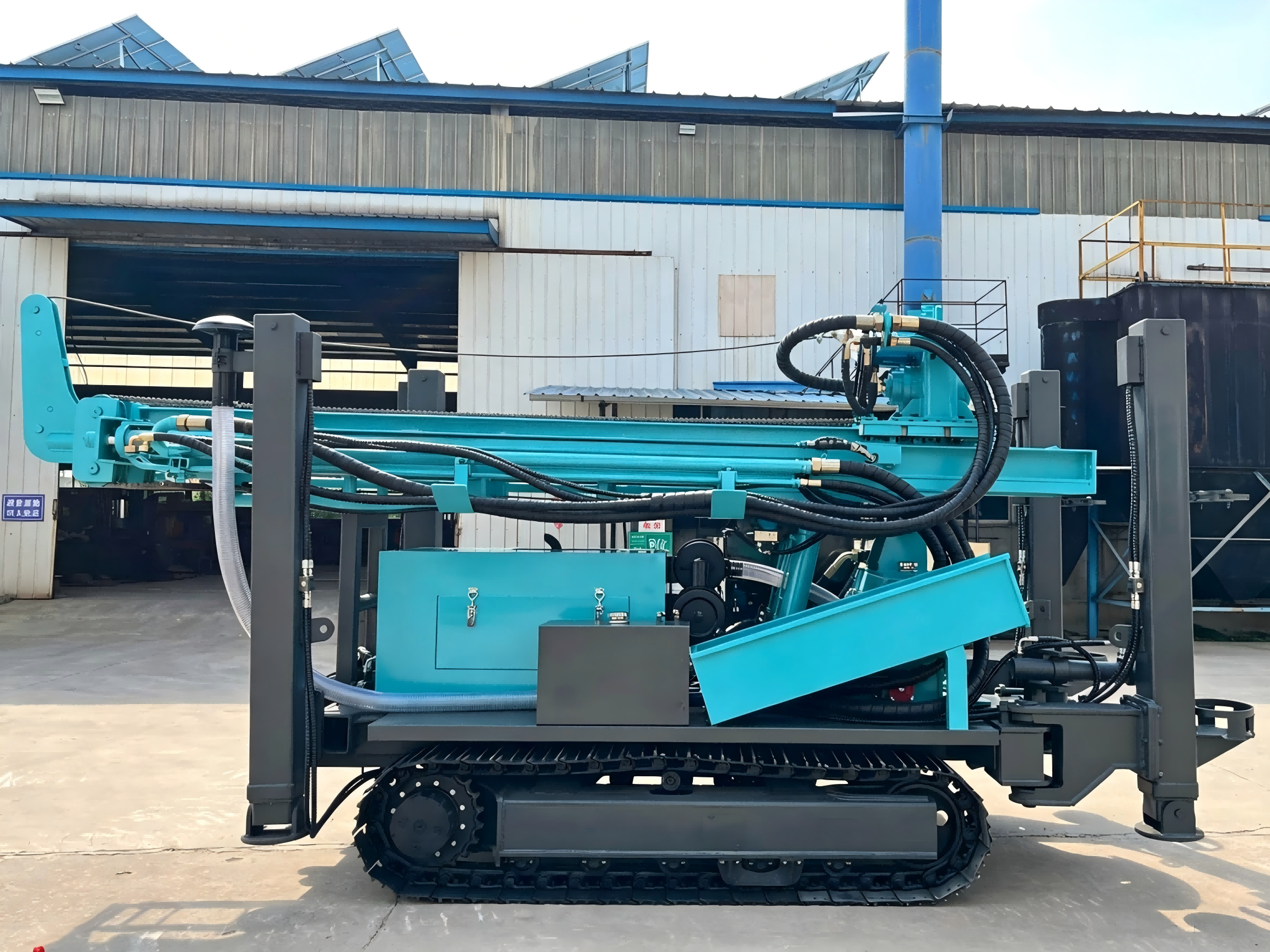

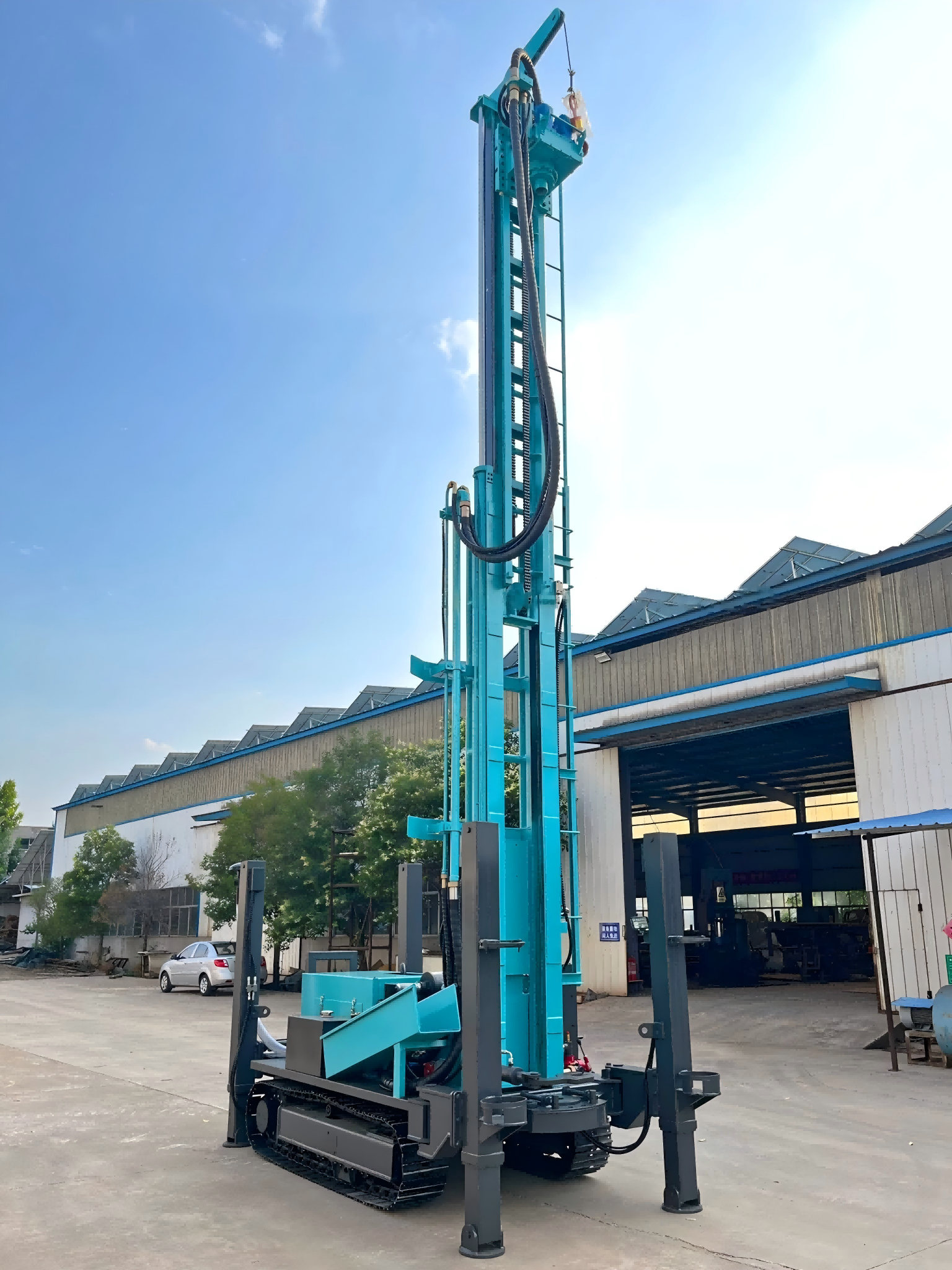

The HY450 crawler water well drilling rig is a high-power and high-efficiency drilling machine featuring full hydraulic control and top head drive design. Equipped with a matched mud pump and air compressor, it delivers stable and high drilling efficiency for various field projects. The powerful diesel engine provides a maximum torque of 9500N.m, perfectly adapting to deep well drilling in diverse soil and rock formations. Mounted on a robust crawler chassis, the rig achieves flexible movement across different terrains. Its premium hydraulic system enables smooth drilling angle adjustment, significantly improving overall operational convenience.
Application
The HY450 crawler water well drilling rig features a wide application range, covering deep well drilling, borehole drilling, farmland irrigation well drilling, geothermal well drilling, and geothermal air conditioning well projects. It adapts to various conventional and special drilling scenarios, meeting diverse medium and deep well construction needs for civil, agricultural and engineering fields.
Technical Parameters
| Bore diameter（hammer） | 140-350mm |
| Bore depth | 450m |
| Air consumption | 17-36m³/min |
| Air pressure | 1.7-3.0Mpa |
| Pipe diameter | 89mm/102mm/114mm |
| Pipe length | 1.5m/2m/3m/6m |
| Lifting force | 25T |
| Lifting speed | 3m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 30m/min |
| Fast feeding speed | 50m/min |
| Max torque of rotary | 7000-9500Nm |
| Rotary speed | 50-135r/min |
| Hoist lifting capacity | 2T |
| Mud Pump flow | 450L/min (option) |
| High hydraulic leg | 1.6m |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension（L*W*H) | 5950×2100×2600mm |
| weight | 9400Kg |
| Diesel engine | 103KW weichai engine 6 cylinders |
If you need an accurate quotation, customized configuration plan, product catalog, or operation videos, please provide the following information:
✔ Required drilling depth
✔ Borehole diameter
✔ Destination country / port
✔ Contact details (WhatsApp / WeChat / Email)
We will send you a detailed proposal and quotation within 1 hour!
Advantages & Features
Strong Power
The HY450 crawler water well drilling rig is equipped with a high-performance diesel engine to maintain stable, uninterrupted drilling efficiency. It outputs a maximum torque of 9500N.m, providing strong penetration capacity for deep well drilling in various soil layers and geological conditions.
Great Mobility
Built with a heavy-duty crawler chassis, the HY450 water well drilling rig offers excellent terrain mobility and flexible on-site relocation. The reliable hydraulic system supports smooth and precise drilling angle adjustment, greatly improving overall drilling flexibility and operational convenience.
Wide Range of Applications
This HY450 hydraulic drilling rig is adaptable to complex strata including clay, sandstone, and gravel layers. It covers versatile drilling scenarios for geological exploration, mining projects, agricultural irrigation, and various civil water well construction tasks.
Highly Efficient Performance
Adopting advanced full hydraulic technology, the HY450 crawler drilling rig delivers stable and powerful working performance for high-efficiency well drilling. Equipped with a professional hydraulic winch, it simplifies drill rod lifting and lowering operations, effectively accelerating the whole drilling process.
Comfortable & Safe Operation
The HY450 deep well drilling rig is designed with a standard emergency stop button, providing reliable safety protection for operators during long-time field work and ensuring a secure on-site working environment.
Easy Operation
Featuring a user-friendly and intuitive control system, the HY450 hydraulic well drilling rig simplifies daily drilling operations. It is equipped with an adjustable drilling angle gauge to guarantee precise drilling, suitable for both professional and novice operators.
Delivery
In Worksite
After service
1,24/7 service by chat online and phone.
2, Lifelong and free technical support.
3, Service overseas: if you need, we can dispatch an engineer to your door.
